Item Descriptions:

● 4K / 8K satellite broadcasting support

● Measurement channel:

· UHF (terrestrial digital broadcasting): ch.13 ~ 52

BS: ch.1 to 23 (odd channel)

· BS-L (BS left circular change): ch.2 to 24 (even channel)

CS (110 ° CS): ch.2 to 26 (even channel)

• CS-L (110 ° CS left hand circularly polarized wave): ch.1 to 25 (odd channel)

LTE (mobile phone service): 700 MHz band

● Input impedance: 75 Ω (F type terminal)

● Batteries used: AA batteries × 4

● Battery life (approximate) (time): about 14 alkaline batteries, about 18 NiMH batteries

● Power consumption (W):

· UHF (terrestrial digital broadcasting): about 0.8

· BS: About 0.8

· BS-L (BS left circular change): about 0.5

CS (110 ° CS): about 0.8

· CS-L (110 ° CS left hand circularly polarized wave): about 0.5

· LTE (mobile phone service): about 0.7

● Operating temperature Temperature (° C): -10 to + 40

● Card slot: microSD card slot (microSD · microSDHC compatible)

● Interface: USB terminal (microB terminal)

● Appearance dimension (mm): H218 × W91 × D28 (including input terminal)

● Weight (g): Approx. 360 (when using four AA Ni-MH batteries), this unit only about 240

● Accessory: 1 strap × 1, soft case (already attached to the instrument) × 1 piece, USB cable (50 cm, A connector - microB connector) × 1 microSD card (4 GB, already inserted in the instrument) × 1

Sheet

Features:

• Please enter model number Confirm this is compatible:
• It is possible to measure the level of left hand circularly polarized wave and simple C / N of BS digital · 110 ° CS digital which is scheduled to transmit 4 K · 8 K broadcasts.
• ※ C / N measurement becomes simple C / N which measures outside the band as a noise point.

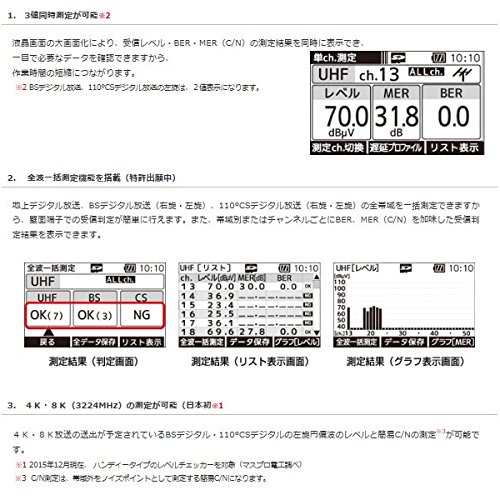

• ● By enlarging the screen of the liquid crystal screen, it is possible to display the measurement result of the reception level · BER · MER (C / N) at the same time, and you can confirm necessary data at a glance, which leads to shortening of working time.
• ※ Left turn of BS digital broadcasting, 110 ° CS digital broadcasting becomes binary display.
• ● Terrestrial digital broadcasting, BS · 110 ° CS digital broadcasting, one seg broadcasting broadcast switching can be done with one button.

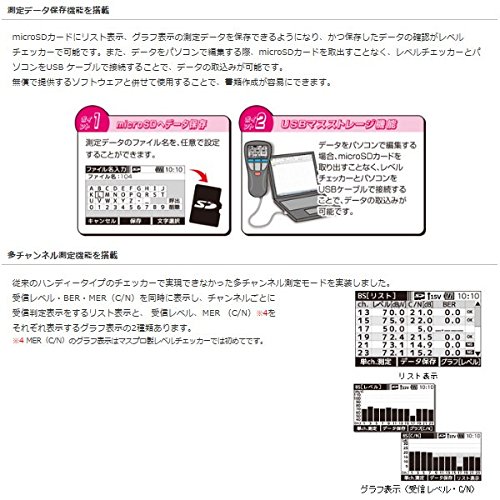

• Measurement data of list display and graph display can be saved on the microSD card, and the saved data can be checked with level checker.
• Also, when editing data with a personal computer, data can be imported by connecting the level checker and the personal computer with a USB cable without taking out the microSD card.
• By using this software together with free software, you can easily create documents.
• ● A multi-channel measurement mode that can not be realized with conventional handy type checkers has been implemented.
• There are two types of list display, which displays the reception level, BER, MER (C / N) at the same time, and displays the reception judgment display for each channel, and the graph display that displays the reception level and MER (C / N) respectively.
• * The graph display of MER (C / N) is the first time in Mass Pro Level Checker.

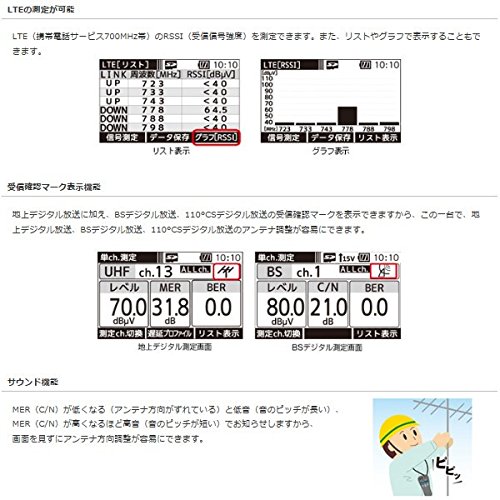

• It can measure RSSI (received signal strength) of LTE (cellular phone service 700 MHz band).
• It can also be displayed as a list or graph.
• ● In addition to terrestrial digital broadcasting, BS digital broadcasting, 110 ° CS digital broadcast reception confirmation mark can be displayed, so it is easy to adjust the antenna of terrestrial digital broadcasting, BS digital broadcasting, 110 ° CS digital broadcasting with this one unit
• I can do it.
• Because we will notify you as the MER (C / N) becomes lower (the antenna direction is shifted) and the bass (the pitch of the sound is long) and the MER (C / N) becomes higher the treble (the pitch of the sound is short)
• You can easily adjust the antenna direction without looking at the screen.

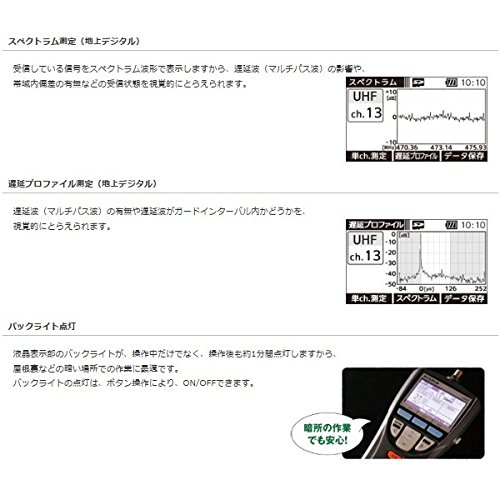

• ● The received signal is displayed as a spectrum waveform, so you can visually grasp the reception status such as the influence of delayed wave (multipath wave) and presence / absence of in-band deviation.
• ● You can visually grasp the presence or absence of a delayed wave (multipath wave) and whether the delayed wave is within the guard interval or not.
• Not only during the operation of the backlight of the liquid crystal display unit but also after the operation, it will light for about 1 minute, so it is ideal for work in a dark place such as the attic.
• The back light can be turned ON / OFF by button operation.

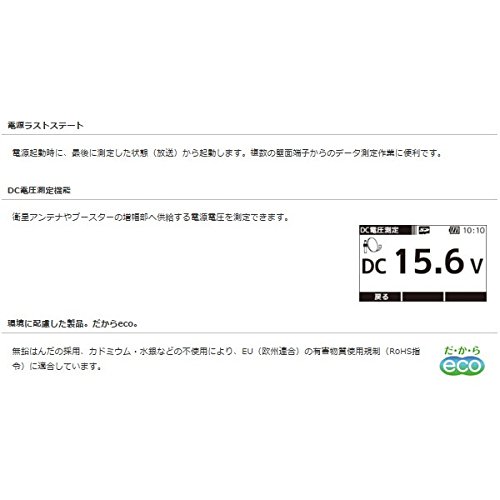

• ● When the power is turned on, it starts from the last measured state (broadcast).
• It is convenient for measuring data from multiple wall terminals.
• ● It can measure the power supply voltage to be supplied to the satellite antenna and booster amplification section.

Product information:

Shipping Weight: 458 g

Package Dimensions: 6.20 x 12.60 x 25.20 cm
