Product Description
Description:

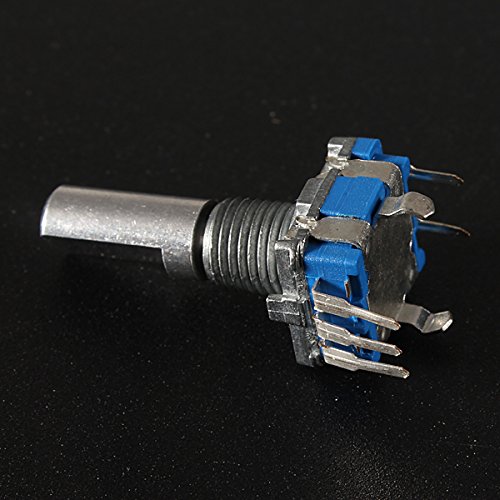

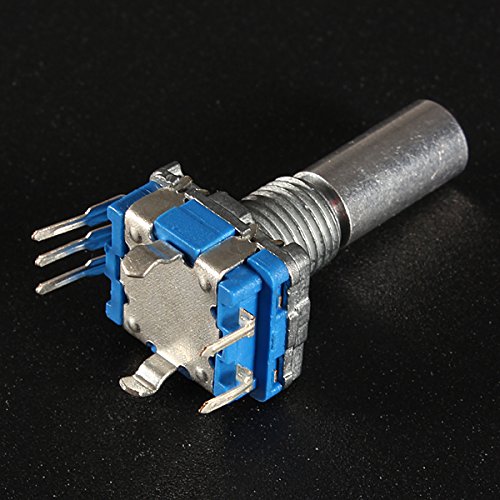

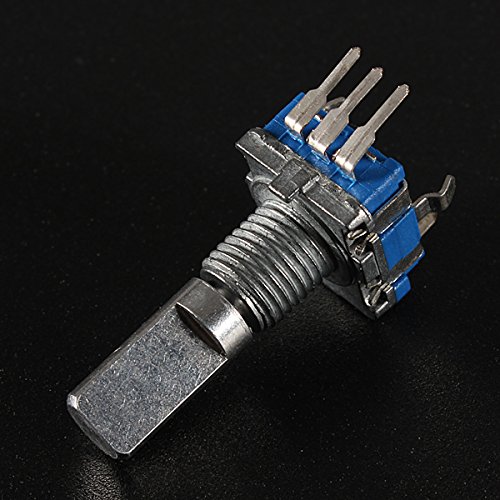

15mm Rotary Encoder Switch with Keyswitch with 2 bit gray scale
Specification:
Rotary Shaft Length:Approx. 15mm
Shaft Diameter:Approx. 6mm
Size (L x W):Approx. 15 x 11mm
Output:2-bit gray code
Closed Circuit Resistance:3 ohms maximums
Max. Rating:10 mA @ 5 VDC
Operating Temperature Range:-30 to 70 degrees celsius
Storage Temperature Range:-40 to 85 degrees celsius
Rotational Life:30000 cycles minimum
Switch Life:20000 cycles minimum

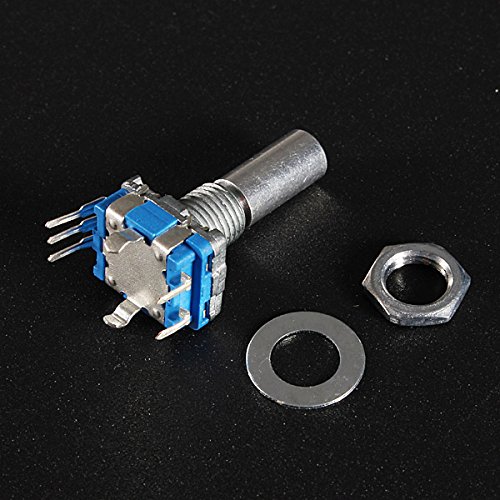

Package Included:
1 x encoder switch
1 x nut
1 x gasket
