Product Description

Remove clutter in your installations, replace up to 6 individual power over ethernet injectors with this single gigabit POE module.

Wall Mounted PoE injector

Extend power to 328 ft or 100 meters

This device offers
* 10/100/1000 operation
* 6 shielded RJ45 jacks with Data + Power out to connect to your device
* power per port limited to 650 per pair = 1300 ma
* 6 shielded RJ45 jacks with Data in - connect to your switch
* dual 2.1mm x 5.5mm DC power jacks
* use for redundancy or increased power

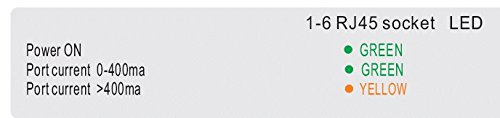

* LED power status
* we offer 7 different power supply options

Used to provide PoE power to:
* IP phones like Polycom, Cisco, Yealink, Grandstream, Shoretel
* WiFi Access points
* IP Cameras
* 802.3af devices with 48 volt power supply
* 802.3at devices with 56 volt power supply

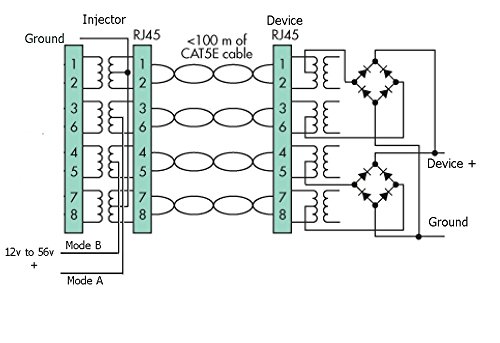

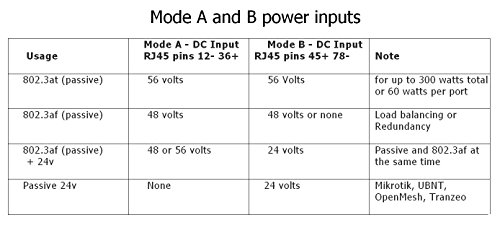

These devices share power and data on either 2 or 4 pairs in the ethernet cable. Mode A DC input provides power on the data lines 1 and 2, and 3 and 6. Mode B DC input provides power on the data lines 4 and 5, and 7 and 8. Use both for 802.3at operation (jumper cable included). All devices receive the same voltage - choose a power supply with more available power than the total all devices. Check device specs for power needs, it is under 4 watts for most Phones, other devices need more

We offer 24v, 48v and 56v supplies, with 60 and 120 watt version, also 12 port versions.

Full details and data sheet at http://wifiqos.com/


Feature

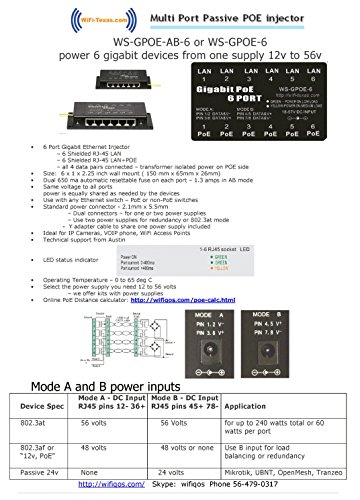

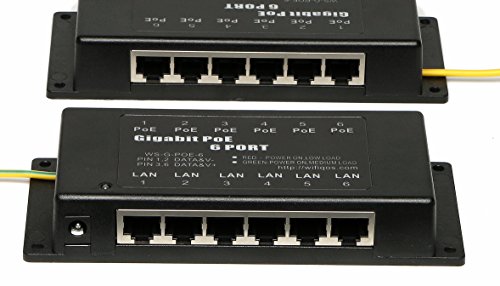

Gigabit Power over Ethernet injector, wall mount, 6 pairs of ports, shielded RJ45, with ground lead.
For IP Phones, Access Points and IP Cameras that use gigabit Ethernet, also Mikrotik
Power 802.3af or 802.3at devices (power on all the time) - power shared between all ports
see also our WiFi-Texas products including power supplies
Tech support - ask if you have any questions 512 479 0317
Brand : WiFi-Texas
Item model num : WS-GPOE-6
MPN(PartNumber) : WS-GPOE-6
EAN : 0752423137893
