Item Descriptions:

Product introduction

Digital single lens reflex E-3 1 Focusing speed World's fastest: Using the zoom lens ED 12 - 60 mm realizes the world's fastest focusing speed 211 points All points Twin crossed auto focus sensor adopted: High ranging accuracy / speed

· Followability is realized.

3 Hand-shake correction mechanism inside the body: It exhibits a correction effect of a maximum of five shutter speeds.

Furthermore, when using the supersonic wake drive lens, it realizes even more highly responsive response.

4 With live view function: By combining 2 axis movable liquid crystal monitor and live view, we provide images captured with innovative lines of sight not seen in the past.

5 High refractive index glass

From Amazon

World's fastest AF by 11 point all-point twin cross sensor *

The 11 point AF sensor mounted on the "E - 3" is an all - point cross type, and consists of twin cross sensors of 2 lines each in order to improve AF accuracy.

By adopting the cross formula, it is possible to accurately detect both subjects in vertical and horizontal directions, realizing AF not affected by subjects.

Also, by making the configuration of each two lines out of phase (staggered arrangement), AF accuracy is greatly improved and AF performance of low luminance is also improved.

The positions of the 11 AF points are determined based on the analysis result on the position of the main subject statistically obtained from enormous photographic data and the hearing of the professional photographer.

With the adoption of this sensor, the dedicated AF engine which enabled simultaneous computation of all points, and the latest AF algorithm, the ranging speed, the supplement of the subject, the tracking performance have been greatly improved, achieving the world's fastest AF speed * 1

.

In addition, by introducing original pixel addition technology, we have realized range finding luminance range of -2 to 19 EV, and high AF accuracy is secured even in dark scenes.

* For digital single lens reflex cameras that have been released as of October 17, 2007.

According to Olympus measurement conditions in the tele end (equivalent to 120 mm in terms of 35 mm format) when ZUIKO DIGITAL ED 12 - 60 mm f / 2.8 - 4.0 SWD lens is mounted on E - 3.

High speed continuous shooting with 5 frames per second and high speed performance with 1/8000 second high speed shutter

In addition to installing a high-speed LiveMOS sensor that speeds up the reading speed, the data from the image processing engine TruePic III, which drastically shortens processing time, the IS engine dedicated to camera shake correction, and the AF sensor, are installed at locations requiring large amounts of data processing

Three dedicated engines of high-speed AF engine are installed to achieve high-speed performance by simultaneously processing a large amount of data in parallel.

Even in the driving mechanism, a high-speed and high-precision mechanical shutter, a mirror drive mechanism that improves accuracy and reliability by reducing transmission loss by optimizing the structure, a mirror box that uses a highly rigid resin material containing carbon

High speed continuous shooting and high shutter speed are realized by such as.

High speed continuous shooting performance realized 5 frames per second.

Shutter speed is up to 1/8000 sec, and X synchro 1/250 sec.

When using the external flash "FL-50R" or "FL-36R", it also supports 1/8000 second super FP flash, and it is effective in daytime sync shooting.

Shake correction mechanism in the body realizing the correction effect * of up to 5 EV steps *

"E-3" is equipped with Olympus's proprietary ultrasonic drive system SWD (supersonic wave drive) imaging sensor shift type camera shake compensation mechanism, so even in dark scenes and telephoto shots, camera shake

Suppressed handheld shooting is possible.

Based on shake information from a gyro sensor that detects camera shake with high precision, a newly developed camera shake control algorithm instantaneously and accurately moves the imaging sensor unit with an ultrasonic drive element excellent in responsiveness and controllability

, Achieving a correction effect of up to 5 EV * steps.

In addition, since the camera shake compensation of "E-3" is a body built-in type, all lenses conforming to the "Four Thirds System Standard" including the ZUIKO DIGITAL lens designed for digital only from macro, fisheye to super telephoto

, The camera shake can be corrected without impairing the optical performance.

* According to Olympus measurement standard.

Further evolved about 10.1 million pixels high speed Live MOS sensor

The newly developed approximately 10.1 megapixel high speed Live MOS sensor faithfully reproduces the details of the subject with high resolution, rich gradation, natural and vivid color reproduction.

Based on proven MOS signal amplification technology, we drastically improve materials and processing technology to simplify the sensor structure and integrate it on a flexible substrate, thereby greatly reducing signal transmission and wiring resistance

Reduce power consumption, heat generation, noise Imaging unit with less noise.

With this low power consumption, photographing by live view is always possible.

.

In addition, the sensor newly installed this time has increased the reading speed, and it corresponds to high-speed continuous shooting of 5 frames per second.

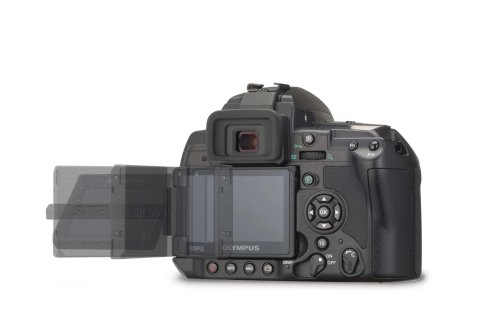

Free angle · Live view function which widely shoots the shooting area

Live view is a function that allows you to shoot while watching the images displayed on the rear LCD monitor.

The liquid crystal monitor adopts a high definition hyper crystal liquid crystal monitor of 2.5 type 230,000 dots, upper and lower left and right viewing angles of 176 degrees, and is a two axis movable structure which freely rotates vertically and sideways.

You can shoot without taking an unreasonable posture even at high angle or low angle that can not see the optical viewfinder.

Even in portrait shooting, by not hiding the photographer's line of sight with the camera, it is possible to capture a relaxed natural expression that does not make the camera conscious of the opponent.

Also, during live view shooting, you can freely select the part you want to focus on and enlarge it to 5 times, 7 times, 10 times on the LCD monitor.

Exciting power when you want to finely focus on macro shooting, studio shooting, etc. Detecting the exposure compensation and white balance correction effect while checking with live view You can shoot live view correction effect function more

Support shooting faithful to the intention of the person.

When the gradation setting is set to auto, shoot with the new technology "shadow · adjustment technology" while keeping the brightness of the background as it is, brightly adjusting the part where the black collapse will occur, confirming the correction effect

be able to.

In the preview of the optical viewfinder, the entire screen becomes dark when narrowing down, but if the live preview function allows you to check the depth of field on the LCD monitor, you can check the depth of field without changing the brightness of the screen

it can.

Moreover, it is possible to select and display golden split display, grid display, scale display on the LCD monitor without replacing the focusing screen.

Live view shooting while displaying the histogram is also possible.

Furthermore, the illuminance sensor built in the upper left of the LCD monitor detects the surrounding brightness at the time of shooting and automatically adjusts the brightness of the LCD monitor.

In bright places such as coasts in fine weather, increase brightness and contrast to enhance visibility, and in dark places such as nighttime, adjust the brightness to reduce glare on the screen.

Viewing factor 100%.

A large optical finder with a finder magnification of 1.15 times

A large and high precision penta prism adopting a high refractive index glass, an optical viewfinder adopting a glass lens also for a loupe system has a field of view ratio of 100%.

Provide the photographer with a large, bright and comfortable "look" with a finder magnification of 1.15 times.

Silver coating with high reflectance to the penta prism, coating also on all loupe lens surfaces, minimizing the loss of light ensures sufficient brightness and high resolving power, the finer parts

It also improves visibility.

Moreover, Neo Lumi micro mat is adopted as a focusing screen.

Bright and focused mountains are easy to grasp, making it easy to focus in manual focus.

A dust reduction system that enables reliable dust removal

Dust and dust entering the inside of the body at the time of lens replacement, friction powder generated within the body due to opening and closing of the shutter adhere to the low pass filter and the image sensor, it will appear in the image and ruin the precious photograph.

Olympus focused on solving the problem of garbage that can not be avoided for digital single lens reflex, Olympus has focused on since the development of a lens interchangeable digital single lens reflex camera from the beginning.

SSWF (supersonic wave filter) installed in front of the image sensor operates when the camera is started and when the live view is used, the dust adhered to the image sensor is dropped off by ultrasonic vibration, and the dust sucked part

Catch on.

Dust that can not be removed by just removing the static electricity by just rocking the image sensor up and down can also remove fine dust adhered by intermolecular force strongly by ultrasonic waves to ensure reliable dust removal performance

Show.

Dustproof drip-resistant body resistant to harsh operating conditions

Sealed in various parts of the body such as built-in flash part, LCD monitor mounting part, various switch part, realized dust-proof and drip-proof structure that does not allow dust, rain, splashes to penetrate.

Combined with a ZUIKO DIGITAL lens that is dustproof and drip-proof, sealed similarly to the body, it can be taken with peace of mind even in harsh environments.

The material of the body is lightweight, excellent in strength and rigidity, adopting a magnesium alloy by thixomold method capable of homogeneous composition, with extremely high rigidity and durability.

Furthermore, with a movable LCD monitor, you do not need to drill holes for LCD monitor on the back of the body, achieving a higher level of strength.

The interior of the body also supports high-speed continuous shooting and high durability by using high-precision, high-rigidity engineering, structural members mainly made of plastic and reinforcing with a metal frame.

Completed operation of 150,000 times * Shutter

Considering the harsh use of professional users for the shutter unit, cleared the 150,000 times photographing operation test * Equipped with a durable metal curtain vertically running focal plane shutter.

* According to Olympus test conditions

High precision 49 division photometry system

Adopt active pixel method for low brightness metering and hybrid photometry method using integral amplifier for high brightness metering.

It ensures a wide photometric range even under complicated light conditions, enabling accurate photometry at high speed.

Moreover, by adopting a new algorithm, stabilization of photometric performance at the time of photographing of low brightness and high brightness subject is realized.

Furthermore, it is possible to add more association between AF distance measuring point and AE photometric value, and more accurate photometry is possible.

Features:

• Please enter model number Confirm this is compatible:
• ● E-3 Black ● OLYMPUS Body

Product information:

Shipping Weight: 1642 g

Package Dimensions: 13.99 x 15.19 x 23.80 cm
