[Product Information]

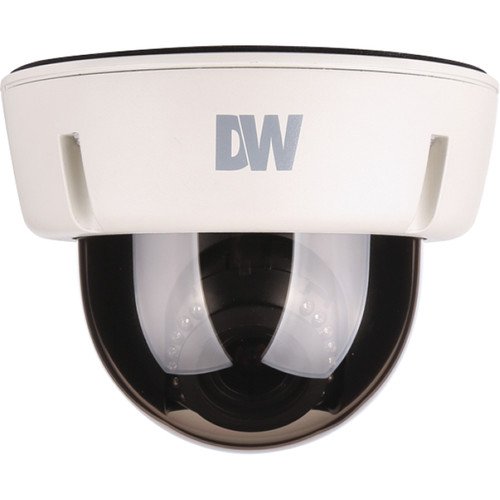

The new Star-Light™ Megapixel Analog Cameras are a groundbreaking technology with highest analog resolution with a 1.3MP CMOS sensor capable of capturing up to 720P resolution, allowing the camera to receive and process images in high resolution, digitally zoom with no pixelatoin and display up to 820TV Lines resolution. The cameras also offer Intelligent Motion Detection and Automatic Digital Zoom and motion tracing, True Day & Night, 3D Digital Noise Reduction, De-Fog enhancement for extreme weather conditions, remote camera control via RS-485/ UTC and alarm output, the Star-Light MPA™ is an intelligent and high resolution solution for any application.
Features 1.3 Active Megapixels = 800 TVL Resolution 3D DNR (Digital Noise Reduction) Auto Sensing Dual Voltage with Line Lock: 12VDC/24VAC BLC - Backlight Compensation D/N - Day/ Night: True Day & Night with IR Cut Filter DRC - Dynamic Range Compressor De-Fog Image Enhancement Easy Icon Driven OSD Menu with Built-in Joystick HME - Highlight Masking Exposure Image Sensor: 1/3" Sony 1.3MP CMOS Sensor Intelligent Motion Detection with Motion Tracing Lens: 2.8~12mm Varifocal Auto Iris Lens NEMA RATING: IP66 (Protects against dust and high pressure water.) Programmable Privacy Zones: 16 Programmable Zones Quick Digital Zoom with no Pixelation RS-485 Built-in Resolution: 800TVL [Color], 820TVL [B/W] SLC - Sidelight Compensation Secondary Video - BNC Output: Included Sensor Input/ Output: 1 Alarm Output Star-Light™ (Super Low Light Technology) WDR- Wide Dynamic Range
Image Frequency 15.734KHz (H), 59.95Hz (V) Image Sensor 1/3" Sony 1.3MP CMOS Sensor Minimum Illumination F1.2 (30IRE): 0.0 Lux Resolution 800TVL [Color], 820TVL [B/W] S/N Ratio- Signal to Noise Ratio 55dB (AGC off) Scanning System 2 : 1 Interlace Synchronization Internal or Line Lock Total Pixels (H X V) 1280 (H) x 1024 (V) Video Output CVBS: 1.0Vp-p / 75 Ω Lens Digital Zoom x8 Focal Length 2.8~12mm IR Distance 100ft Range IR Lens Type Varifocal Auto Iris Mechanical Dimensions 145 x 108.8 mm (5.7 X 4.28 in) Housing Material Aluminum Housing Type Vandal Dome Sensor Input/ Output 1 Alarm Output Warranty 5 Years Weight 1.65 lbs Operational 3D DNR 3D Digital Noise Reduction OFF / LOW / MIDDLE / HIGH AGC Auto Gain Control 0~20 AWB Auto White Balance ATW / AWB / PUSH / MANUAL BLC Backlight Compensation OFF / ON D/N Day/ Night AUTO/ DAY/ NIGHT DPC- Dead Pixel Cancellation OFF/ ON DRC Dynamic Range Compressor OFF / Low / Middle / High Gamma 0.45 ~ 0.65 HME Highlight Masking Exposure OFF / ON Programmable Privacy Zones OFF / ON (16 Programmable Zones) Sharpness 0~10 Starlight™ (Super Low Light Technology) X2-X64 WDR Wide Dynamic Range Environmental Operating Humidity Less than 90% (Non-Condensing) Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F) Power Consumption DC12V: 3.3W, 275mA, LED On: 5.94W, 495mA AC24V: 2.56W, 106mA, LED On: 4.9W, 204 mA Voltage Dual (12VDC & 24VAC)
