Product Description

Part No:PL9823-8mm

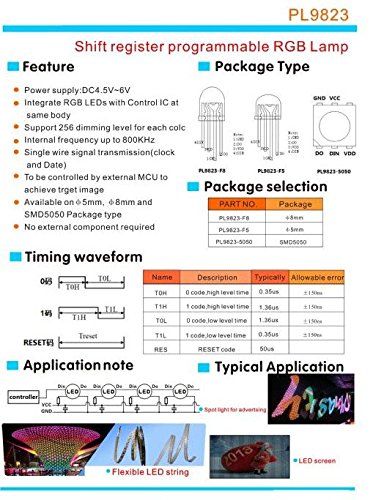

Technical data: pl9823 - F8 led (bgl. ws2812 led) green / red / blue

Input voltage: DC 4.5 - 6V

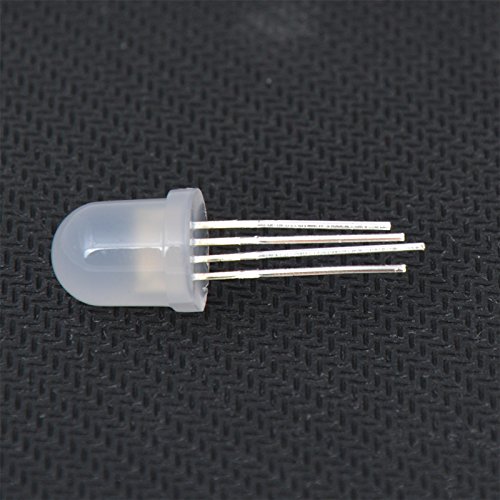

diameter 8mm

up to 1024 leds can be switched.

scope of delivery: 100 piece

connection to din / + 5v / gnd / dout (long pin is gnd)

it can be switched to 1024 leds in a row

Color:full rgb color,24bit,256 gray scale

Max Power:0.3W

Driver method:Constant current circuit

Viewing angle:100-120degree

Protection Level:IP20 Non-waterproof

Reverse current：100 A

Peak current（duty＝0.1,1KHz）：100 mA

Operating/Storage temperature range：-30℃~ +85℃

Derating linear from 25℃：0.4 mA/℃

Lead soldering temperature range：260℃ for 5 second

connection to din / + 5v / gnd / dout (long pin is gnd)

Scope of delivery: 100 pcs

Product features

◆This product has good performance, visual effect is clear, simple cascade mode; Data transmission stability, strong anti-interference ability, etc。

◆Grade serial interface connection, can complete the data through a signal receiving and decoding

◆Data sending rate of up to 800 KBPS


Applications:

◆Lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking, etc.

◆They can be a good choice for advertising,Led screen, night clubs, coffee / wine bars, shopping malls, various shops, cinemas, beauty centers,
office fronts, even lights for household kitchens or living rooms, etc.


Package included:

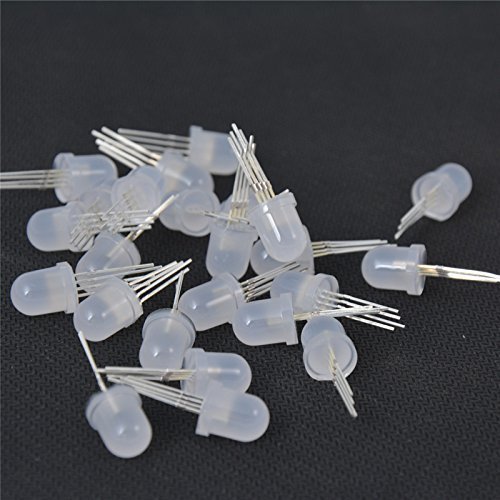

1x100pcs Pl9823 8mm F8 Round RGB LED Chip

Feature

Power supply: DC 4.5 - 6V.Pack of 100pcs 8mm LED.
Full RGB color,24bit,support 256 dimming level for each color.
Integrate RGB LEDs with control IC at same body.
Has good performance, visual effect is clear, simple cascade mode.
Data transmission stability, strong anti-interference ability.
Brand : mokungit
EAN : 0747150984575
