Support: Blue Tooth, Memory stick, TF card, FM radio, AUX1, AUX2 and just use 86X86MM general base box.
[Product Name]
Multi-room Music System-Head TAIYA868
[Product Introduction]
This product inherits all the advantages of the classic product 808, adding the audio output function, single loop play and power increasing function etc. It is another innovation based on the application model of original background music system. The large LCD display with bright blue backlight looks much noble. The surface uses brushed film with small curvature. The plastic parts are processed with environmentally-friendly materials. Amplifier and power supply use independent switch mode which is more humanized and safe.
[Product Function Information]
• Use new digital amplifier technology: low distortion, low noise, high efficiency, good sound quality.
• High-fidelity stereo
• Five audio options: two public audio (Cabling input) and three local source (built-in: FM + built-in SD card + USB function).
• Audio output function: the audio of this product can be output to the other split power amplifier controller, our other products such as Rouqing502B, AoLe806, Zhiyin906 can use the sound sources from it(including the SD card, U disk, radio and other sources).
• Single loop play
• Radio: install full-automatic digital FM radio internally, 30 radio stations storage .
• Memory card function: built-in SD card, users can download and update through the card reader, it is the first in the industry.
• USB play function: support playing by insert the USB
• Set timing to power on and off.
• Volume Adjustment:32-level electronic volume control.
• Non-volatile Memory: memorize the last pre-shutdown state.
• Showing the time: 24-hour time showing which is easy to identify
• Adjust the high and bass sound
• Infrared remote control
[Product Technical Specifications]
• Power supply: AC230V/110V
• Output power: 12W+12W (MAX)
• Input impedance: 47KΩ
• Output impedance: 8Ω
• Total Harmonic Distortion: 0.03%
• Frequency Response: 20Hz-20KHz
• ROM:4GB, Extended SD Card Capacity: 16G
• Infrared remote control distance: ≤ 10M
• Product size: 86 * 86 * 42mm
[Product Using Reminder]
• Supporting bottom box: embed the 86*86MM standard bottom box.

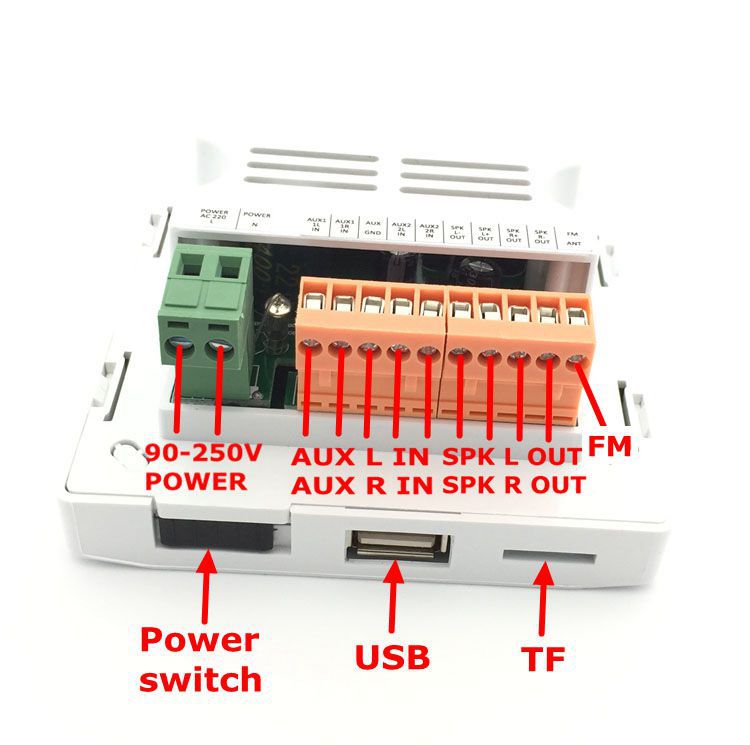

• Cable: Four kinds of cables are used in the system: First,wire: 1-2 square; Second, audio cable (two-core shielded cable: commonly known as the microphone cable): RVVP2 * 0.3 RVVP2 * 0.5 RVVP2 * 0.75; Third, speaker cable: RVH2 * 100 RVH2 * 200. Fourth, antenna: any core wire is ok,such as a copper wire.
• Wiring reminder: When there are multiple points (multiple rooms, multiple products), the wiring is in parallel, or connected through the junction box
• Details to see the product manual.
';
