Product Features:

l support 11N overcharged multiple technology， the connection speed can reach 300M;

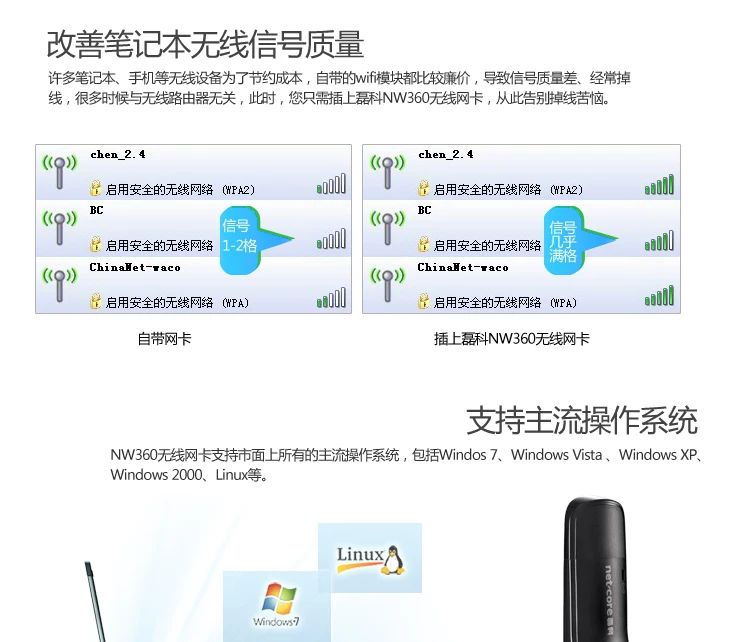

l Built-in intelligent patch antenna， with excellent signal reception;

l Support wireless roaming technology

l compatible with 802.11b / g / n standards;

l independent hardware functions of the signal gain technology;

l supports the latest WEP， WPA， 802.1x， AES， TKIP encryption and authentication mechanisms;

l support different mode wireless work site information filter

l own Chinese configuration program;

l mimo technology-based multi-channel transceiver

l Soft AP functionality

Hardware Specifications

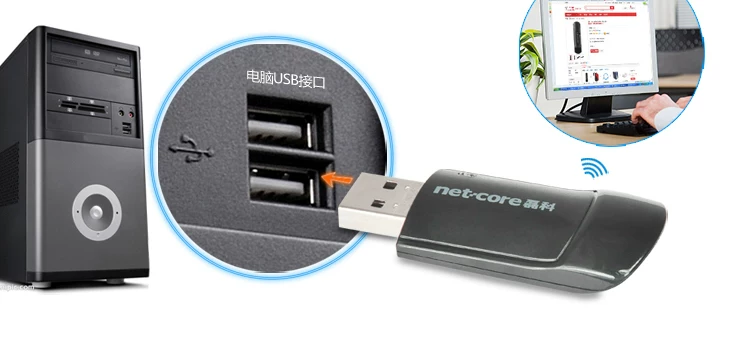

Interface	USB 2.0

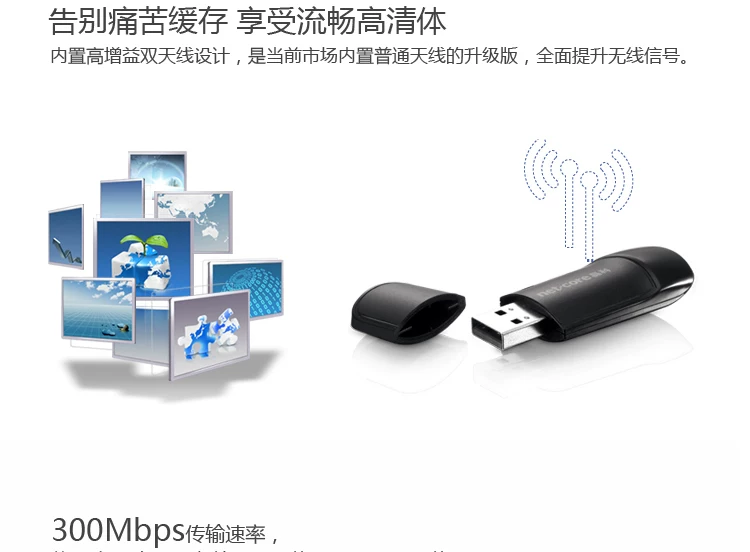

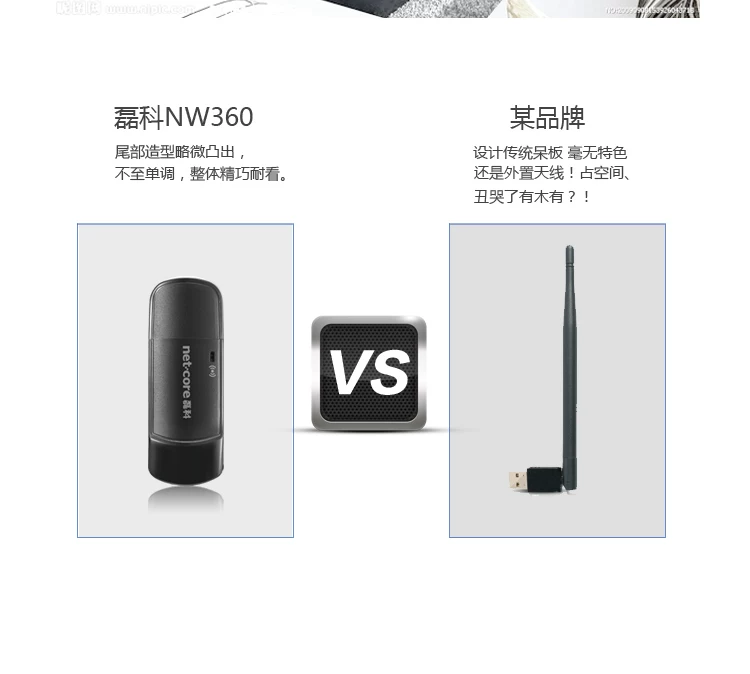

Antenna	Built two smart antenna
size	60mm x 25mm x 8mm
Environment	Working temperature:0°C~40°C
	Storage temperature:-20°C~70°C
	Humidity:10% ~ 90% RH non-condensing
	Storage humidity: 5% ~ 90% RH non-condensing
Packing Accessories	NW360 300M Wireless USB Adapter
	CD-ROM drive



Wireless feature
Wireless Standard	IEEE 802.11b；IEEE 802.11g；IEEE 802.11n
Transmission rate	11b：1/2/5.5/11Mbps
	11g：6/9/12/18/24/36/48/54Mbps
	11n：Up to 300Mbps
Frequency Range	2.4~2.4835GHz
Working channel	1~13
Maximum power	100mw
Software features
Security Features	WPA-PSK/WPA2-PSK
	WPA/WPA2
	64/128 bit WEP encryption
	WPS a key encryption
Operating System Support	Windows 7/Vista/XP/2000
	Linux
	Mac OS
	Note: For better system compatibility， it is recommended that you install the latest system upgrade patch
