Product Description
1.Description



2.Features

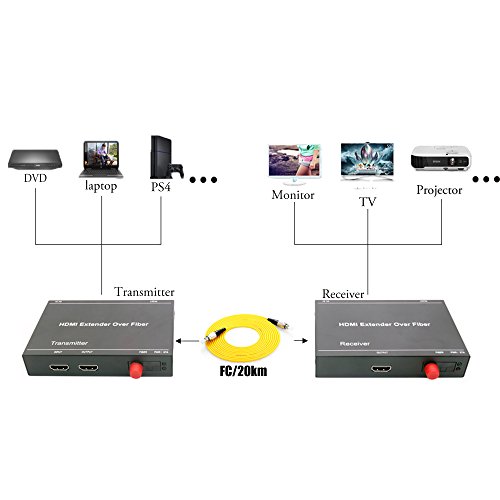

Through the optical fiber transmission HDMI video and audio signal for long distances, up to 20 km;
Support video resolution max up to 1920*1080p@60Hz;
HDMI 1.3 compatible
Support bidirectional RS232 data transmission;
Special format is used to compress and decompress video, effectively improve the Transfer efficiency, to ensure that the playback fluency;
Support external remote infrared extension, easy to operate the remote device;
Able to automatically identify and configure the various display modes;

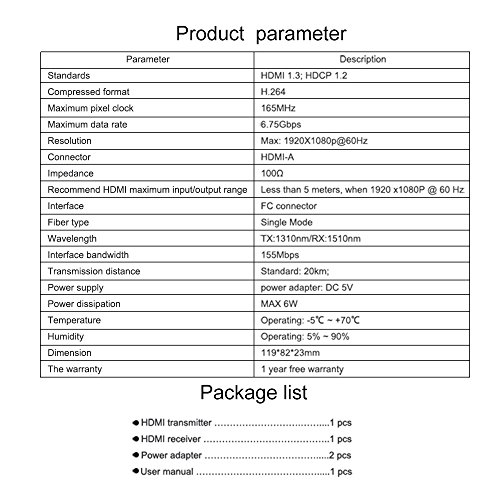

3.Specification

Video
Compressed format-------H.264
Standards---------------HDMI 1.3, HDCP 1.2
Maximum Pixel Clock-----165MHz
Maximum Data Rate-------6.75Gbps
Resolution Range--------Max:1920X1080P@60Hz,less than 1080p@60hz ,all is ok

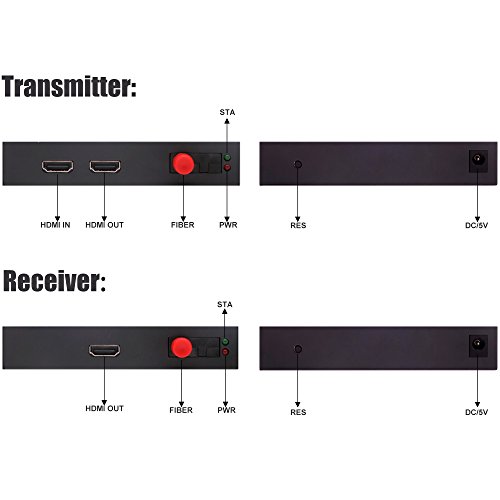

Connector---------------Female HDMI Type A

Optical Fiber
Interface---------------SC/FC optional
Fiber Type--------------Single Mode
Wavelength--------------TX 1310nm, RX 1550nm
Interface Bandwidth-----6.25Gbps
Transmission Distance---Standard: 20km

Other
Power Supply------------The Power Adapter: DC 5V/2A
Power Dissipation-------Max: 6W
Temperature-------------Operating: -5℃ ~ 70℃
Humidity----------------Operating: 5% ~ 90%
The Warranty------------1 Year Free Warranty

4.Package list

HDMI transmitter ...... 1 pcs
HDMI receiver ............1 pcs
Power adapter ............2 pcs
User manual ...............1 pcs
