Item Descriptions:

Product specification:

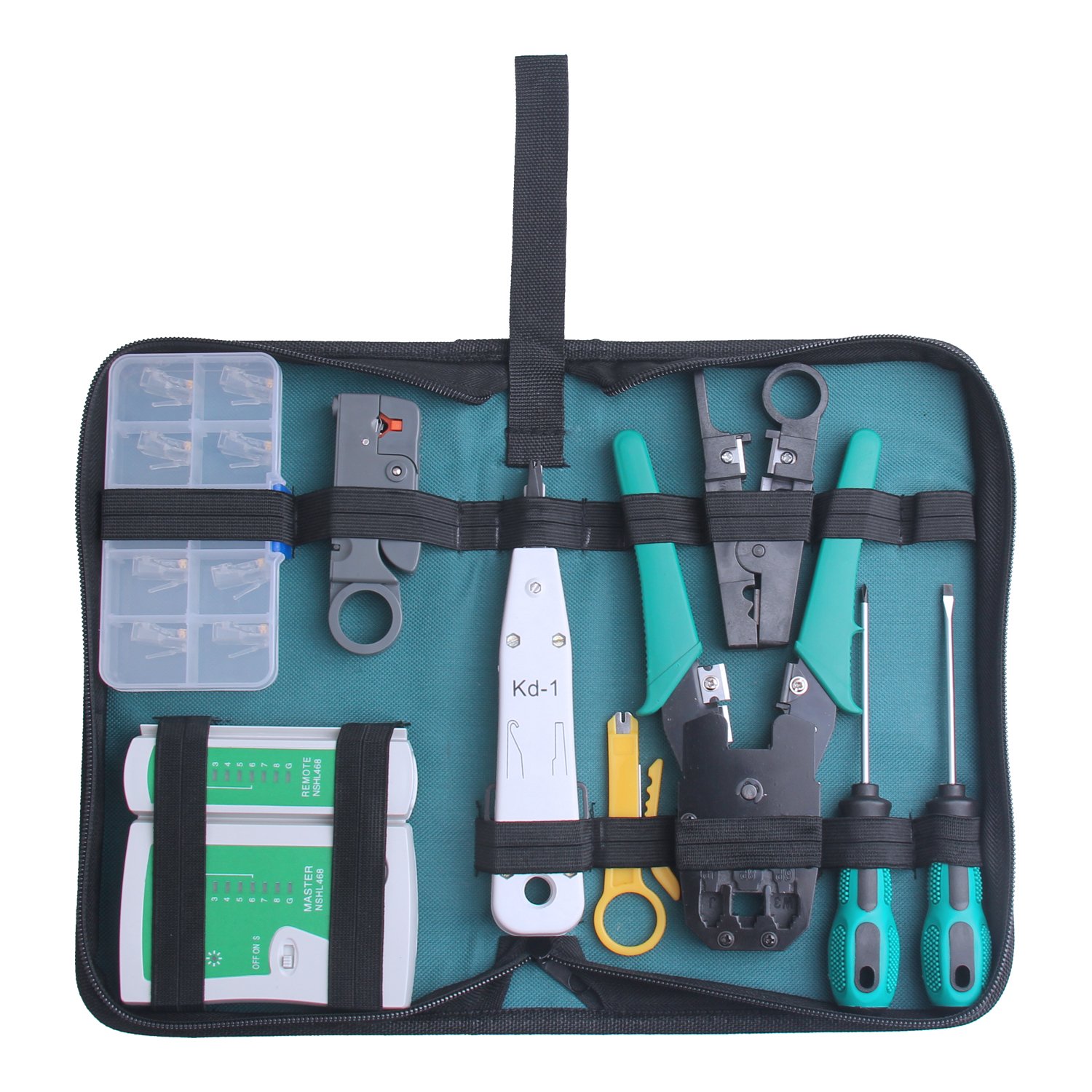

1 x Crimping pliers (4P / 6P / 8P shared)

1 x LAN cable tester (English instruction manual of master unit + slave unit + tester, shared with RJ 45 and RJ 11)

1 x Small peel cutter (simple peeling tool, yellow)

1 x Punch Down Tool (White)

1 x Stripping Plier Knife (Black)

1 x Wire Stripping Knife (Black)

1 x Phillips screwdriver

1 x flathead screwdriver

10 × crystal connector (8P8C / RJ45)

1 x Connector storage case

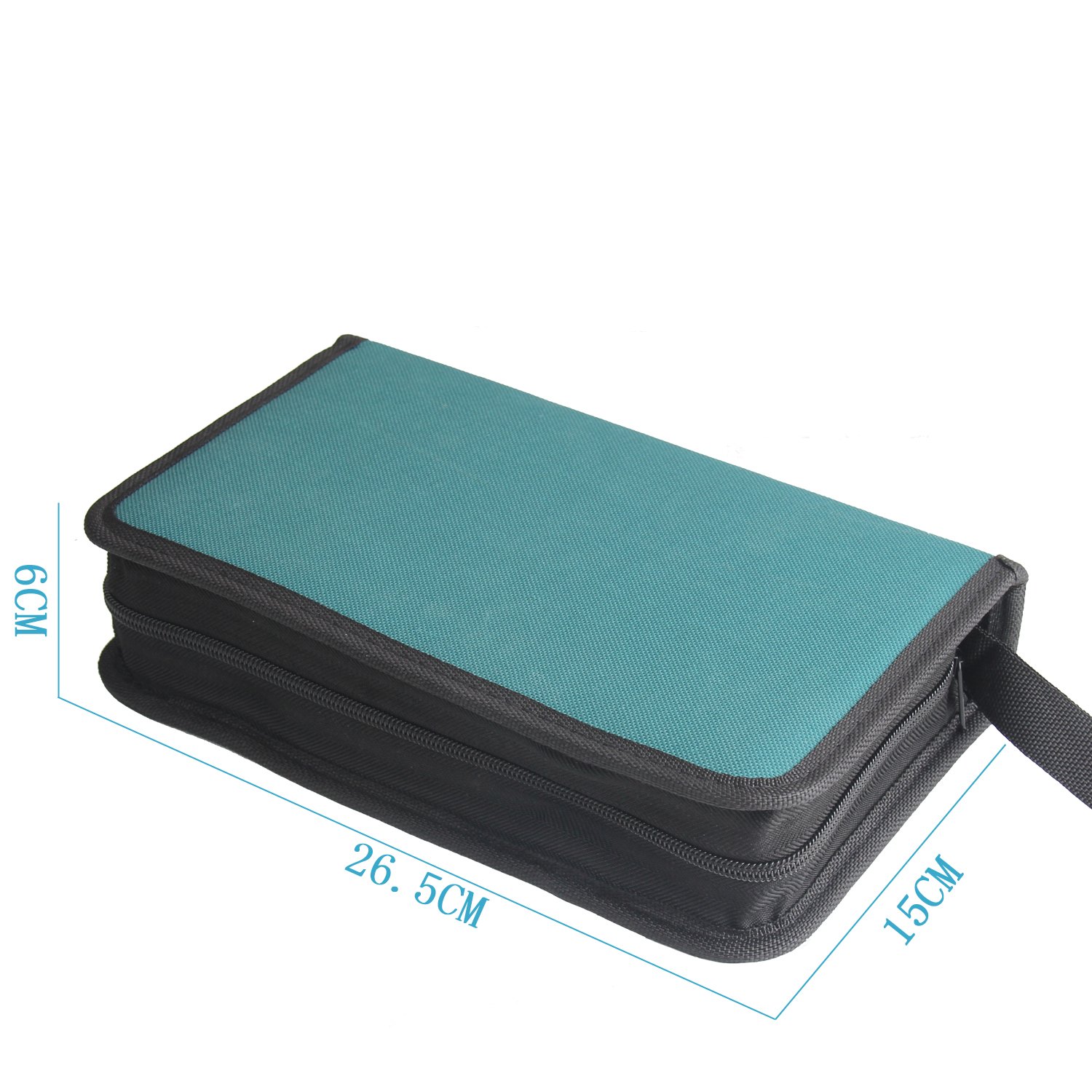

1 x bag (size: 26 x 18 x 4.8 cm)

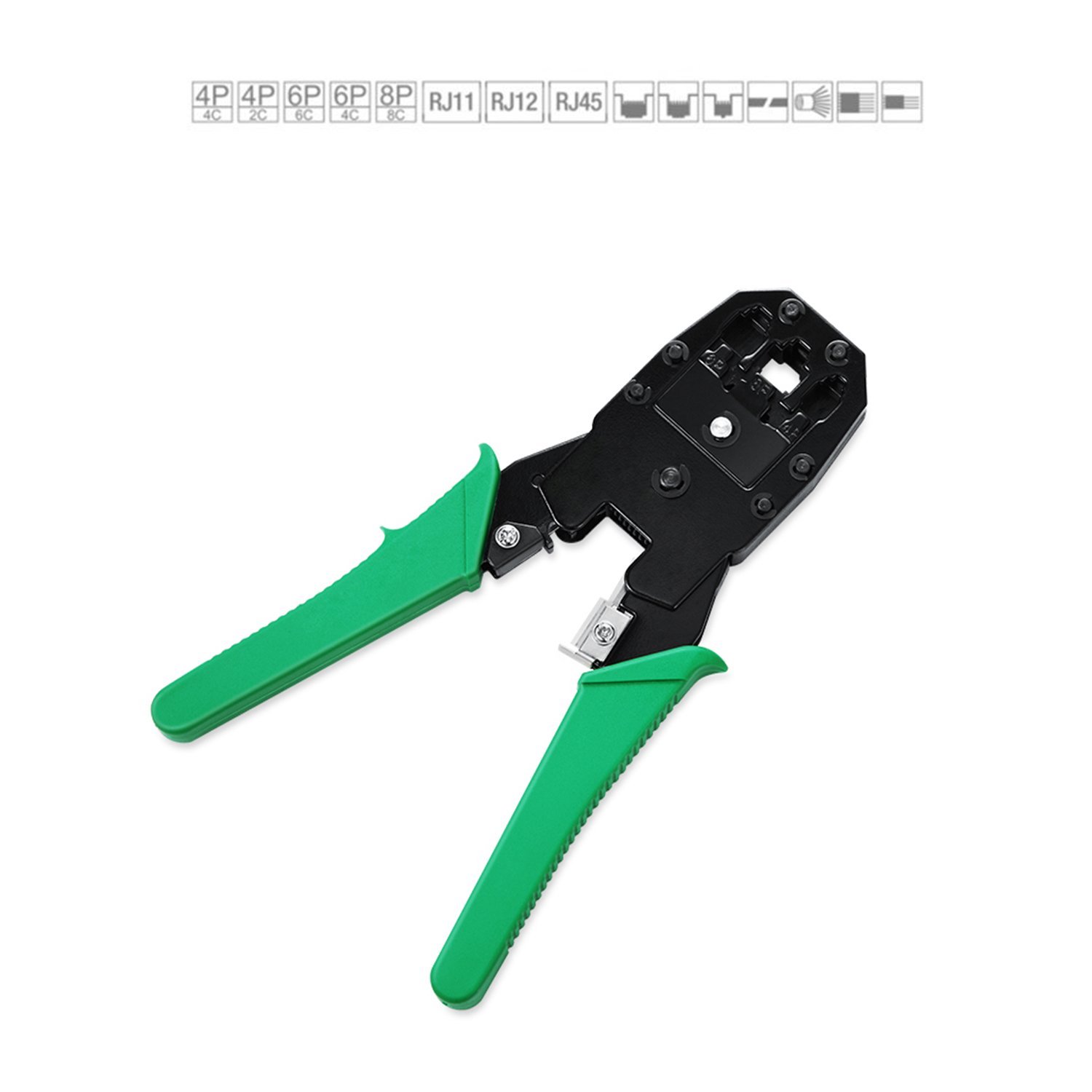

Crimping pliers:

LAN cable connector crimp crimping pliers, 4P / 6P / 8P dual use.

Used to attach the RJ45, RJ12, RJ11 connectors to the cable.

For versatile use, you can caulk, cut, and stick cables.

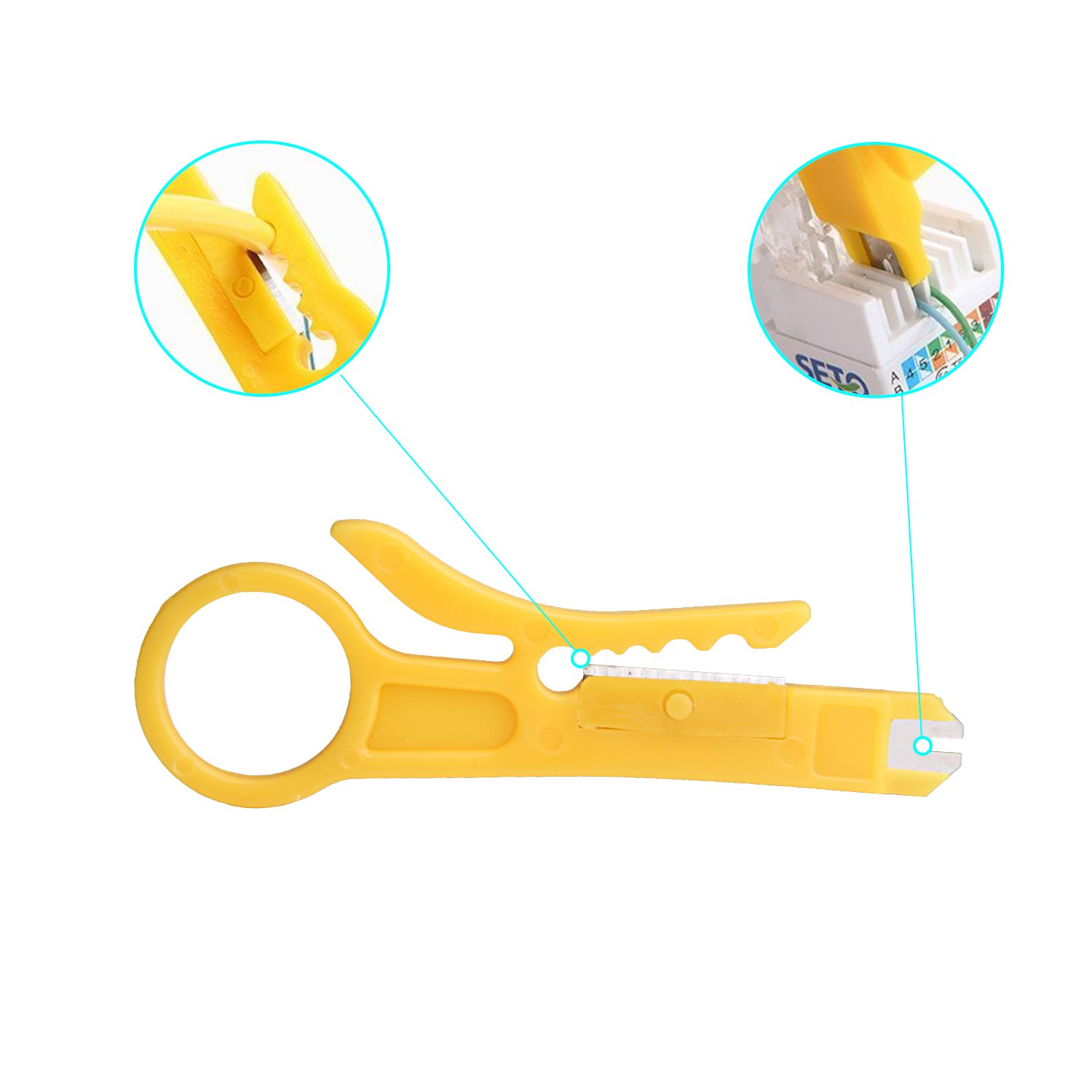

Small peel cutter:

Simple peeling tool.

It is mini size, lightweight, easy to use.

Cut the cable of the difference size and fix the wire.

In case

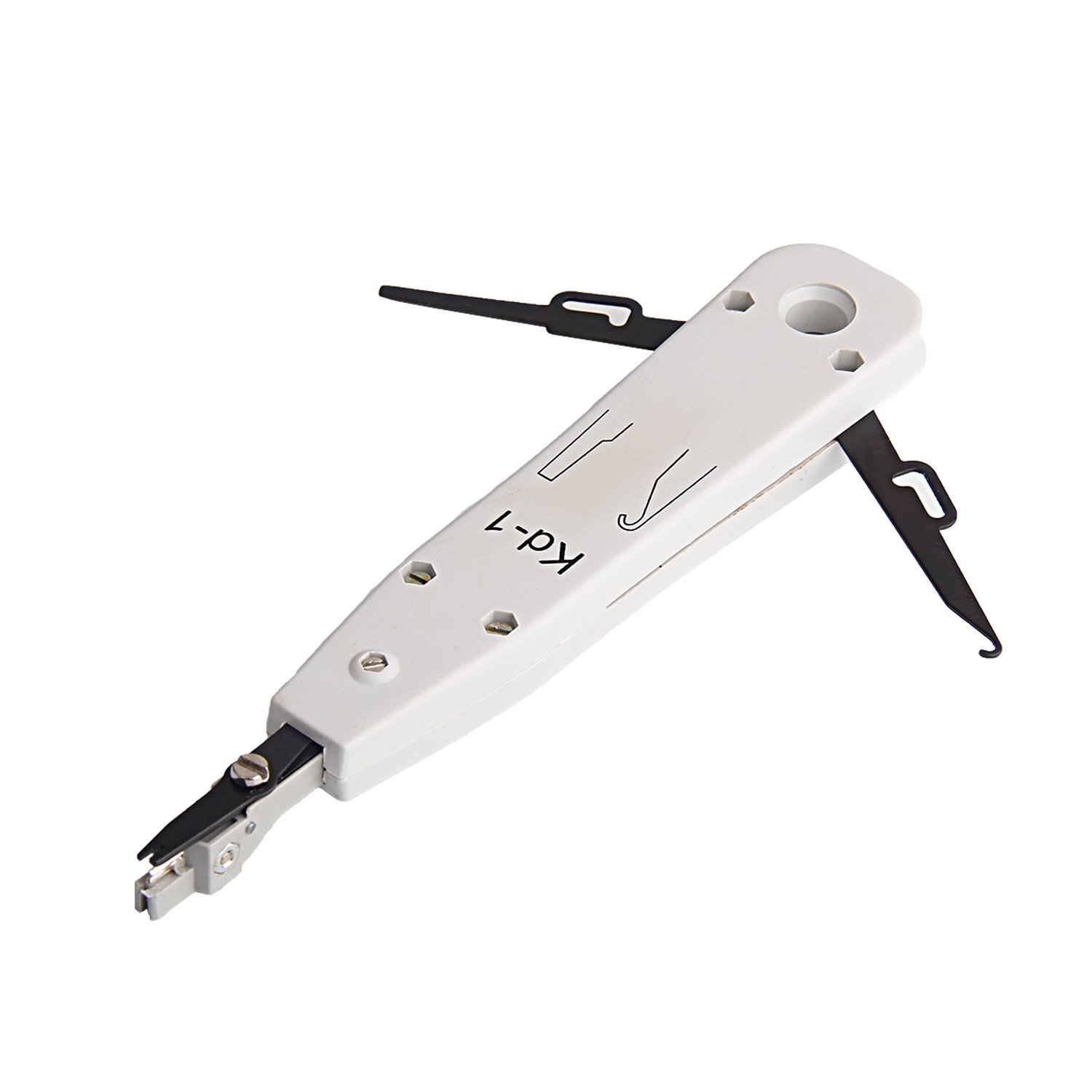

Punch down tool:

Hook on wire cutter, wire fixer, wire.

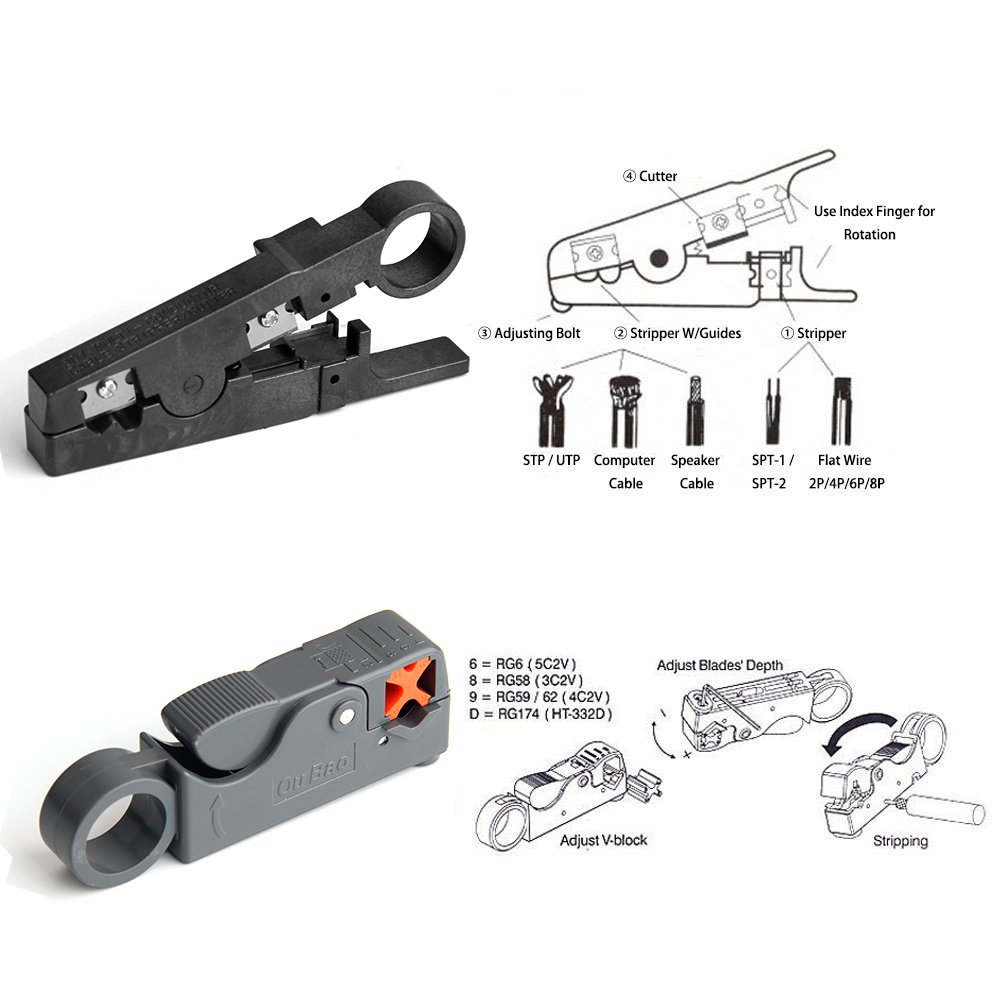

Stripping pliers Knife: This is a cable sheathing tool.

Cutter, with stripper function.

It is applied for peeling of UTP · STP cable.

Wire stripping knife: With cutter, stripper function, cable peeling tool.

You can also adjust the depth of the blade.

Connector: Attach 10 pieces.

We will use Crystal connector (8P8C / RJ45), 24 gold plated.

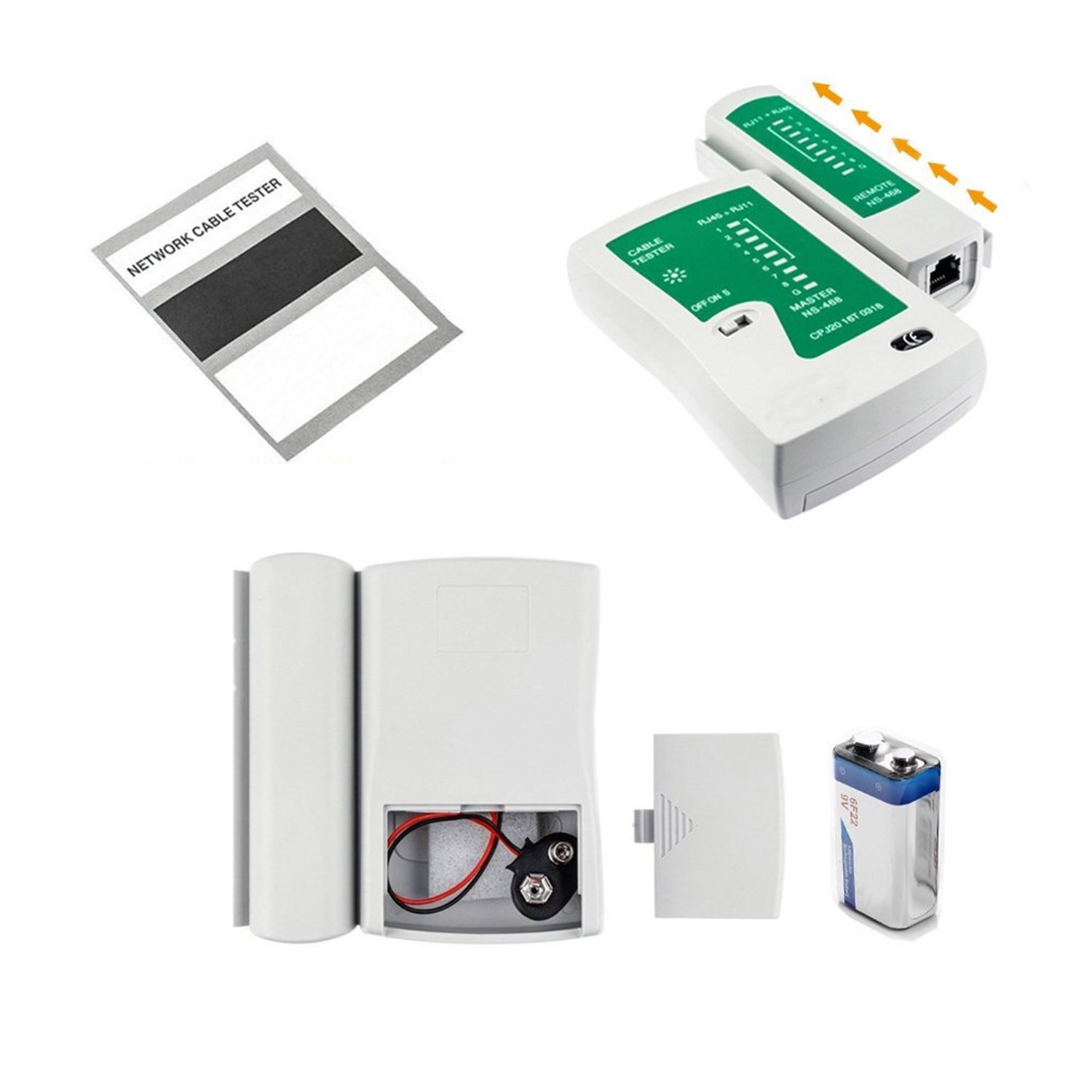

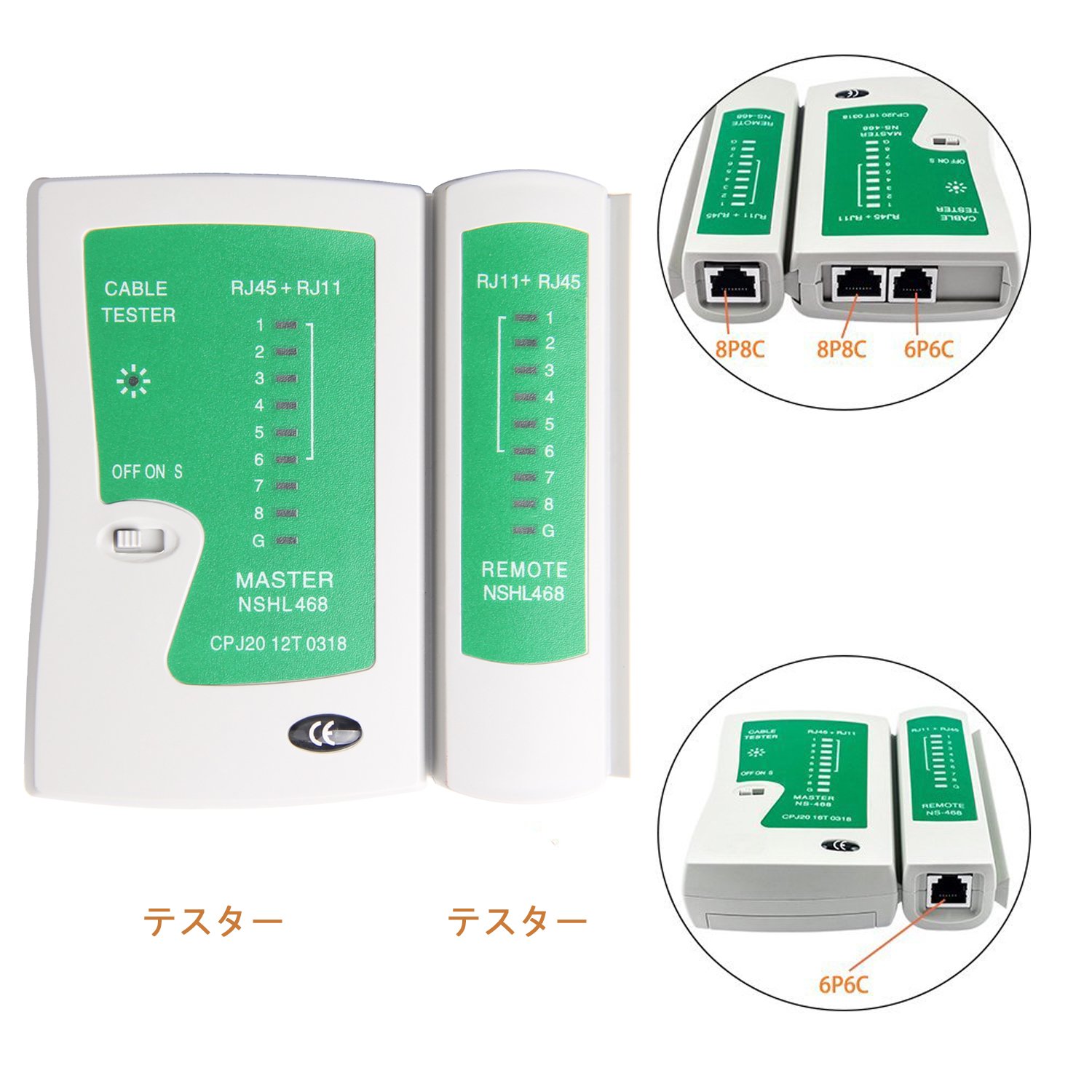

Tester: RJ45 and RJ11 are shared.

Note, 9V batteries (prismatic batteries) are not included.

After cable creation, we will diagnose with a tester whether there is a problem.

The tester plugs the connectors (plugs) at both ends into the base unit and the slave unit, turns on the switch, and it is OK if the LEDs of the master unit and the slave unit are lighted one by one in order of number.

Features:

• Please enter model number Confirm this is compatible:
• Set includes: crimping pliers × 1 / wire stripper (peeling tool) × 1 / LAN cable tester (for RJ 45 and RJ 11) × 1 / connector RJ 45 / connector protective cover × 10 / extension socket × 1
• Convenient: Since a complete set of tools is available, you can quickly create cables.
• After cable creation, we will diagnose with a tester whether there is a problem.
• It is a convenient set to suit beginners.
• Response: Building a wired network at home, office, laboratory, controlling equipment at factory, etc. will be a big success in those situations.
• Storage case: Plastic, housing the connector.
• Eleven tool sets will appear.
• Using this self-made tool kit, you can make your own LAN cable of your own length.
• LAN cable tester: RJ 45 and RJ 11 dual use, 9 V batteries are not included.

Product information:

Shipping Weight: 848 g

Package Dimensions: 7.19 x 21.59 x 30.71 cm
