Product Description

Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference, as well as calculations to handle any non-linearities. For a long time we've suggested our MAX31855K breakout, which works great but is only for K-type thermocouples. Now we're happy to offer a great new thermocouple amplifier/converter that can handle just about any type of thermocouple, and even has the ability to give you notification when the temperature goes out of range, or a fault occurs. Very fancy!

This converter communicates over 4-wire SPI and can interface with any K, J, N, R, S, T, E, or B type thermocouple.

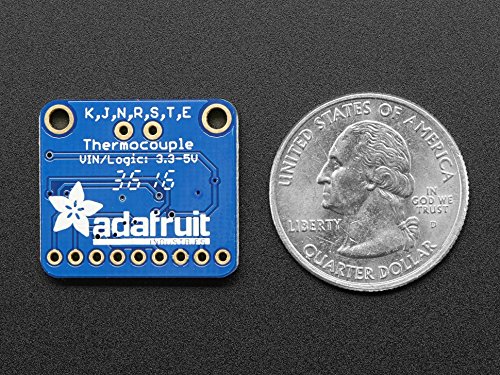

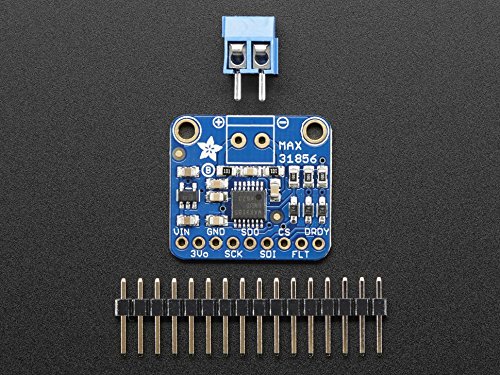

This breakout does everything for you, and can be easily interfaced with any microcontroller, even one without an analog input. This breakout board has the chip itself, a 3.3V regulator and level shifting circuitry, all assembled and tested. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard). We even added inline resistors and a filter capacitor on-board for better stability, as recommended by Maxim. Goes great with our 1m K-type thermocouple or any other thermocouple, really!

Features:
Works with any K, J, N, R, S, T, E, or B type thermocouple. A Type-K Glass Braid Insulated thermocouple is included.
-210°C to +1800°C output in 0.0078125° resolution - note that many thermocouples have about ±2°C to ±6°C accuracy or worse depending on the temperature and type, so the resolution will be a lot better than the accuracy!
Internal temperature reading
3.3 to 5v power supply and logic level compliant!
SPI data requires any 4 digital I/O pins

Thermocouple Features:
K type thermocouple with glass over-braiding
Good up to 500 °C (900 °F)!
Color-coded wires
1 meter long (a little more than 3 feet)

Feature

SPI data requires any 4 digital I/O pins
3.3 to 5v power supply and logic level compliant!
Includes a Type-K glass braid insulated thermocouple
Good up to 500 °C (900 °F)
1 meter long (a little more than 3 feet)
Brand : Adafruit
MPN(PartNumber) : LYSB01M0YUA4R-CMPTRACCS
EAN : 0717520029762
Product Dimensions(LxWxH) : 8x6x3cm ; 9 g
Package Dimensions(LxWxH) : 11x8x1cm ; 9 g
