Product Description

Specifications:

Combine the operation of GPS/GSM/GPRS wireless network
High sensitivity GPS chipset, smart start GPS positioning
Free press the power button, when there is a power it can work
It does not need maintenance, and has the fault self-recovery function
The built-in power switch, wide range input voltage
Through the short message receiving instruction, acquiring positioning information Easy installation, hidden or open in the car for tracking
Three color LED lamp status display, to understand the working state of the locator Two power supply input mode, can choose the car cigarette lighter power supply or car battery
Supply technical parameters GSM 900/1800MHz GPRS Class 12,
TCP/IP build in GSM
Module GPS SiRF Star III/LP
Channel: 20
Position sensitive -159dBM
Acquisition sensitivity -144dBM
Hot start: < 2sec(Open Sky)
Warm start: < 15sec
Cold start: < 38sec(Open Sky)
Built in antenna GSM antenna, low noise high gain antenna for GPS

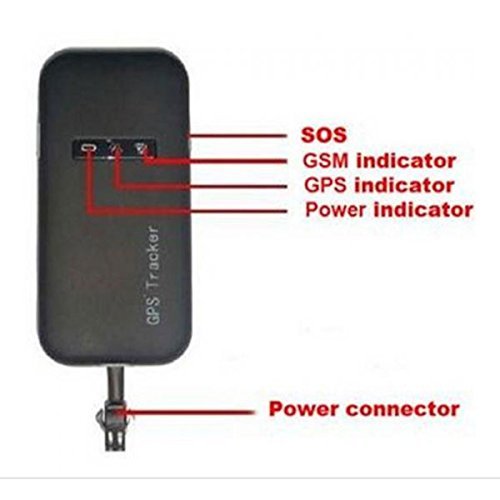

LED indicating lamp, 3 LED display GPS- Blue, GSM-Green, Power- Red
Vehicle power: 12-24VDC
The appearance Size: 90 (L) *45.0 (W) *12.0 (H) mm
Weight : 45g
Operating temperature: -25 ℃ to +80 ℃
The storage temperature: -30 ℃ to +85 ℃
Operating Humidity: 45% to 80% RH
Storage humidity: 30% to 90% EH
Package includes:
1 x TK110 Locator

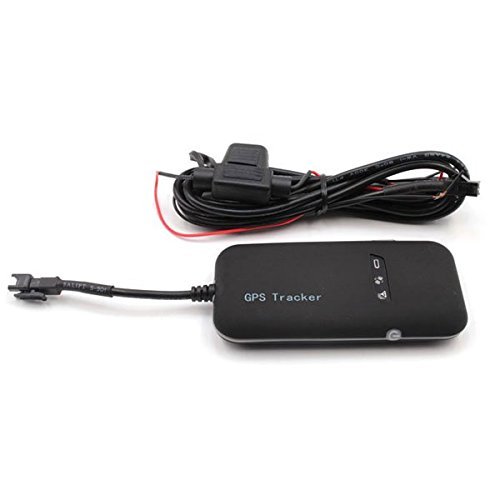

1 x cable
4 x Locking Bolts

Feature

Support GSM900/1800MHz or 850/1900MHz. The fourth generation of high sensitivity GPS chipset
The built-in antenna terminal design. LBS+GPS dual-mode hybrid location. Support WEB, SMS, mobile phone, GOOGLE maps no platform location.
Can choose to hide or open installation, to obtain location information through the SMS or GPRS (tcp/ip). Choosing the car cigarette lighter power supply or battery power supply as you like
The built-in CUP equipment monitoring, fault self repair function. The built-in power switch, wide range input voltage, to adapt to a variety of vehicles and voltage environment
Real-time location tracking, intelligent reporting location and alarm status to the platform and center number. The authorization management user password setting, to use more safety and privacy protection
Brand : BestElec
MPN(PartNumber) : be-126
EAN : 0642782297829
