Product Description

Features:
True Capacity and C-Rating
Thick 12AWG Discharge Leads
Traxxas High Current Style Connector
JST-XH Balance connector

Capacity: 5200mAh
Voltage: 3S / 3 Cell / 11.1v
Discharge Rate: 50C Constant (260A) / 100C Burst (10 sec) (520A)
Charge Rate: 2C (10.0A)
Watt Hours: 55.50Wh
Weight: 11.6 oz / 329.0g (including wire, plug casing)
Dimensions LxWxH: 134.5 x 43.5 x 26.0 mm
Dimensions w/ Wires folded at end of pack: 137.5 x 43.5 x 26.0 mm
*Note that dimensions may vary by ± ~1mm.
Discharge Plug: Traxxas High Current Style Connector
Balance Plug: JST-XH

Includes:

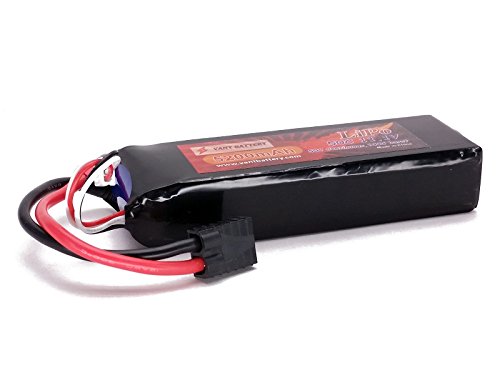

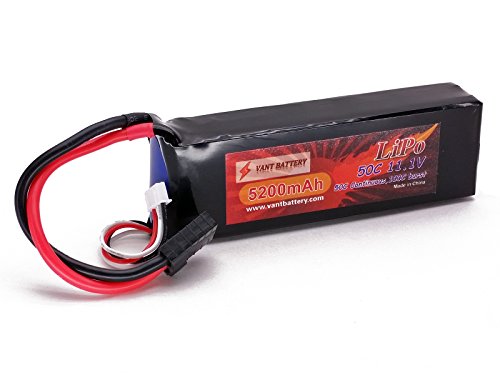

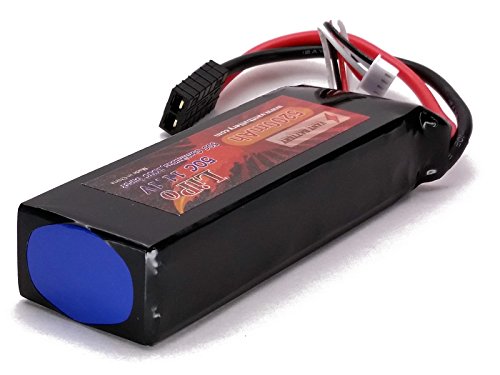

11.1V 5200mAh 3S Cell 50C-100C LiPo Battery Pack w/ Traxxas High Current Style Connector
Vant Battery Warranty w/ Lifetime Replacement Plan

Equipment Needed: LiPo Balance charger capable of charging 3 cell LiPo batteries
Equipment Recommended: LiPo Safe Charging Bag/Sack/Pouch, Cell Voltage Reader, Extended Battery Strap if required by your vehicle.

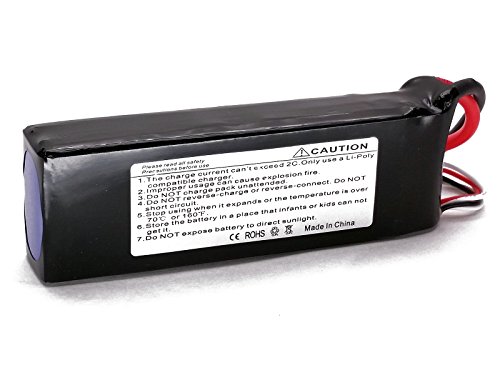

Safety Notes Warnings:
LiPo batteries are potentially hazardous. Improper usage can cause fire or explosion.
Charge and Store battery in LiPo-Safe Bag away from flammables on a concrete surface.
Charge using a LiPo compatible Balance Charger ONLY!
Never Charge above 4.2V per cell.
Never Discharge below 3.2V per cell.
Always use under adult supervision.
The end-user is fully responsible for any results in using this battery pack.
