Product Description

Introduction:

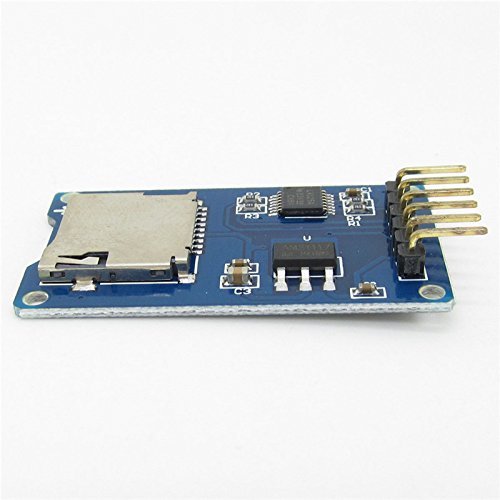

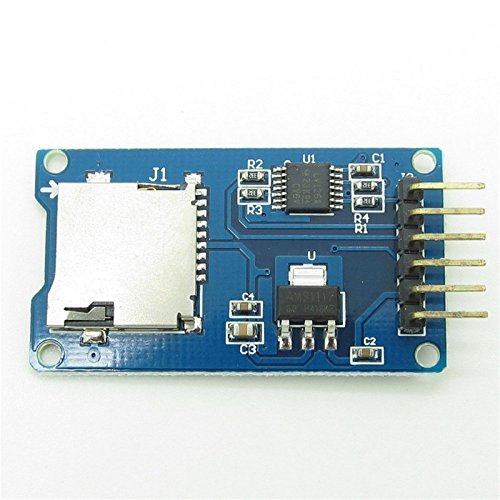

The module (MicroSD Card Adapter) is Micro SD card reader module, The microcontroller system can complete the reading and writing files through the file system and SPI interface driver. Arduino users can use the Arduino IDE comes with the SD card library to complete the card initialization and read and write

Specification:

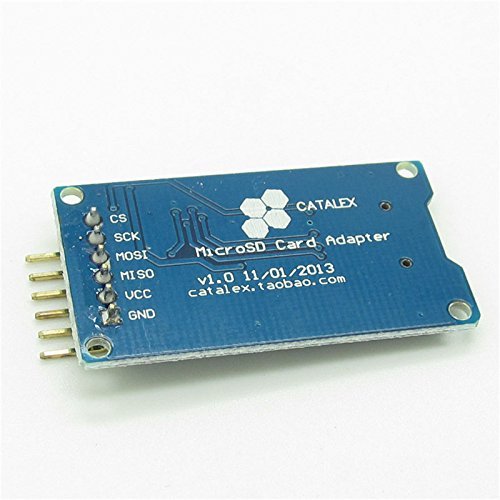

1.High Speed Control Interface: 6 pins（GND、VCC、MISO、MOSI、SCK、CS,), GND connect to ground, VCC for Power,MISO、MOSI、SCK as the bus of SPI,CS as a signal pin
2. 3.3V Regulator Circuit Output: LDO provide power for the level conversion chip, Micro SD card
3. Auto Level conversion circuit: convert Micro SD card signal into 3.3V, MISO signal of the control interface theis also converted to 3.3V, AVR microcontroller system can read the general signal
4. Flexible Micro SD deck: a self-playing deck, convenient to plug pull out for card .

Package included:

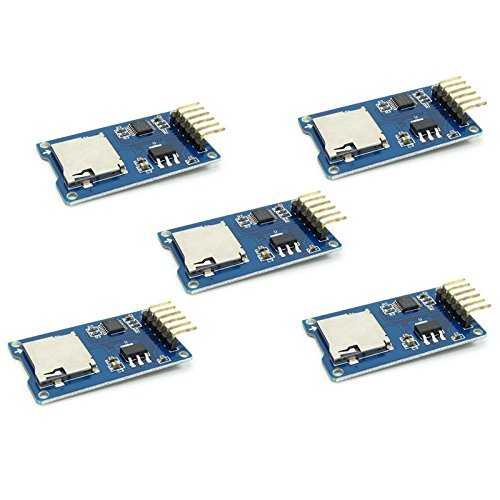

5Pcs Car read driver module

Outstanding Customer Service:HONGIII is a professional electronic module manufacter,to make customer have confidence in purchasing, We provdie 1 year no question asked guarantee return.also any question, you can send a email to us for the excellent service. Don't hesitate to get it for the excellent item.

Feature

Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
Level conversion circuit board that can interface level is 5V or 3.3V
Communications interface is a standard SPI interface
Positioning holes: 4 M2 screws positioning holes with a diameter of 2.2mm, so the module is easy to install positioning, to achieve inter-module combination
4 M2 screws positioning holes for easy installation
Brand : HONG111
EAN : 6937624489307
Package Dimensions(LxWxH) : 16x11x2cm ; 18 g
