Highlight

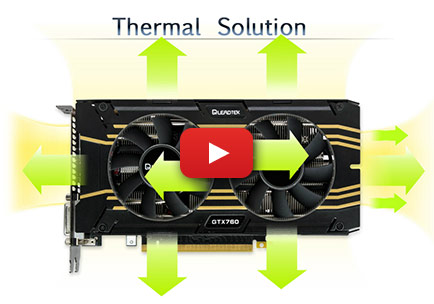

Thermal Solution

Features

Kepler GPU Architecture

NVIDIA's Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest DirectX 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation and the new geometry engine draws triangles twice as fast. The result is world-class performance and the highest image quality in an elegant and power efficient graphics card

NVIDIA GPU Boost 2.0
This brand new technology allows gamers to push PC performance to the maximum with precise controls. GPU Boost 2.0 intelligently monitors work with even more advanced controls like GPU temperature target, overclocking, and overvoltage to ensure the GPU works at the ultimate performance.

Two New Anti-aliasing Modes: FXAA and TXAA
Anti-aliasing smoothes out "jaggies" (jagged edges) but can be demanding on framerates. Fast Approximate Anti-Aliasing (FXAA) is a new antialiasing technology that produces beautiful smooth lines with minimal performance impact. And with Kepler based GPUs, you'll be able to enable FXAA in hundreds of game titles through the NVIDIA Control Panel.

The second mode, Temporal Anti-Aliasing (TXAA), is an in-game option that combines Multisample Anti-Aliasing (MSAA), temporal filtering, and post processing for even higher visual fidelity.

NVIDIA SLI Technology
Used by the most demanding gamers worldwide, SLI technology lets you link up to three GeForce GTX 760s together for astounding performance. And with NVIDIA's track record for fast and frequent software updates, you'll not only get the best performance in existing games, but future games too.

NVIDIA PhysX Technology
Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce.

NVIDIA 3D Vision Ready
NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor and keyboard brightness with NVIDIA 3D LightBoost technology. In addition, you can enjoy 3D movies and 3D digital photographs from 3DVisionLive.com in eye popping, crystal-clear quality.

NVIDIA Surround with Up To Four Monitors
Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision and provides for the most immersive experience in racing and flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming.

NVIDIA Adaptive Vertical Sync
Nothing is more distracting than framerate stuttering and screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, it's disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming.

GPU NVIDIA GeForce® GTX 760
Graphics Bus PCI Express 3.0
Memory size 2048/4096 MB GDDR5
Core clock Base clock/Boost clock:1111/1176 MHz
Memory clock 6208 MHz
Output DVI-D, DVI-I, HDMI, DisplayPort
Memory Interface 256-bit
Memory Bandwidth (GB/sec) 198.7
CUDA Cores 1152
HDCP support Yes
Full Microsoft® DirectX®11.1 Shader Model 5.0 Support
NVIDIA Surround with up to four monitors
DirectCompute Support
HDMI Support
Built for Microsoft® Windows 7™ & Vista™
OpenGL® 4.3 Optimizations and Support
Graphics Card Power 170W

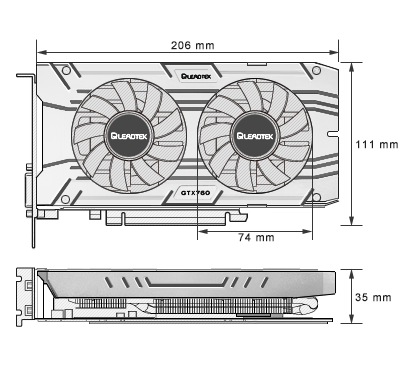

Card Dimensions 2 slot
Package contents WinFast GTX 760 O.C DUAL FAN graphics board
DVI to VGA adaptor
2 x 6-pin power cable
Driver DVD
Quick installation guide
System Requirements PCI-Express compliant motherboard with one dual-width x16 graphics slot
Two 6-pin PCI-Express supplementary power connectors
Minimum 500W or greater system power supply
2GB system memory (4GB or higher recommended)
300MB of available hard disk space
Microsoft Windows7, 8, Vista or Windows XP operation system(32 or 64 bit)
DVD-ROM drive or Internet connection
Software Bundled WinFast Graphics Driver CD (w/ WinFox III) x 1
