Item Descriptions:
size:
20 W
Description of item
● Wide range illumination!
Since 120 ° to 140 ° wide angle reflector is used, unevenness is unlikely to occur in light, and since it is wide angle irradiation, light can be efficiently applied to a signboard

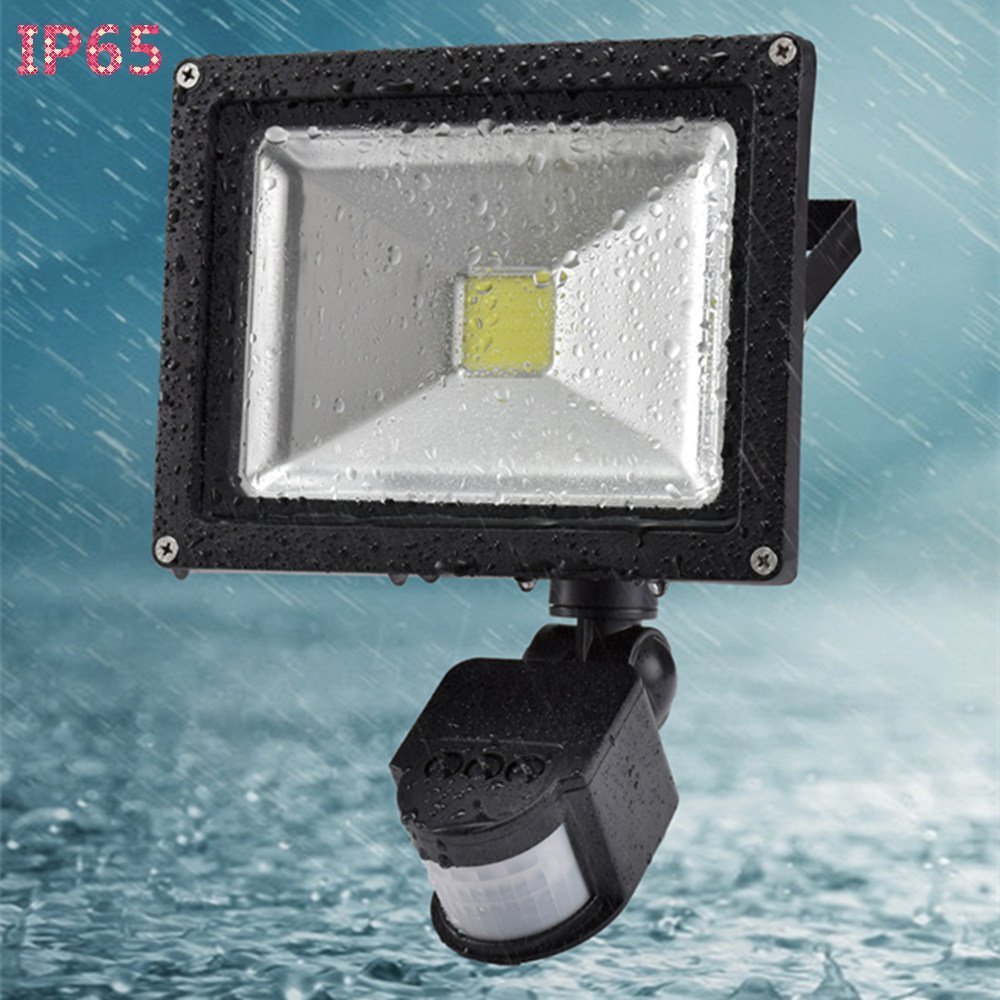

● Attractiveness of waterproof specification!
IP65 waterproof grade has become, sudden rain is all right!
Outdoor usable!
● Angle adjustment is possible
The vertical angle of the light is so convenient that it can be adjusted to 180 degrees!

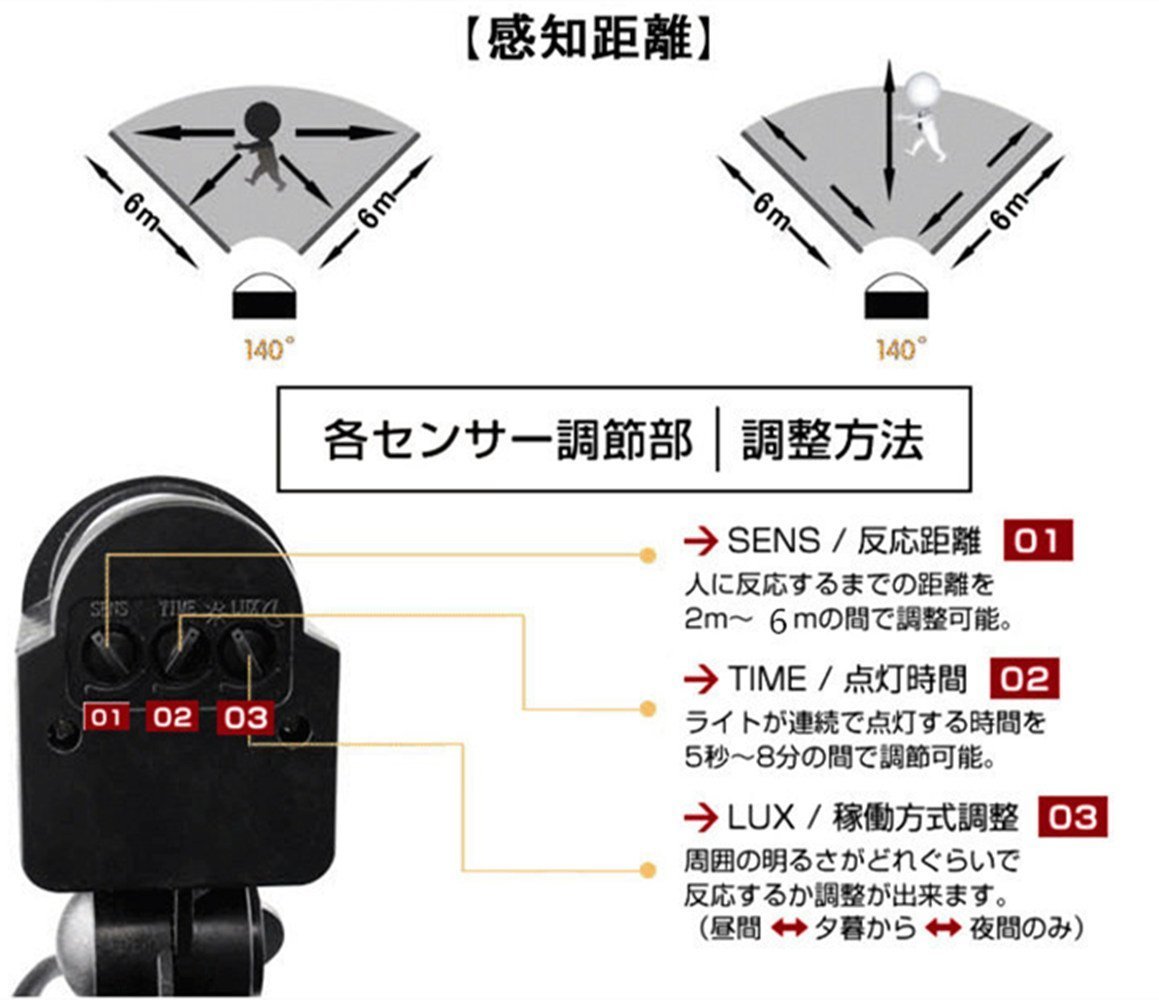

LUX operation method adjustment
You can adjust how much the ambient brightness reacts.
t The sensor can be operated 24 hours a day by turning it to "sun", and the sensor will react only at night when turned to "moon".
TIME lighting time adjustment
Adjustable time for lights to light continuously in 5 sec - 1 min
SENS sensing distance
The distance to react a person can be adjusted between 2 m - 6 m.
Notes
It is not intended to turn on / off automatically by sensing light.
When the air conditioning equipment such as a cooler is in the vicinity, since the environmental temperature always changes, the human sensor may not respond properly.
Main applications
LED floodlight signboard light parking light flood light scenery lamp tree, shop walls and other light up lighting!
Used for public places, parking lots, offices, exhibition halls, work lights Parking lights, sign lights, street lights, parks, halls,
Entry night light, used as a town interior security light!
Features:

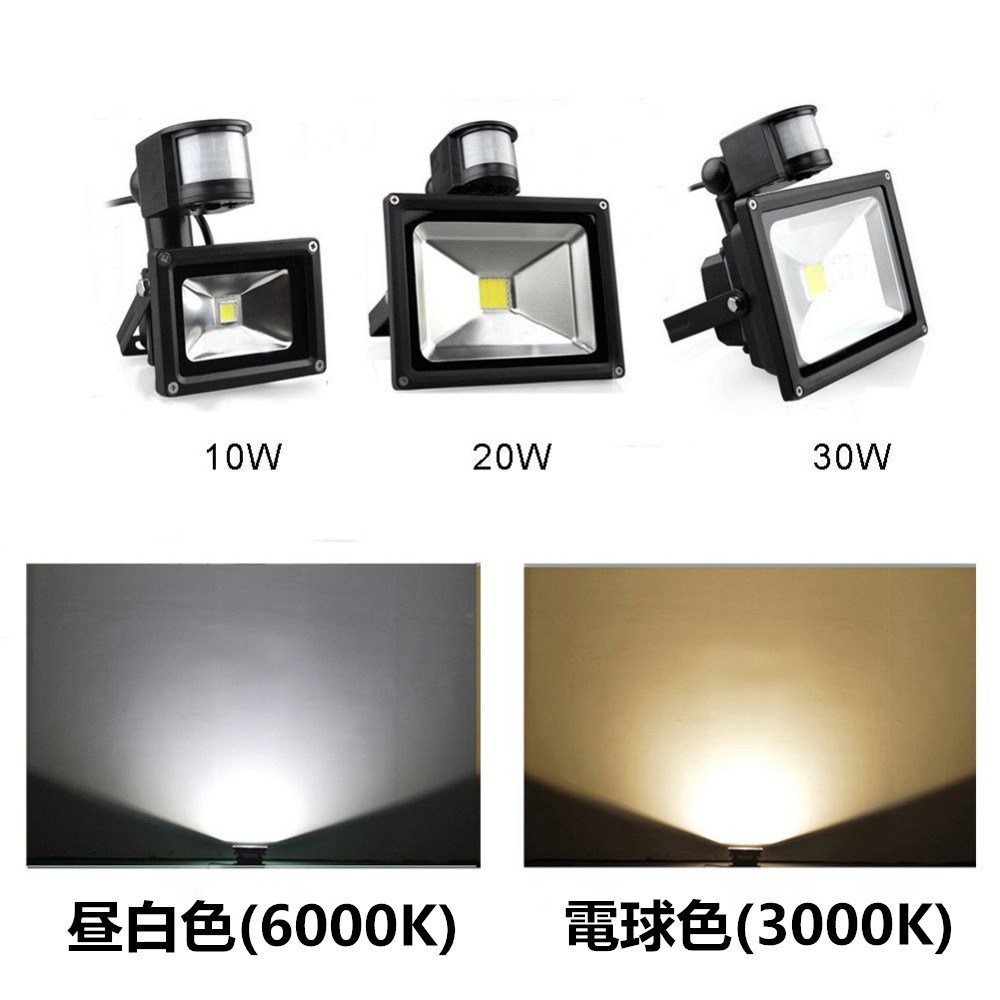

- ● Power consumption: 10 W, "20 W", 30 W There are 3 types ● Luminous flux value: 1800 Lm ● Wiring setting: minus wire, brass wire, earth wire

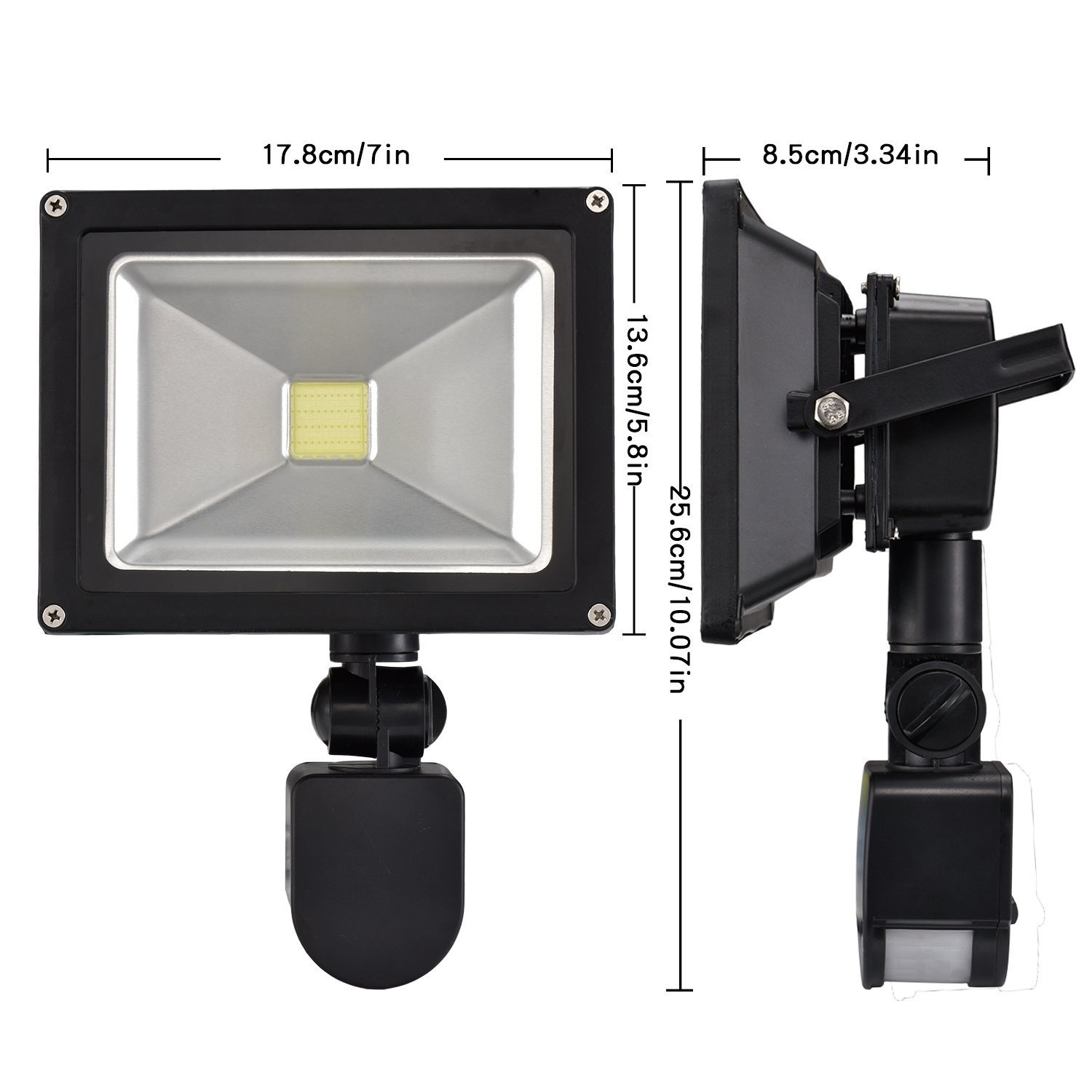

- ● Color temperature: 3000 K, (bulb color) ● Size: 18 * 14 * 10 cm ● Weight: 0.85 kg ● Wiring cord: 30 cm
- ● Voltage: AC 85-265V ● Irradiation angle: 120 ° -150 ° ● Waterproof class: IP65 ● Built-in: Constant current power supply
- ● Voltage: AC 85 - ● Electricity is leaking in electric appliances Even if you touched by a human hand, if the earth is grounded, that electricity will flow through the earth wire to the earth (ground) and you will not get an electric shock
- ● Waterproof class: IP65 ● Color temperature: 3000K, bulb color
- ● If there is something unknown about the method of using the product, or if a defective item comes out, please do not hesitate to contact us here.
Product information:
Shipping Weight: 911 g
Package Dimensions: 10.69 x 19.20 x 19.71 cm
Customer reviews from Japan:
Can be used properly (past tense)
It was a set of 2, but for some reason the box was a completely different design w One is a cosmetic box like to line up at the shop, and the other is a brown box with a light illustration written like a supplier buys was. The contents were the same. Since the fixed stay can only swing in the vertical direction, depending on the installation location, the direction of the light can not be changed freely. Sensor can move Kunekune apart from light. The amount of light is so high, I think that 10W type is enough if only for use as crime prevention purpose. It looks like brightness equivalent to 100 W bulb at 10 W. The instructions are only a small piece of paper written in English. There are three wires exposed for wiring, yellow is not used, and blue and brown are connected to the power cord for use. Additional notes. . Three months have passed since use. It was the operation frequency whether it goes on or off once a day, but it turned out to flash like a strobe at about 0.5 second intervals pointed out in reviews of other people. However, on the contrary, it may be conspicuous on the aspect of crime prevention. Since the www 30W type is too bright, I will change this to 10 W type on this machine.
Three purchases, one was broken
I purchased three items of this product. The two worked normally, but one did not light, I decomposed the inside and examined it. As a result, the power supply (AC 110 to 265 V → DC 25 to 38 V) was broken. In addition, it was a ground wire, but nothing was connected. Even if I buy parts, it is about the same or even higher, so I do not regret that I bought it, but I think that it is necessary to open the inside and check before using it.
Very bright.
Because it has a dial switch as to whether it will illuminate when the surroundings are bright, it can be lit only at night. The difficulty is to be able to swing only up and down. Also, since metal fittings for fixing to walls etc. are not attached, ingenuity is necessary depending on installation location. I wanted to move left and right, so I rotated 90 degrees and set it on the wall. Also, because it reaches with a power cable exposed, you need to buy an outlet plug and attach it. Extension cable is also necessary because cable is short.
It is solid in proportion to the price
It reacts properly, it lights it properly. It is possible to adjust the lighting time and the sensitivity of the sensor, and it is in good condition. There was also in the review of the other, but because the power line is short and the plug is not attached, we reduced one star.
