| | 300Mbps Wireless N USB ADSL2+ Modem Router
TD-W8968 Highlights: - High speed DSL modem, NAT router and wireless access point in one device providing a one-stop networking solution
- Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
- USB 2.0 port supports Storage Sharing (Samba or FTP), 3G Modem Sharing, Media Server, Print Server and multi accounts
- Supports the latest Internet Protocol IPv6 to future-proof your network
- Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
- Wireless Schedule makes it possible to turn your WiFi On/Off according to your own schedule
- IP based Bandwidth Control makes it easier for you to manage the bandwidth of devices that connected to the modem router
- Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off
- Easy one-touch WPA wireless security encryption with the WPS button
- Easy Setup Assistant with multi-language support provides a quick & hassle free installation
- SPI and NAT firewall protects end-user devices from potential attacks from the Internet
- WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
- One-stop IPTV setting solution makes it easier to set up your IPTV
- Annex M doubles the upstream data rate
- Auto-reconnect keeps user online indefinitely

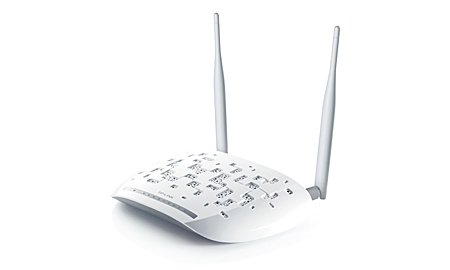

What This Product Does TP-LINK’s TD-W8968 300Mbps Wireless N USB ADSL2+ Modem Router is an incredibly robust all-in-one device allowing users to access high-speed internet connection via ADSL or Ethernet WAN (EWAN) using its interchangeable LAN/WAN port and share it wirelessly at 300Mbps wireless 802.11n speeds. With its multi-function USB port, users can share printers, files and play media across the local network or access files from attached USB storage across the internet using the TD-W8968’s FTP server function.
|
|
|
|---|

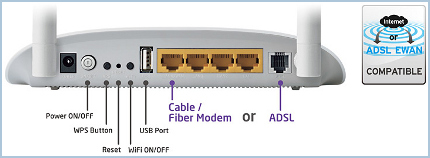

Multifunction USB Port - Easy Sharing Use the TD-W8968’s multi-functional USB 2.0 port to share files with smart devices that are linked to the local network. The File Transfer Protocol function allows you to easily send important documents to other computers over the Internet. Now, there will be no delays in meeting deadlines at work. | Interchangeable LAN/WAN Port Use the interchangeable LAN/WAN port to switch from your ADSL connection to a cable or fibre service. This way, if one mode of connecting to the Web fails, you'll still be able to surf the Internet with another. | All-in-One Device The TD-W8968N acts as an ADSL2+ modem, a NAT router and a 300Mbps wireless N access point. So, you can access a high-speed, wireless internet connection without buying different devices. |
|
|
|
|
|---|
300Mbps Wireless - More Power to You You can play online games or stream HD videos without interruptions as this router is compliant with the 802.11n wireless networking standard. It also comes with four megabit LAN ports. | IP QoS Thanks to this feature, non-critical applications won't downgrade your network's performance. | IPv6 Ready IPv6 provides more IP addresses in contrast to IPv4, its predecessor. This feature makes connecting to new devices in the future possible. | Guest Network Guest Network Access allows your guests to safely access the Internet through your network. |
| Hardware Features | | Interface | 4 10/100Mbps RJ45 Ports
1 RJ11 Port
1 USB 2.0 Port | | Button | 1 Power On/Off Button
1 WPS Button
1 Wi-Fi On/Off Button
1 RESET Button | | External Power Supply | 12VDC/1A | | IEEE Standards | IEEE 802.3, 802.3u | | ADSL Standards | Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1 | | ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) | | ADSL2+ Standards | ITU-T G.992.5 | | Dimensions (W x D x H) | 7.7 x 5.1 x 1.4 in. (195 x 130 x 36 mm) | | Antenna Type | Omni directional, Fixed | | Antenna Gain | 2 x 5dBi | | Wireless Features | | Wireless Standards | IEEE 802.11b, 802.11g, 802.11n | | Frequency | 2.400-2.4835GHz | | Transmit Power | <20dBm(EIRP) | | Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering | | Software Features | | Quality of Service | Bandwidth Control | | Security | NAT Firewall
SPI Firewall
MAC / IP / Packet / URL Filtering | | Management | Web Based Configuration(HTTP)
Remote management
Telnet management
Command Line Interface
SSL for TR-069
SNMP v1/2c
SNMP over EOC
Web Based Firmware Upgrade
CWMP(TR-069)
Diagnostic Tools | | Port Forwarding | Virtual server, DMZ, ACL(Access Control List) | | VPN Pass-Through | PPTP, L2TP, IPSec Pass-through | | ATM/PPP Protocols | ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs | | Advanced Features | Ethernet WAN (EWAN)
Guest Network, Wireless Schedule
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt
Dynamic Host Configuration Protocol (DHCP), DHCP relay
Network Address Translation (NAT)
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional)
DNS Relay, DDNS
IGMP snooping V1/2
IGMP Multicast
UPnP | | USB Sharing | Storage Sharing
FTP Server
Media Server
Print Server | | Others | | Certification | CE, FCC, RoHS | | System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux. | | Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| |
