Product Description
- reverse connecting protection,etc.
4. The smart charging indicator shows charging process directly,
which facilitates users to manage the current of the battery.


Specification:
1.Product Name:battery charger 6A
2.Model:SON-1206D
3.Input Voltage:110V-240V
4.Output Voltage:12V
5.Rated Frequency:47-63HZ
6.Charger Current:6A
7.Charger Mode:Three-phase
8.Full load efficiency: 87%
9.Working Temperature:-40~ 95

Three-phase Charging Mode:
Constant current mode:
When the voltage of the battery is lower than the value set by the charger,
the charger will work under the constant current mode and supply
the constant current for the battery.

Constant Voltage Mode:
Using the pulse width modulation(PWM) tech to control the
charging current and output voltage of the charger which ensures
the battery is fully charged and avoids over charging.

Floating Charge Mode:
When the voltage of the battery is approaching the value of the
constant voltage mode, and the current will cut down to the given
current gradually, that means the battery power is full, then the pilot
lamp will turn green and the fan will stop working. The charger will
turn the mode into floating charge mode automatically. At this moment,
the battery can be stopped charging or keep on floating charge for half an hour.

Functions:
1. Evaporation Function
2. Automatic Trickle Function
3. LCD Display
4. Soft start function
5. EU plug or Free plug adapter
6. Adaptive battery: 12ah ~100ah
Note:
The product comes with a free adapter


Package Included:

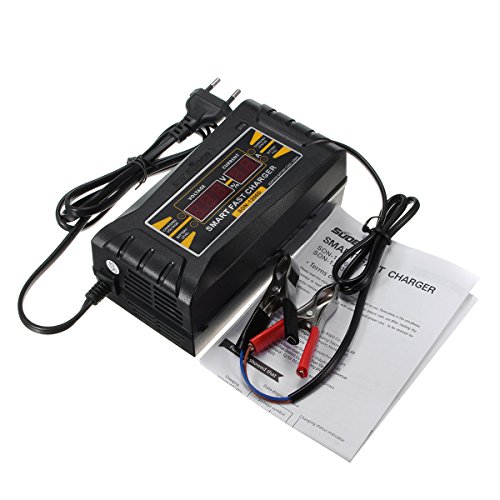

1 X Battery Charger
1 X User Manual
