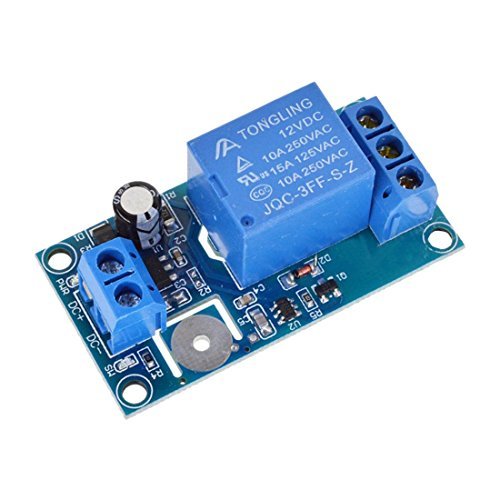

TOOGOO(R) 2pcs 1-Way Touch Module with Relay Touch Switch Capacitor Touch Button Low Power Touchpad
Positive and negative can be used as a touch surface, can replace the traditional touch button
4 ？3MM screws positioning holes, easy to install
Indicator light: red LED, power indicator; green LED, touch that is lit;
Touch area: blank circle area, the finger can touch the trigger; can also be used to trigger the trigger line
Output type: directly connected AC 220V 10A or DC30V 10A load.
Positioning hole: 4 M2 screw positioning hole, aperture 3mm, the module easy to install positioning
Electrical parameters:
Voltage version quiescent current operating current
5V 2.5mA 60mA
12V 5.7mA 40mA
24V 5.7mA 26.6mA
Relay contact capacity: 250V 10A (AC) or 30V 30A (DC) (theoretical maximum load capacity), then the AC power recommended in the 1500W below, then DC 200W or less.
Module Interface:
Input section:
VCC: Connect the power supply positive (according to the relay voltage)
GND: Connect the power supply negative
Output section:
Often start (NO): relay normally open, the relay is not when the pull, and the public off, when connected with the public connected;
Common (COM): common to the relay;
Normally closed (NC): The normally closed end of the relay. When the relay is not engaged, it is connected to the common terminal and disconnected from the common terminal.
Package Contents:2pcs x Relay touch module
