Item Descriptions:

Video analytic crime prevention and surveillance camera capable of detecting moving subjects through glass

"DVR - SGUARD 01" is a crime prevention and surveillance camera that detects the sudden change of movement and brightness of people and things and automatically records it in the built - in flash memory of the main unit.

Motion is detected by video analysis and automatic recording.

Night shooting possible with infrared LED!

The greatest feature of this product is our company's first security camera product

Equipped with motion detection function by image analysis

, Motion object detection could not be done so far

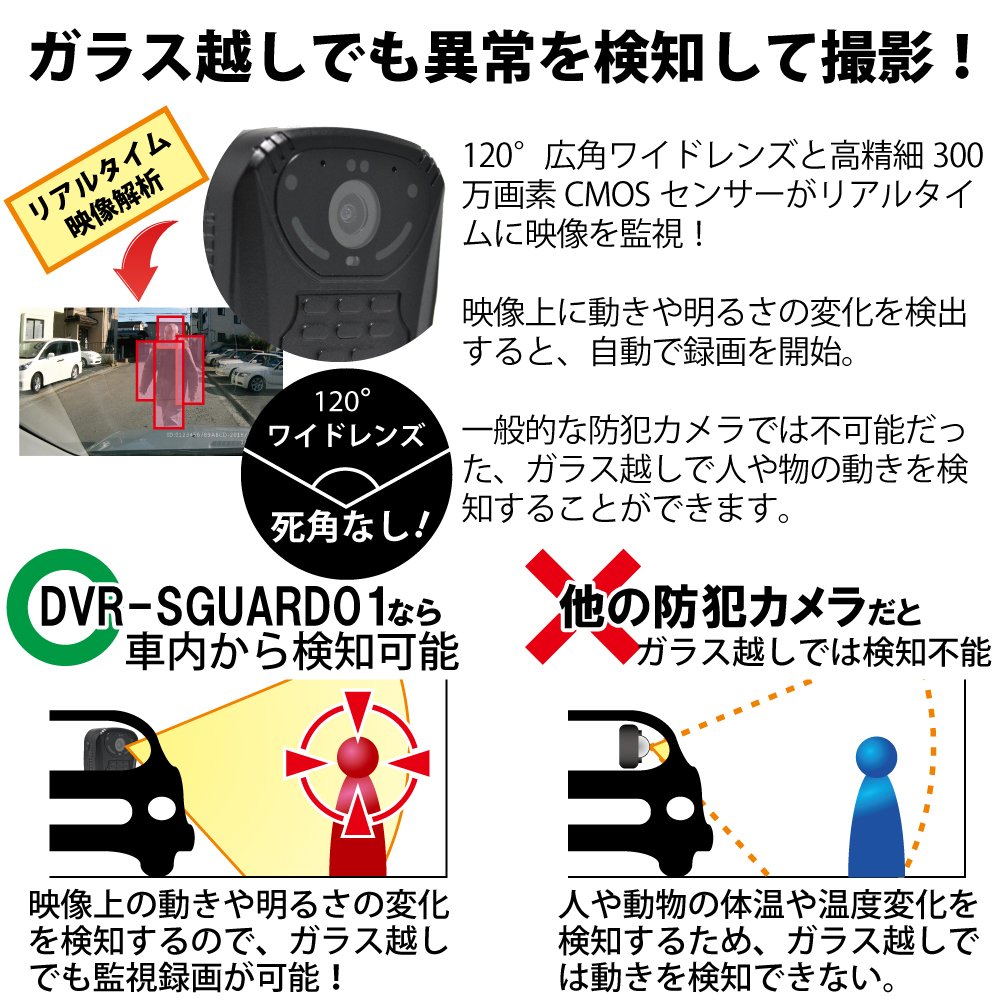

It is possible to detect anomalies over glass and start recording

have become.

For example, it is possible to monitor and record mischief damage of a car of yourself from the inside of the car or to detect and detect the garden side from the window glass of the room.

■ It is possible to take night photography with infrared LED

The illuminance sensor detects the surrounding brightness, and the infrared LED is automatically lit depending on the shooting situation.

Monochrome shooting can be performed up to 8 meters ahead in dark places such as nighttime.

※ Infrared LED turns on monochrome image.

■ Waterproof / dustproof, built-in battery also safe for outdoor use

Waterproof / dustproof design equivalent to IP54.

Built-in 2,600 mA large capacity, it can be used outdoors.

It also supports power supply operation from a mobile battery for smartphones.

■ Built-in 32 GB memory and no recording media required

Built-in 32 GB flash memory inside the main body.

There is no need to prepare memory such as SD card separately.

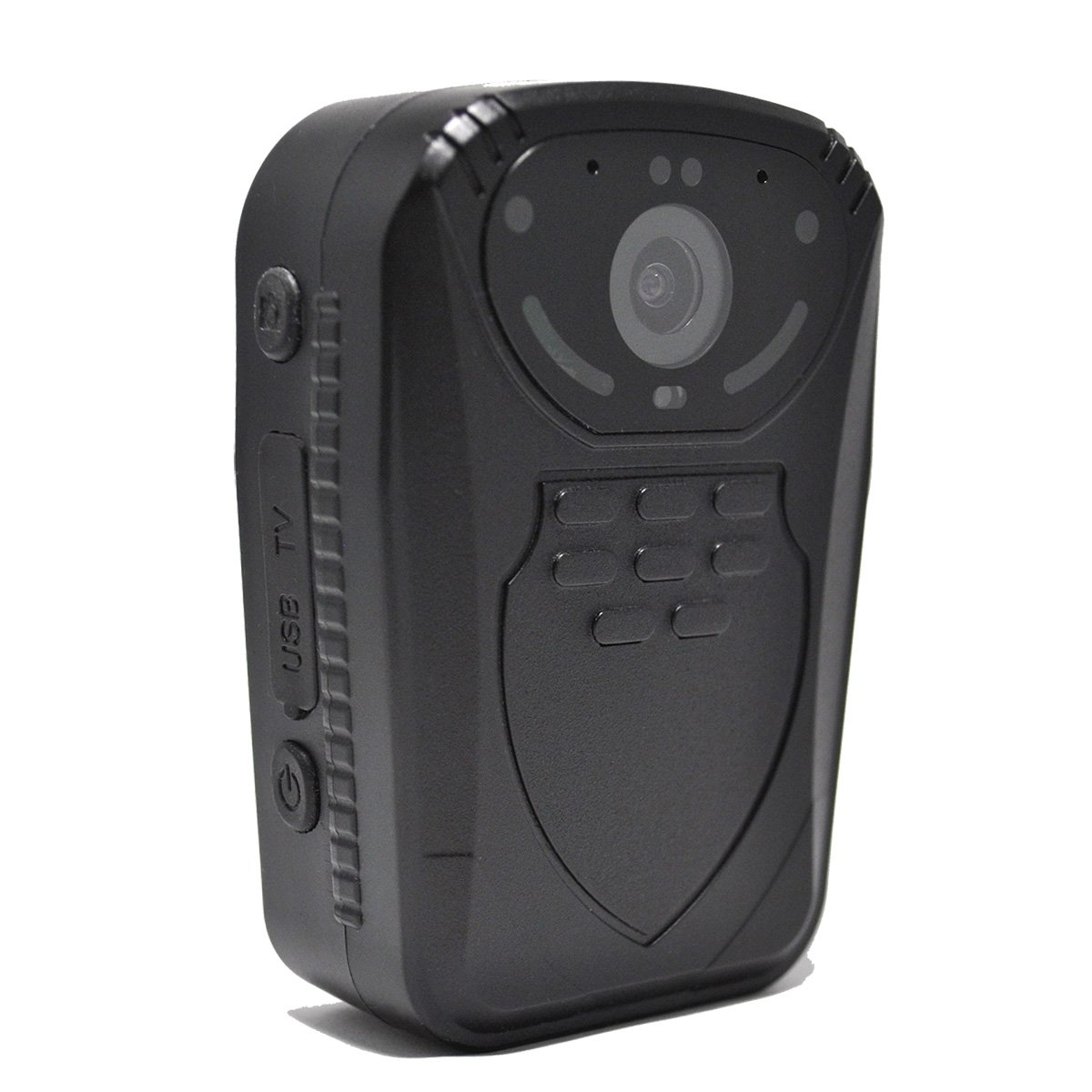

Compact design not troubling installation location.

Equipped with a large capacity 2600 mA battery!

Compact design not troubling at the place!

Because it fits easily in the bag, it also helps crime prevention on traveling destinations.

The included clip stand rotates 360 ° and can change the angle up to 150 °.

Since it is a clip type, it can be easily installed in various places.

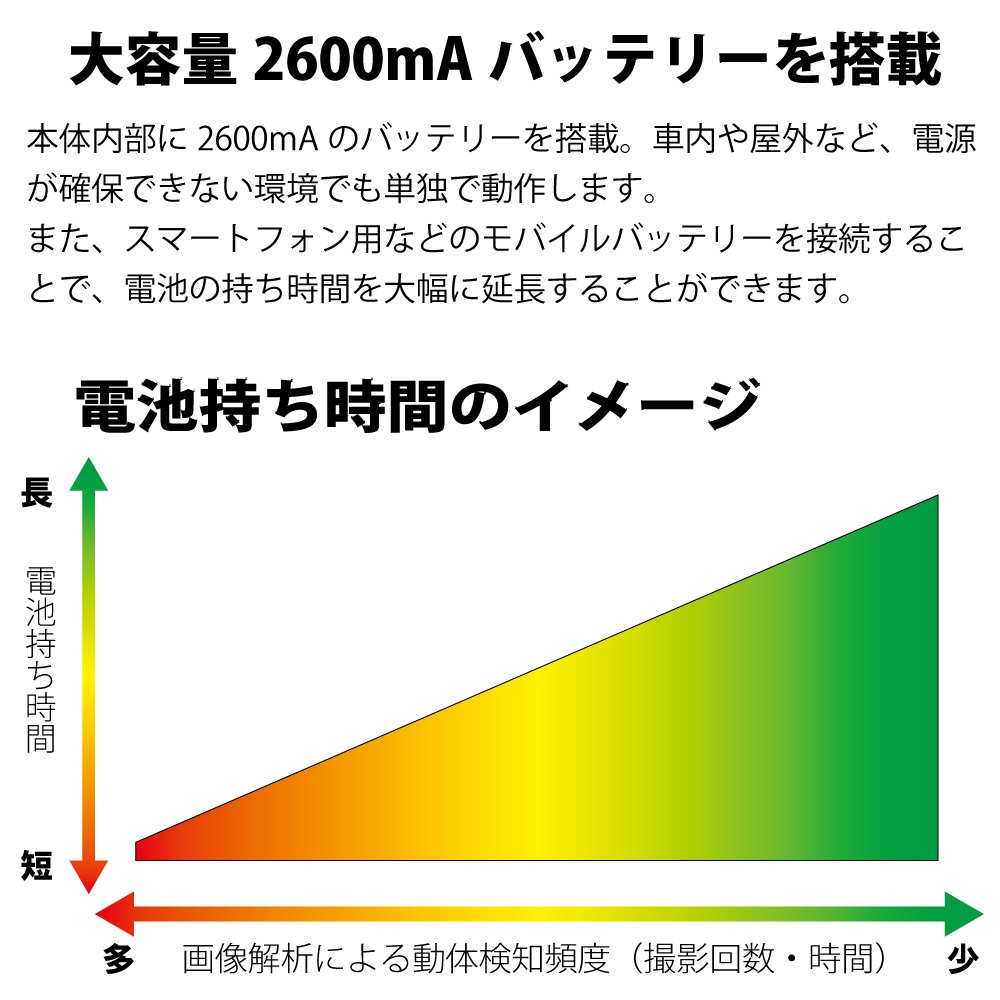

A 2600 mA battery is installed inside the main body.

It works independently in environments where power can not be secured, such as in the car or outdoors.

Also, by connecting a mobile battery such as for smartphones, you can significantly extend the battery's holding time.

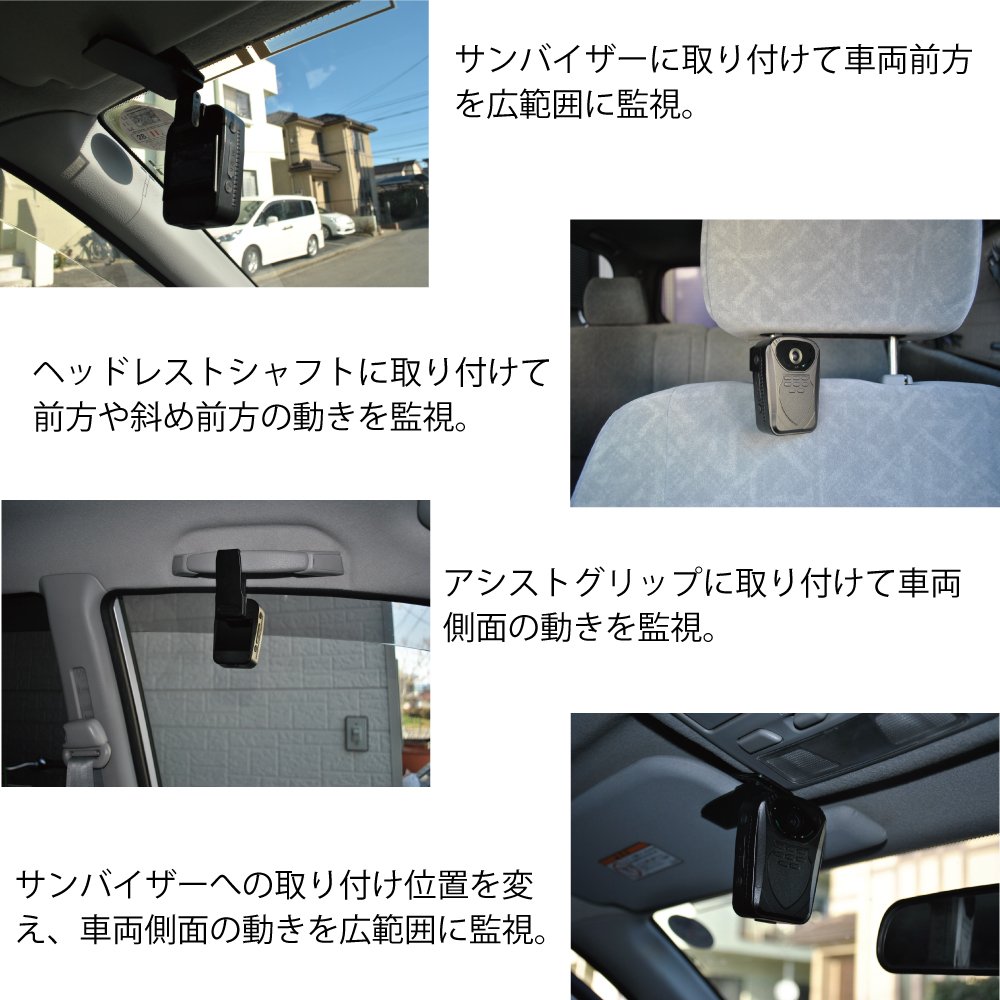

Installation example / Product specification

【 Product Specifications 】

Model number: DVR-SGUARD 01

Image sensor: 1/2 inch 3 million pixel CMOS sensor

Lens: 120 ° wide angle lens

Focal length: 0.3 m to ∞

Video size: 1920 x 1080/1440 x 1080/1280 x 720/848 x 480

Frame rate: 29.97 frames

Video Specifications: MP4 Format (Video: H.264 MPEG-4 AVC / Audio: AAC)

※ Only for images.

Audio is not recorded.

Photo size: 4608 x 3456/4000 x 3000/3200 x 2400/2048 x 1536

Photo specification: JPEG format

Liquid crystal display: 2 inches * Various settings, confirmation of recorded data can be played back

Infrared LED (IR): 6 lights / automatic lighting with illuminance sensor

Infrared irradiation range: about 8 m horizontal: about 60 ° vertical: about 60 ° range

Time stamp: Automatically synthesize date and time on video

Built-in memory capacity: 32 GB * Use approximately 29.95 GB as the recording capacity

Body size / weight: Approximately 58 mm (W) x 28 mm (D) x 84 mm (H) / approximately 111.5 g

Built-in battery: 3.7 V 2600 mAh

Battery operation time: Up to about 12 hours * It varies greatly depending on the installation environment and operating conditions.

Charging time: Approximately 7 hours to full charge

Power supply specification: DC 5 V / 500 mA USB mini B connector

* Supports USB charge and power supply operation from mobile battery

Video output terminal: HDMI mini output terminal

Product structure: main unit, clip stand, clip, USB cable (USB A - USB mini B), instruction manual

Product warranty: 6 months from date of purchase

※ The shooting of the security camera varies depending on the installation environment.

※ All of the numerical values ​​of this machine are notation with maximum value.

* Please be aware that the function may fall below the numerical value depending on the installation environment.

Features:

• Please enter model number Confirm this is compatible:
• "DVR - SGUARD 01" is a crime prevention and surveillance camera that detects the sudden change of movement and brightness of people and things and automatically records it in the built - in flash memory of the main unit.
• Surveillance recording over the glass that can not be done with conventional general heat source sensor or PIR sensor is possible.
• For example, it is possible to monitor and record mischief damage of a car of yourself from the inside of the car or to detect and detect the garden side from the window glass of the room.
• It is also possible to shoot at night with an infrared LED.
• The illuminance sensor detects the surrounding brightness, and the infrared LED is automatically lit depending on the shooting situation.
• Monochrome shooting can be performed up to 8 meters ahead in dark places such as nighttime.
• ※ Infrared LED turns on monochrome image.
• Waterproof / dustproof design equivalent to IP54.
• Built-in 2,600 mA large capacity, it can be used outdoors.
• It also supports power supply operation from a mobile battery for smartphones.
• Built-in 32 GB flash memory inside the main body.
• There is no need to prepare memory such as SD card separately.
• Please refer to https: //www.youtube.com/watch? V = tUi0KPr6VXs for sample movie taken.

Product information:

Shipping Weight: 381 g

Package Dimensions: 6.60 x 14.81 x 18.59 cm
