Product Description
LiLiLan Mini HDMI to RCA/AV Converter Adapter

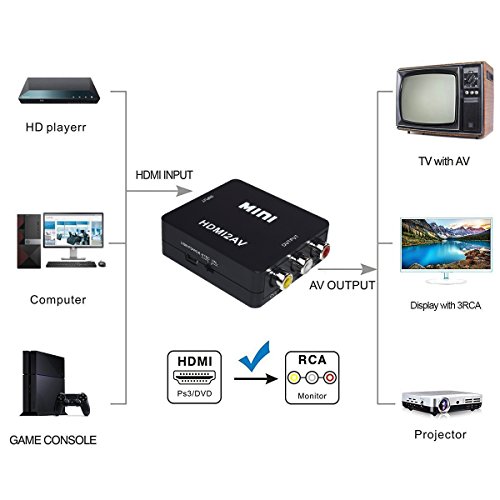

The Mini HDMI to RCA/AV Converter converts HDMI video/audio signal to AV(CVBS) composite video signal and the FL/FR stereo audio signals, supporting DVI system sideline signals.
It helps users to convert high quality of HDMI video signal into normal CVBS signal(standard-definition 480i,576i), used on devices such as TV, VHS VCR, DVD recorders,etc, supporting two formats of NTSC and PAL.

Features?:
1.Plug and play without drivers,portable and flexible.
2.Output audio is synchronous with video.
3.High bandwidth capability support 1920x1080@60Hz.
4.Support NTSC and PAL two standard TV formats output.
5.Compatible: HDMI 1.3

Specifications:

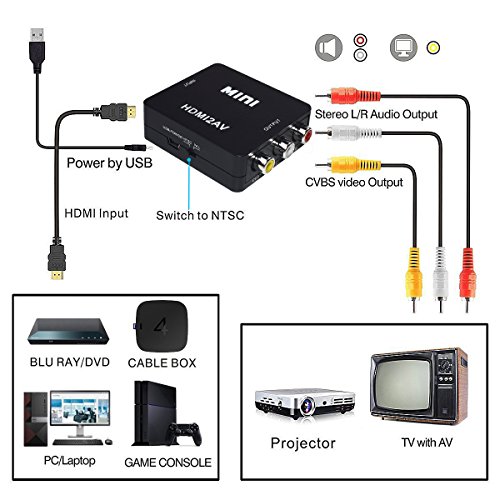

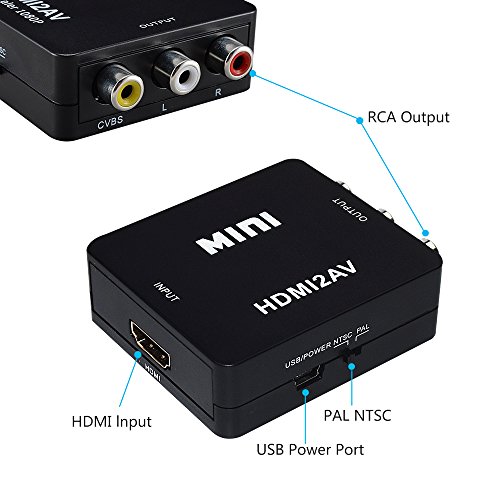

Output ports: 1x RCA (Yellow, White, Red).
Input ports: 1x HDMI.
Product dimension(mm): 66(D)x55(W)x20(H)
Weight: 40(g)

HDMI Input Resolution:
640x480@60Hz,800x600@60Hz
1024x768@60Hz,1280x720@60Hz
1280x1024@60Hz,1360x768@60Hz
1600x1200@60Hz,1920x1080@60Hz
480p/60Hz,576p/60Hz,576p/60Hz
720p50/60Hz,1080I50/60Hz,1080p/60Hz
CVBS output:PAL,NTSC_M,and NTSC_J

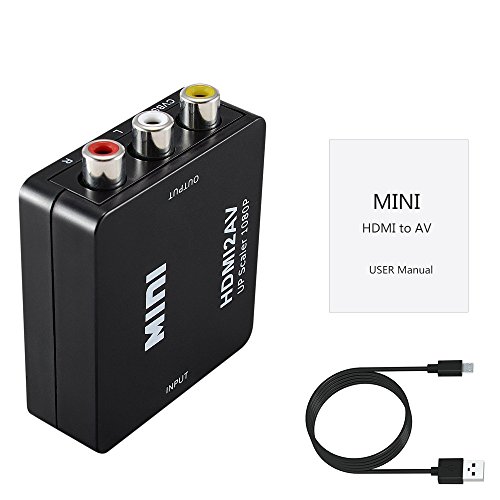

Package content:
1 x HDMI to AV Converter
1 x USB Cable
1 x User Manual

NOTE:
1) Please do connect the power cable with power first to make the unit work before connecting to other ports.
2) Video signal transferring only, unable to improve video quality.
3) HDMI to RCA only, can not be used as a RCA to HDMI Converter.
