Product Description

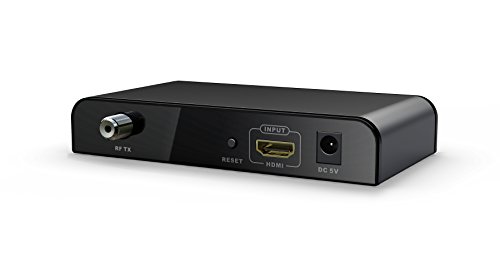

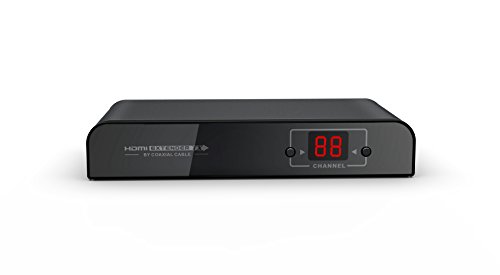

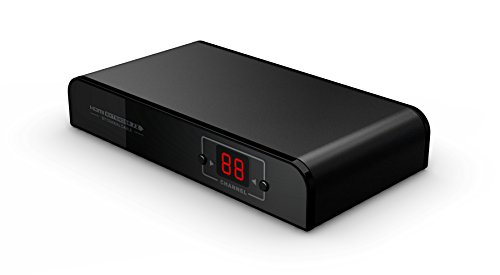

This product is designed to transmit HDMI signal by coaxial cable. Being different from traditional analog CATV signal, it uses 64QAM mode to realize the HD signal to HD digital TV signal conversion and transmit via coaxial cables for long distance; Besides, according to CATV splitter, it is easy to built one to multiple and multiple to multiple video matrix. - With the advantages of good image quality, strong resustance to interference and hundreds channels available, it can be widely applied in CCTV, outer large screen, shopping mall advertisement, media education and digital KVM fields etc.

Specification:
1. Support input port: 480i@60Hz?480p@60Hz?576i@50Hz?576p@50Hz?720p@50/60Hz?1080i@50/60Hz?1080p@50/60Hz
2. Support output port: 480i@60Hz?480p@60Hz?576i@50Hz?576p@50Hz?720p@50/60Hz?1080i@50/60Hz?1080p@50/60Hz
3. Support HDMI graphics resolution: Up to 1920x1080@60Hz
4. Video encoding: H.264
5. Audio encoding: MPEG2
6. Coaxial cable: RG6, RG7, RG11 etc
7. Frequency point: 100-1000MHz
8. Transmission delay: 500ms
9. RF TX output consumption: 0dbm
10. RF conncetor: imperial system(75 ohm Type F)
11. Power Supply: TX:<3.5W; RX:<3W
12. Dimensions (mm): 130(W) X 68(D) X 24(H)

Notes:

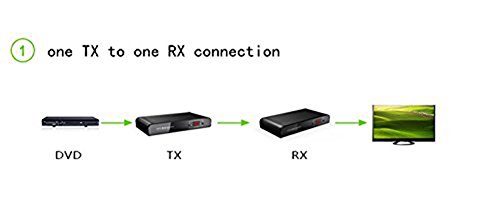

1. This extender requires sender and receiver to work at the same time. One sender can work with several receivers in the LAN, so you can buy some receivers according to your needs.

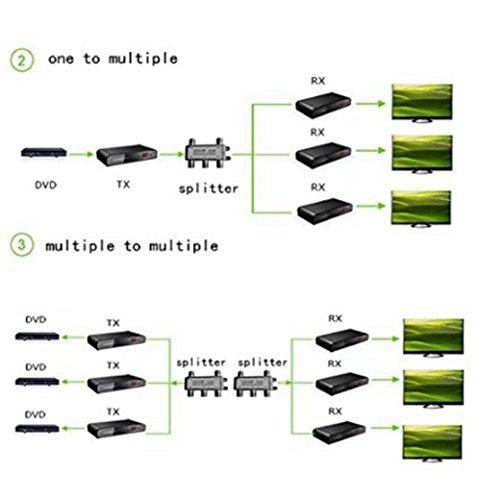

2. Besides, according to CATV splitter, it is easy to built one to multiple and multiple to multiple video matrix.

Package Contents:
1 X HDMI Extender TX unit
1 X 5V DC Power Supply adapter
1 X User Manual
