Item Descriptions:

Product introduction

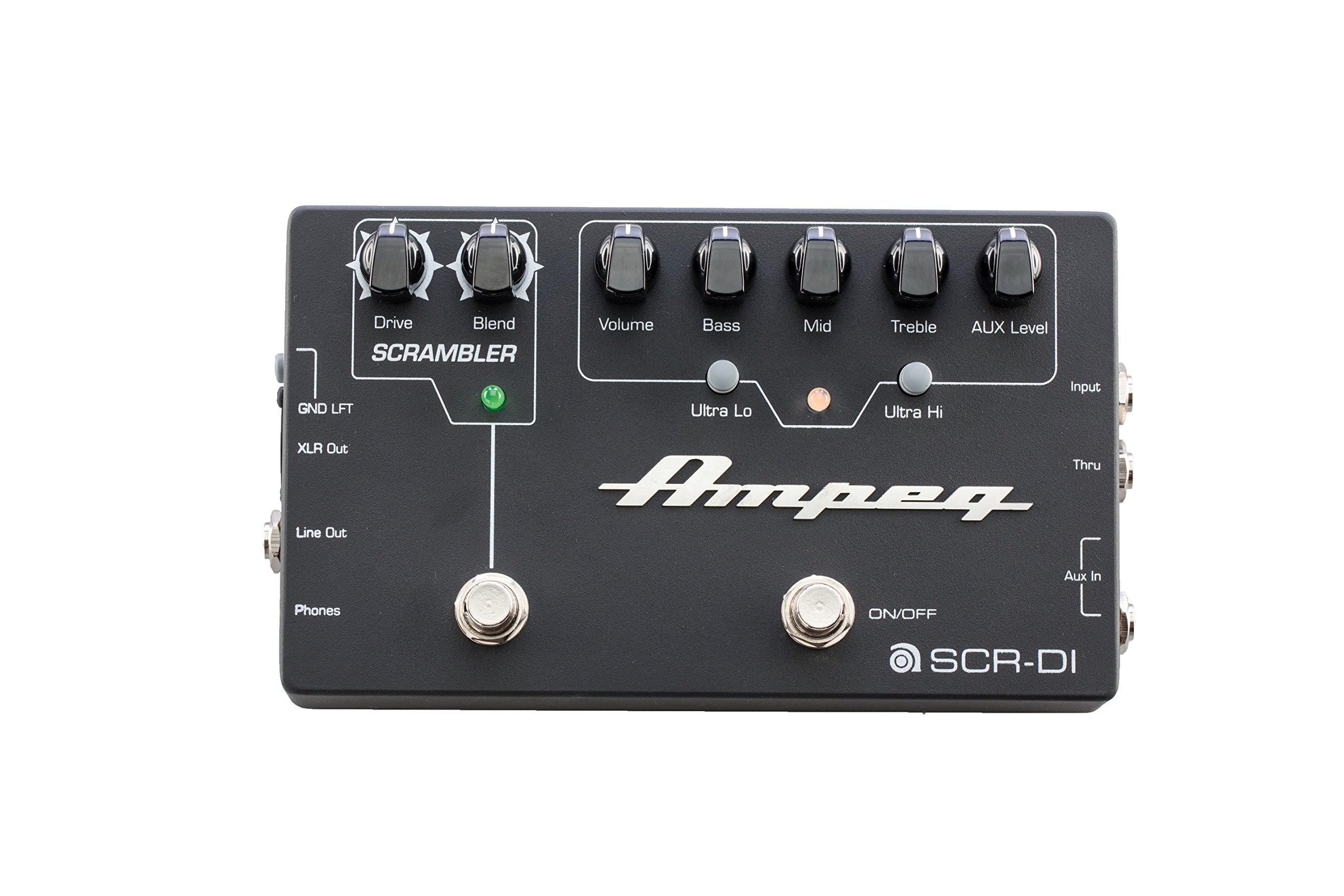

SCR-DI is a base DI with a scrambler overdrive function in addition to the ampeg traditional wide tone preamp section.

In addition to the classic · Ampeg base / middle / treble 3 band EQ, the preamp section has Ultra High / Ultra Low shaping switch.

Also equipped with the latest base scrambler overdrive function to add distortion from overdrive to distortion like vacuum tube amp.

SCR - DI can easily produce your favorite ampeg tone, and you can also send that sound to the PA console as DI.

In addition, it has headphone jack and AUX input with level control, so it can be used as a headphone amplifier.

Since it is a compact size to enter into a gig bag, it is possible to play anywhere easily, connecting portable audio players, etc., while sending Buckin 'track.

Equipped with a -15 dB jumper switch which also corresponds to the active base inside.

Power supply can be supplied using 9 V battery, power supply (optional) as well.

【Specifications】

◆ Signal to Noise Ratio: 90 dB (20 Hz - 20 kHz, unweighted)

◆ Maximum Gain: @ 1 kHz [Input] 24 dB; 45 dB, [Scrambler] in / max., [Aux] input 27 dB

◆ Tone Controls: [Bass] + 14 / -14 dB @ 40 Hz, [Mid] + 5 / - 11 dB @ 500 Hz, [Treble] +16 / -15 dB @ 4 kHz

◆ Power Requirements: [Internal] 9 V Battery, [External] 9 - 12 VDC @ 100 mA

◆ Size: (H x W x D) 56 x 193 x 110 mm

◆ Weight: Approximately 1.2 kg

【Classical · Ampeg · Tone】

■ Ampeg traditional preamp & tone circuit

■ A wide range of Ampeg tones from Portaflex to SVT on one unit DI for base players

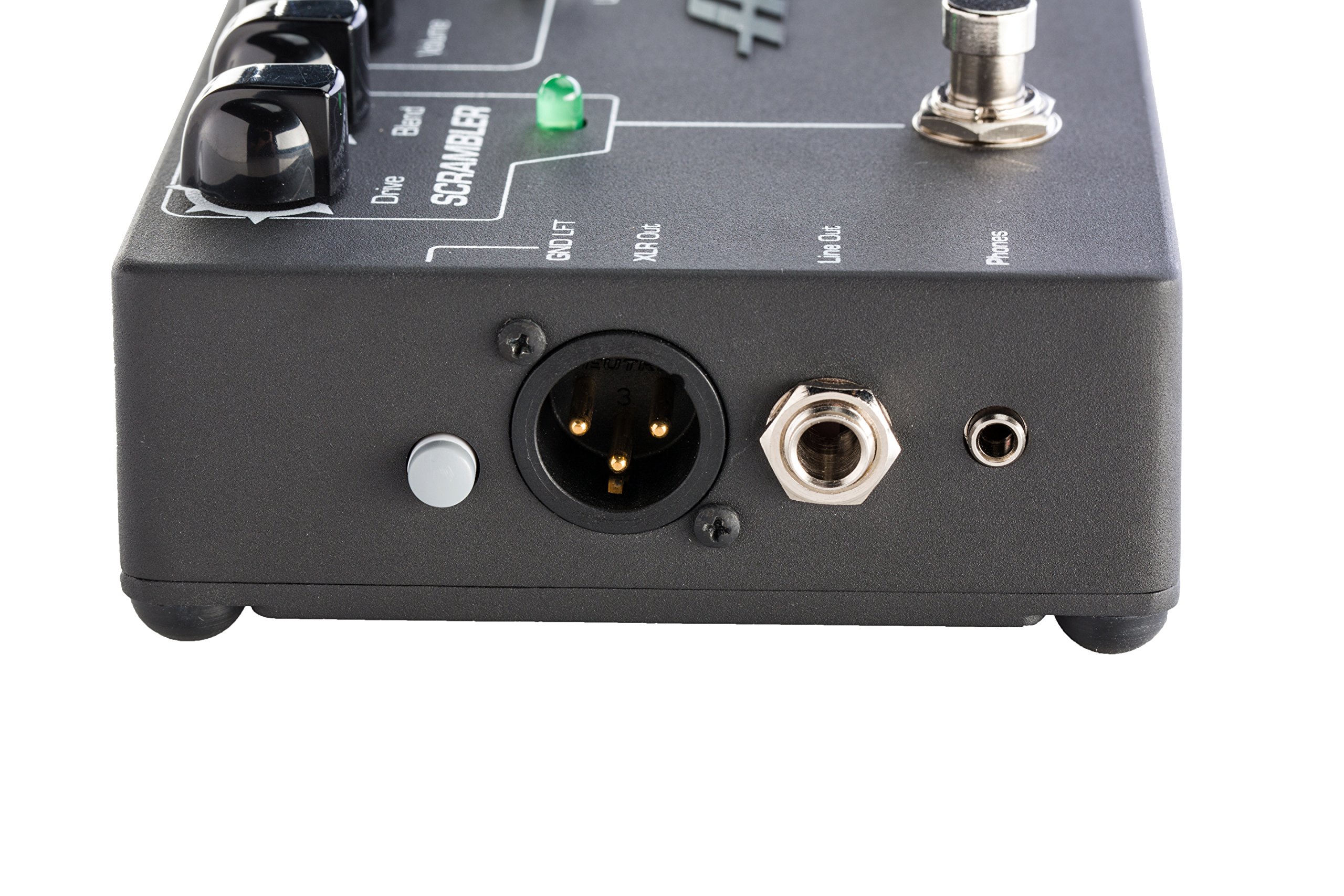

■ Ground lift with switch Balance XLR out equipment

■ 1/4 "unbalanced line-out equipment

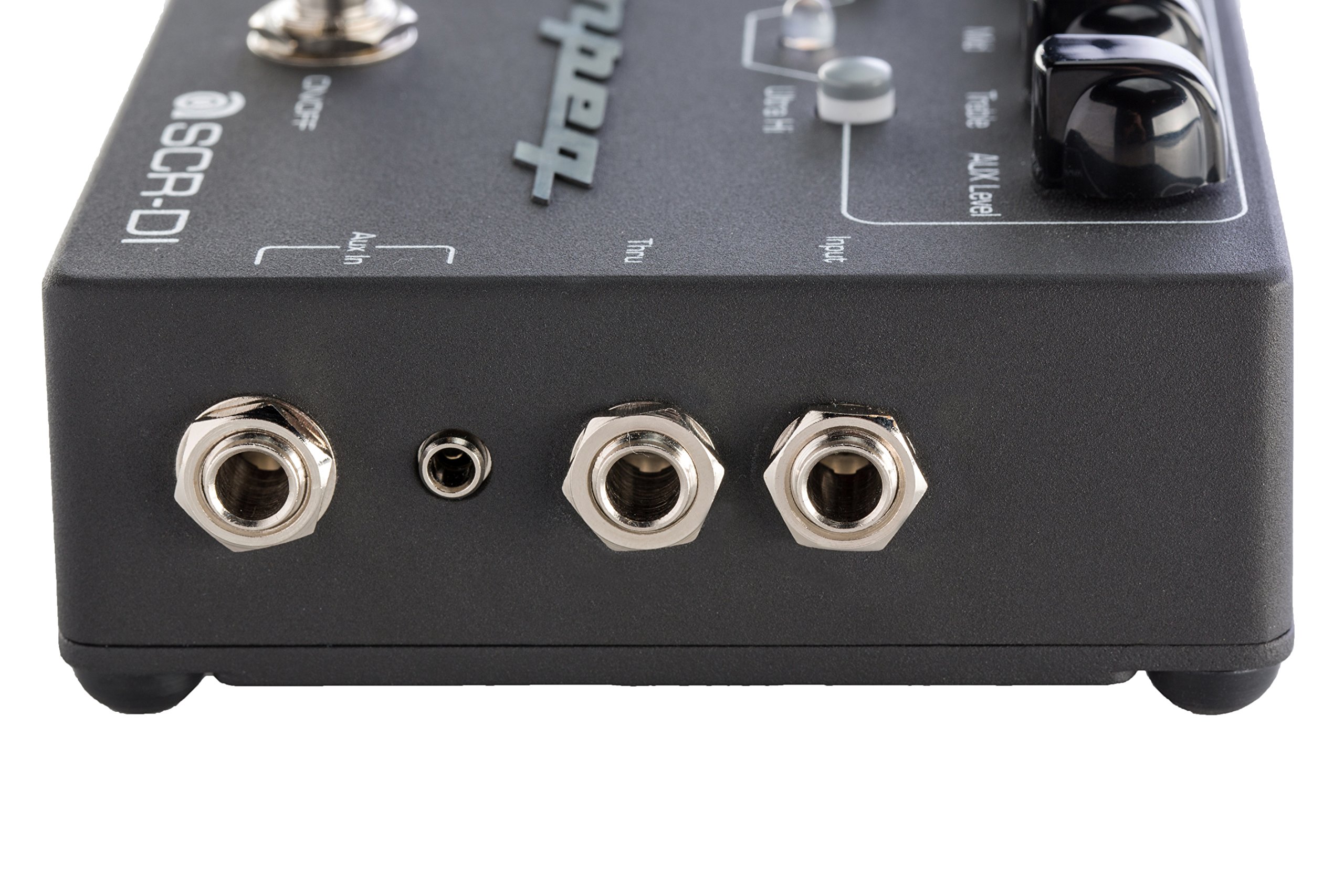

■ 1/4 "throughout equipment suitable for tuner connection Total · tone · control

■ Classical 3 band EQ

■ Ultra High / Ultra Low Shaping Switch

■ Tone section can be turned ON / OFF with foot switch

【Powerful bass overdrive function】

■ The latest base, scrambler, overdrive function inheriting SVT sound

Independent Drive Control and Blend Control

■ Scrambler section can be turned ON / OFF with foot switch

【Durability design】

■ Durable zinc die-cast chassis

Durable metal foot switch

■ Durable leg rubber that is hard to slip even on a violent stage

Attention (Disclaimer)> Please be sure to read

Power supply is sold separately.

Features:

• Please enter model number Confirm this is compatible:
• SCR-DI is a base DI with a scrambler overdrive function in addition to the ampeg traditional wide tone preamp section.
• In addition to the classic · Ampeg base / middle / treble 3 band EQ, the preamp section has Ultra High / Ultra Low shaping switch.
• Also equipped with the latest base scrambler overdrive function to add distortion from overdrive to distortion like vacuum tube amp.
• SCR - DI can easily produce your favorite ampeg tone, and you can also send that sound to the PA console as DI.
• In addition, it has headphone jack and AUX input with level control, so it can be used as a headphone amplifier.
• Since it is equipped with a -15 dB jumper switch inside, it corresponds also to the active base.

Product information:

Shipping Weight: 1202 g

Package Dimensions: 6.86 x 12.95 x 23.11 cm
