Item Descriptions:

size:

No remote control

Product specification

Technical specification

Display: 2.0 inch TFT

Lens: 170 ° wide angle lens

Video format: MP4

Image format: JPG

Audio format: ACC

Connection: USB 2.0

Charging time: about 2 hours

Battery: 900 mAh, 3.7 V lithium battery

Video resolution: 720 P (30 FPS) / 720 P (60 FPS) / 720 P (90 FPS) / 1080 P (30 FPS) / 1080 P (60 FPS) / 2.7 K (30 FPS) / 4 K (30 FPS)

Sound of record: ant

Shrinking time recording: support

Loop recording: support

Slow shooting: 1080P (60FPS) / 720P (90FPS) TG

Photo mode: Single shot / Self-timer / Continuous shooting

Image resolution: 16 M (4608 × 3456) 12 M (4000 X 3000) 8 M (3264 × 2488) 5 M (2590 × 1930) 2 M (1600 × 1200)

Timing: off / 3S / 5S / 10S / 20S

Waterproof: 30 m

Light source frequency: 50 Hz 60 Hz

In-vehicle mode: Supports

PC camera mode: Support (1280 * 720)

Storage format: TF card maximum 64 G (sold separately)

Deo compression format: H.264

Dimension: 59 * 42 * 21.5 mm (L * W * H)

Weight: Approximately 75 g

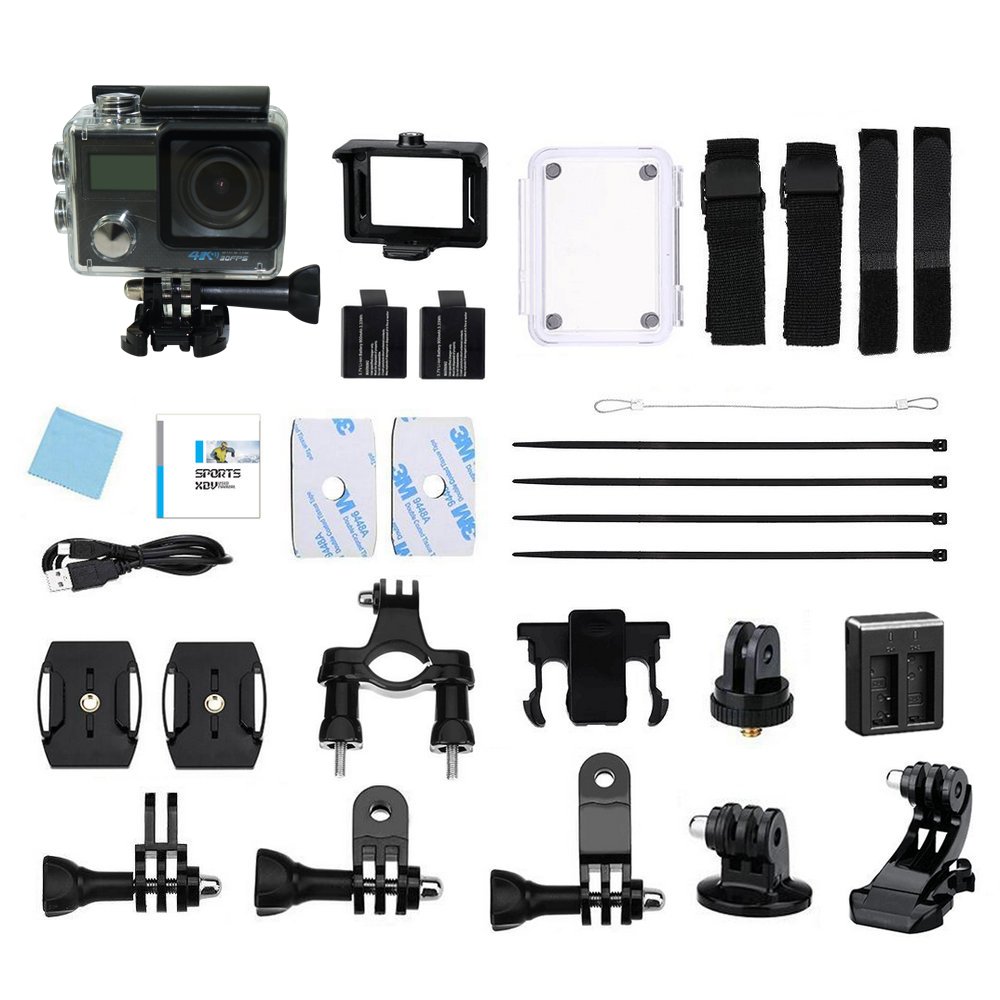

【Package list】

1 * Sports camera 2 * Battery

1 * Waterproof case 1 * Lid of waterproof case

4 * Bandage 1 * Cleaning cloth

1 * Wire rope 2 * 3 m adhesive tape

1 * USB cable 4 * Cable band

2 * Buckle mount base 1 * Bicycle stand

1 * Mounting Krupp 1 * Base

1 * Power charger 1 * Extension arm A

1 * Extension arm B 1 * Extension arm C

1 * J-shaped mount base 1 * bracket

1 * User manual (Japanese)

【Wifi connection method】

Please install "SportsCAM" application on the smartphone before using Wi-Fi.

Note: Android must be installed on Google Play.

IOS smartphone must be installed at the Apple Store.

Connection procedure: Application installation: Smartphone system must be Android 4.1, IOS 7 or higher.

The QR code scan of the XDV application speeds installation completion.

Open the Wi-Fi connection screen of your smartphone and search for "ACTION CAM" on Wi-Fi and connect.

When you open the "SportsCAM" application, you can watch the shooting screen on the screen of the application, shoot video, shoot a camera, check data, download, delete, and share.

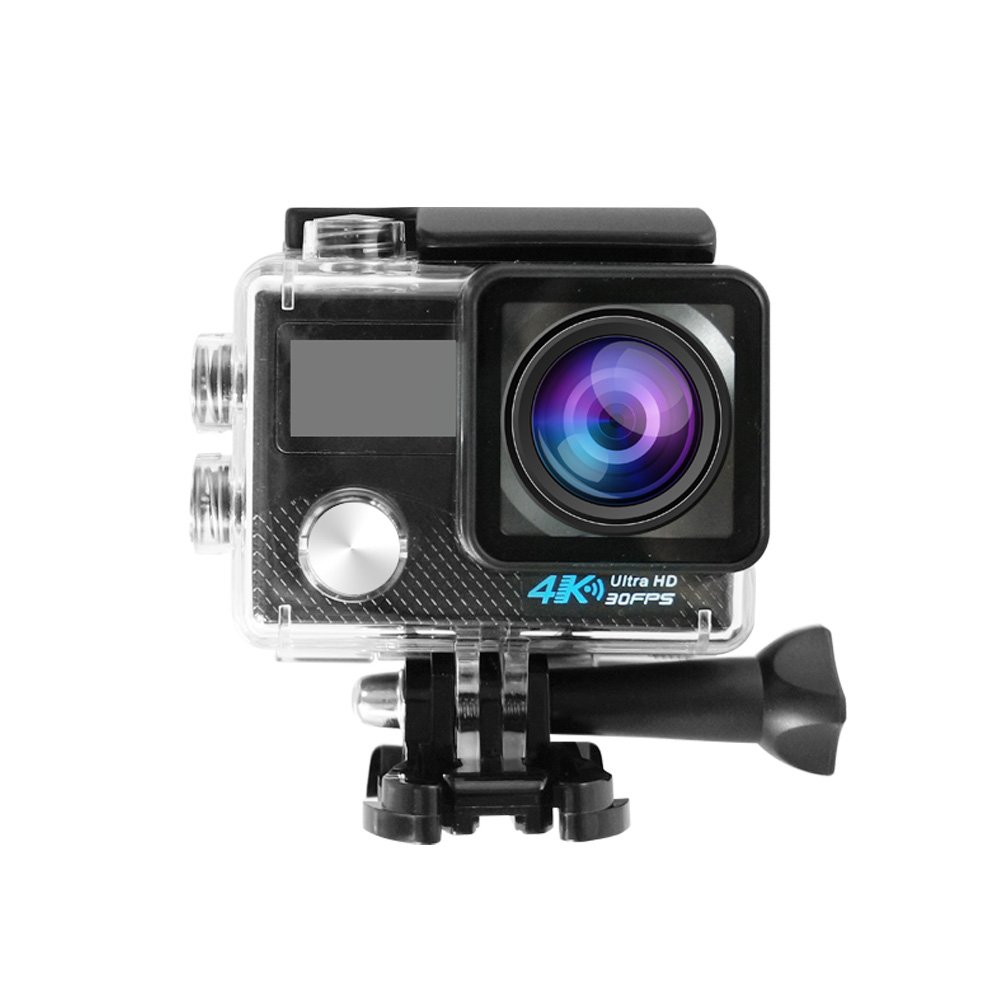

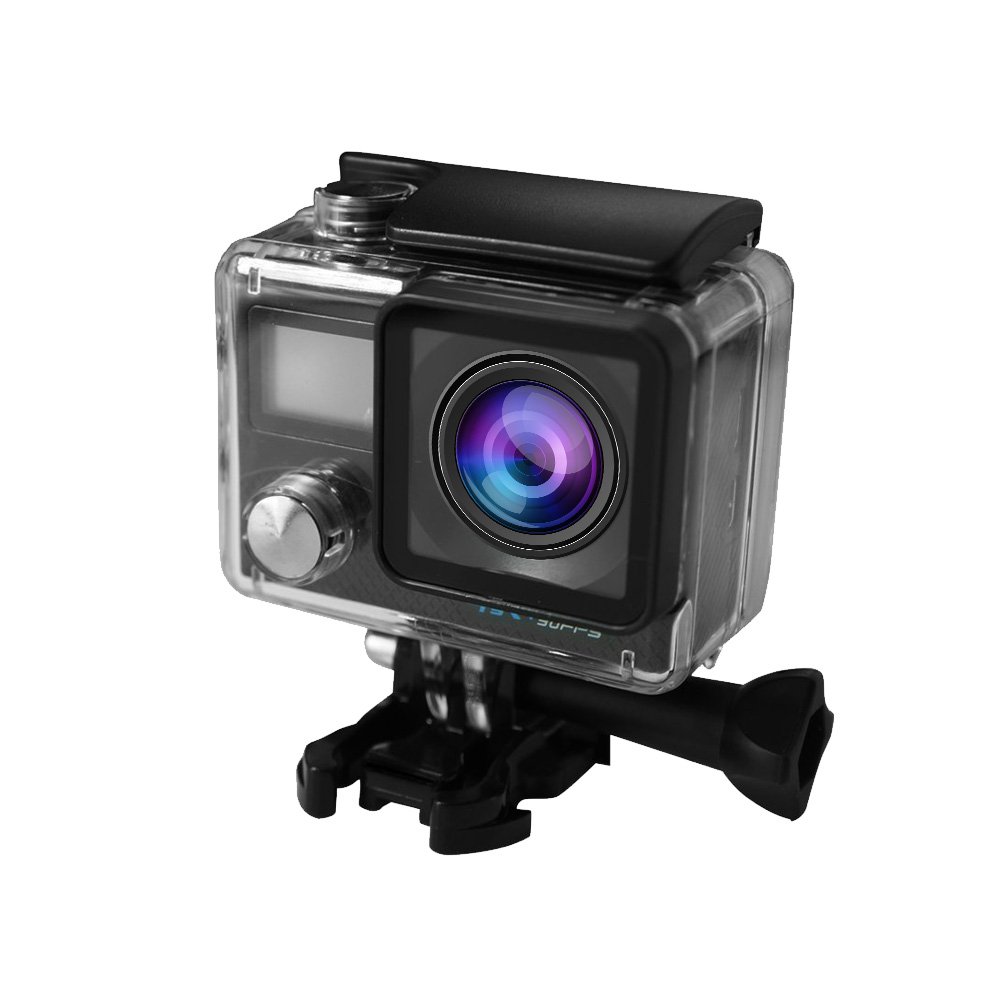

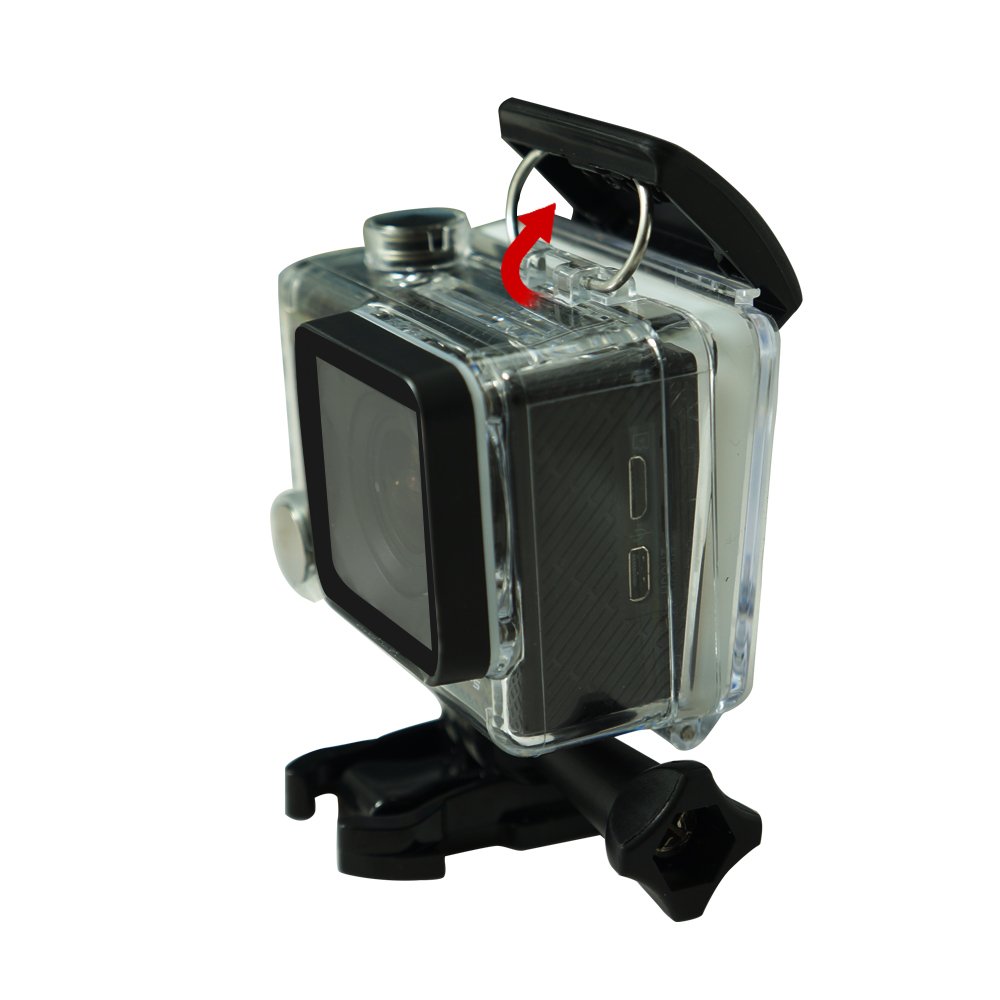

【Waterproof function】

With a waterproof cover that can withstand water depth of 30 m, you can shoot a realistic image with various scenes of sports at the sea and mountains.

4K high

Of quality

Image +170 degree super wide angle lens

We will shoot shooting modes such as high quality 16 MP pictures, 4 K (30 fps), 2.7 K (30 fps), 1080 P (60 fps / 30 fps), 720 P (90 fps / 60 fps / 30 fps).

You can catch clearer screens more vibrant than ordinary cameras.

A 170-degree wide angle fisheye lens is mounted, and a wider view can be obtained.

You can take a beautiful picture by adopting six layers of high quality glass lenses.

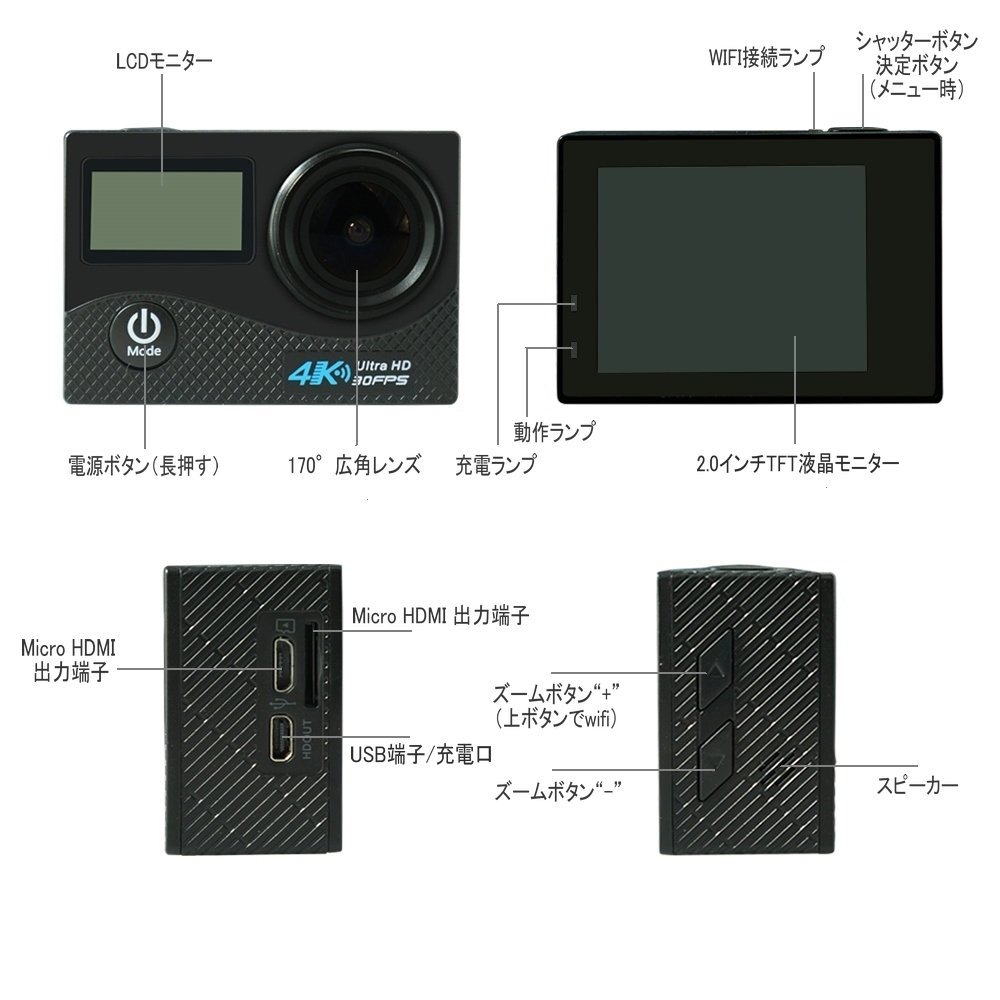

Liquid crystal display (LCD)

More than 2 inch (5.08 cm) HD LCD display, you can immediately check the video you took.

You can preview the captured video image on the camera screen.

【Rotation function】

Even if you shoot with the camera body placed in reverse, the image can be taken without upside-down.

Notes

* The built-in microphone has a low sound recording level (small volume, unchangeable) in order to prevent noise and sound cracking due to shooting vibration.

※ Also, if you attach a waterproof case, you can record almost no sound from the high level of airtightness.

* If you use a no-branded memory card, it will be outside the scope of warranty under normal use, so please use the micro SD card with brand.

* Some setting contents may be reset when removing the battery pack.

Features:

• Please enter model number Confirm this is compatible:
• 【4K high image quality · 170 degree super wide angle lens】 2.0 inch LCD display, 1.5 inches more screen check More brilliant.
• 170 ° fisheye wide angle lens, a wider view can be obtained.
• You can also select shooting modes such as 4K (30fps), 2.7K (30fps), 1080P (60fps / 30fps), 720P (90fps / 60fps / 30fps).
• High image quality with no smear noise ensures high visibility even at night.
• 【Various shooting modes】 Time Plus shooting allows you to enjoy dynamic and dynamic images by tightly condensing changes in the landscape.
• Various functions are also equipped with image rotation function, loop recording function, car mode, shrink time recording, slow shooting, continuous shooting etc.
• [With 2 batteries] With 2 batteries, the recording time reaches 2 times normal, this product can support up to 64 GB of SD card, you can shoot wonderful things.
• 【Waterproof Strength】 Besides protecting the main body, the exclusive waterproof case of the accessory has powerful waterproof function, it can shoot up to 30 meters underwater, underwater photography such as diving and swimming is also possible.
• [Remote shooting · wifi function] Built-in wireless LAN, wifi function is installed, remote recording and photo shooting can be done by downloading application dedicated to smartphone.
• The LCD screen is mounted and comfortable to operate.

Product information:

Shipping Weight: 589 g

Package Dimensions: 7.11 x 21.49 x 28.09 cm
