Product Details & Item specifics
Item Type: Electrical Plug & Sockets
Item Name: 7-Pin TO 6 Pin Trailer Adapter
Place of Origin: Ningbo China (Mainland)
Brand Name: Tirol
Item NO.: T21850
Size: 10.5*7.5*4.5cm
Weight: 110g
Material: Plastic
Color: Black
Input: 12V
Features: Connect the major vehicle and the additional trailer; Transfer the electronic signature from the vehicle to trailer.
Product Description

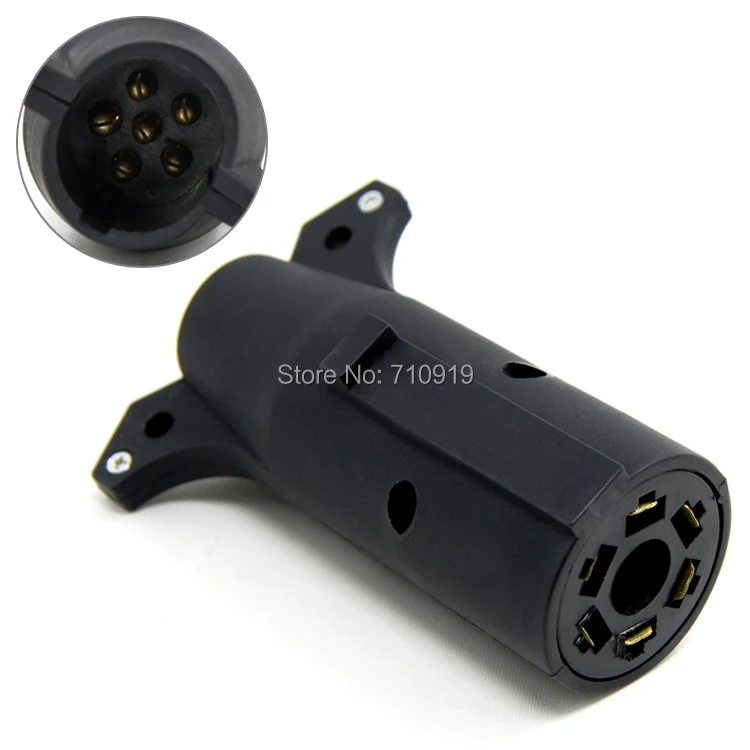

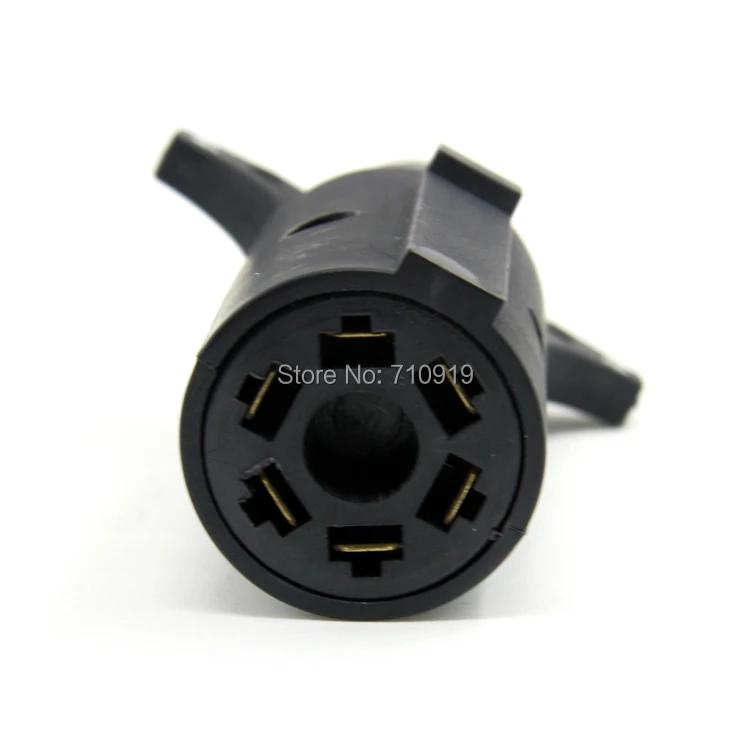

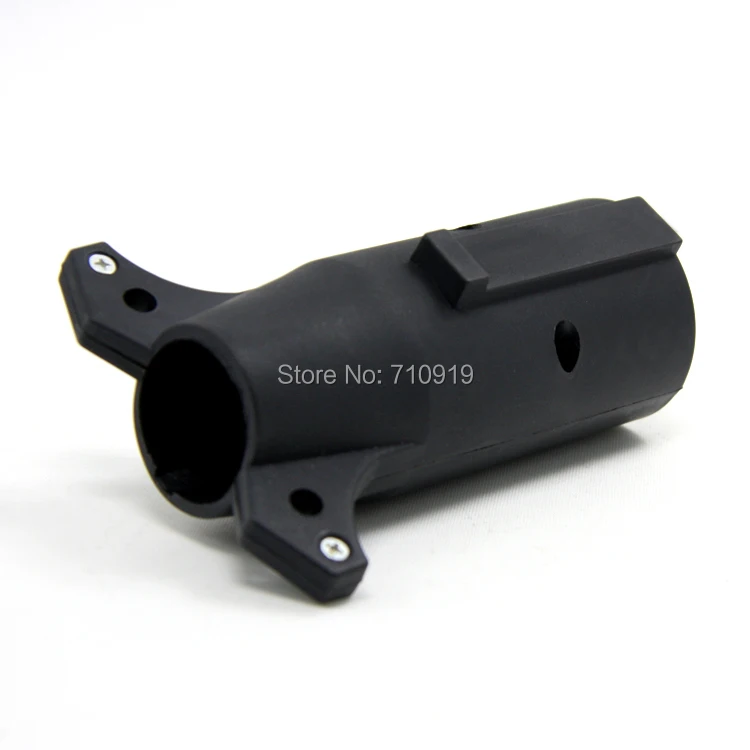

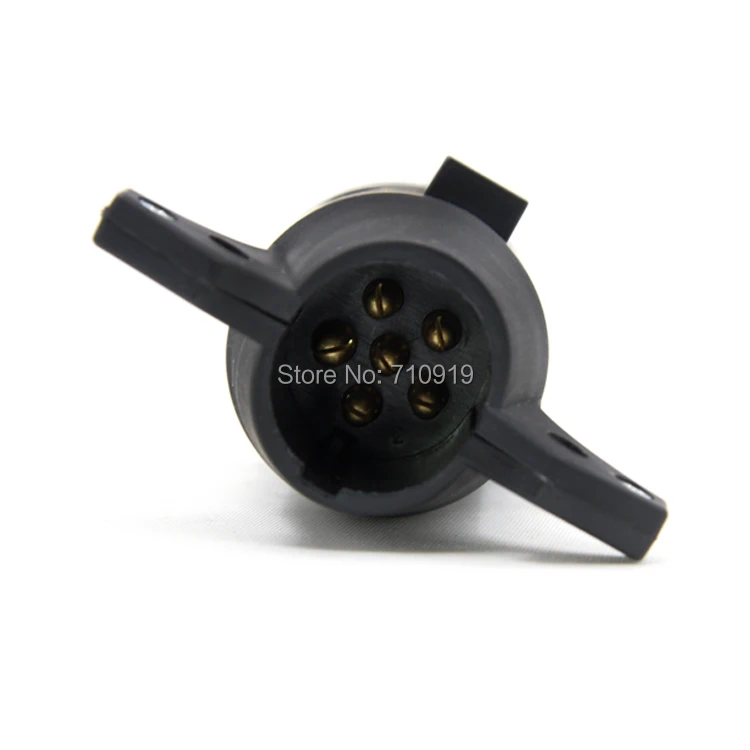

7-way to 6-way Adapter converts a 7-way connector with blade type terminals to a standard 6-way round connector. No need to have all-sizes of trailer connectors hanging off the back of your vehicle, just plug in adaptor and haul.
l 7 Way Flat Pin To 6 Way Round Pin Trailer Wiring Adapter Plug
l Easily converts a 6 way round plug to the 7 way flat pin plug.
l Non-corrosive nylon shell.
l Accepts the 6 way round plug directly into the back of the 7 way plug.
l Electric Brakes To Outside S Pin Of 6-Way
Take the guess work out of trying to wire your trailer lights with the simple plug and play trailer light adapters from Tow Ready. These adapters simply plug into the factory harness and have a convenient pig tail that your lights plug into.
Specs:
|
Trailer Wiring Color Code |
|||||||||
|
Connector |
Function |
Color |
Suggested Minimum Wire Gauge |
Where To Attach - Vehicle Side |
Where To Attach - Trailer Side |
||||
|
4 Way & 5 Way |
6 Way & 7 Way |
||||||||
|
7 Way |
6 Way |
5 Way |
4 Way |
Right Turn |
Green |
18 |
16 |
Right turn of vehicle's wiring harness |
Trailer's right turn signal |
|
Left Turn |
Yellow |
18 |
16 |
Left turn of vehicle's wiring harness |
Trailer's left turn signal |
||||
|
Ground |
White |
16 |
12 |
Vehicle ground point - metal, uncoated, rustproof |
Trailer ground point - metal, uncoated, rustproof |
||||
|
Tail / Marker |
Brown |
18 |
16 |
Taillight of vehicle's wiring harness |
Trailer's taillights |
||||
|
|
Brake |
Blue |
18 |
12 |
Electric brake control, power for brakes |
Break away switch |
|||
|
|
Battery |
Red (or Black) |
|
12 |
Fuse block or FUSED battery Lead |
Break away kit, interior lights and battery charger. |
|||
|
|
Back Up |
Purple |
|
16 |
Back up circuit of vehicle's wiring harness |
Back up lights (if available) / Hydraulic coupler. |
|||
|
This chart is a typical guide, wire colors may vary based on manufacturers. Use a circuit tester to verify connections. |
|||||||||
