Fosmon HDMI ARC Audio Adapter | Audio Return Channel Audio Extractor for Home Theater Application | VHD-ARCA [Supports 1080p， 4K， 3D] - (Optical Output works with ARC Capable TVs only)


  • Extracts the digital audio signal from the HDMI ARC enabled display and outputs it to the S/PDIF Optical TOSLINK port
  • Supports 4k resolutions at 24/25/30fps @ 30Hz
  • Supports 3D， 1080p resolutions at 60fps @ 120Hz
  • Pixel Clock Rate is 340MHz max
  • Total TMDS Throughput is 10.2Gbps max
  • Audio Formats supported are DTS-HD， Dolby TrueHD， LPCM7.1， DTS， Dolby Digital， AC3， DSD
  • ARC Audio Formats supported are LPCM 2.0， DTS， Dolby Digital AC3


    • Product size : 2.07 x 1.97 x 0.79 inches

    Weight : 0.17 KG

    ASIN : B01DLCQZGG

    Model No : HD8051



    Fosmon's HDMI Audio Return Channel Optical Extractor enables displays that support HDMI Audio Return Channel (ARC) to connect with older AV receiver equipment that do not support ARC. In ARC mode， the converter extracts the digital audio signal from the HDMI ARC enabled display and outputs it to the S/PDIF Optical TOSLINK port.

    Extract Audio from the ARC Supported Display
    This extractor allows you to use your optical sound system with your HDMI ARC-enabled HDTV. Set the device in ARC mode， and connect the HDTV to this extractor (make sure an HDMI ARC port is used) along with the optical sound system.

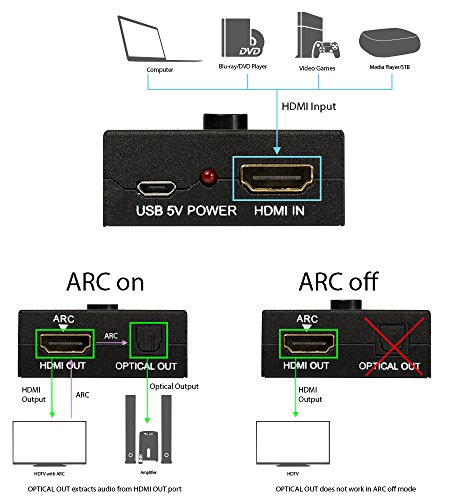

    ARC Extraction / HDMI Pass-through Mode

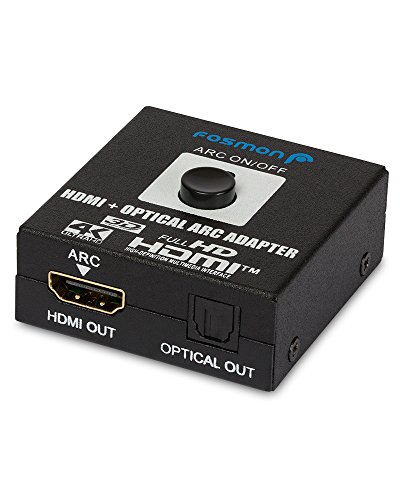

    The button switches between two modes: ARC extraction mode， and HDMI pass-through mode. In HDMI pass-through mode， an input device will be able to connect to the HDTV， without having to use up a valuable HDMI port on the HDTV.

    Specifications:

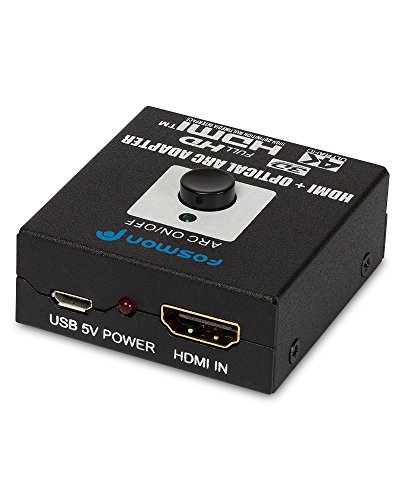

    Input: HDMI x 1

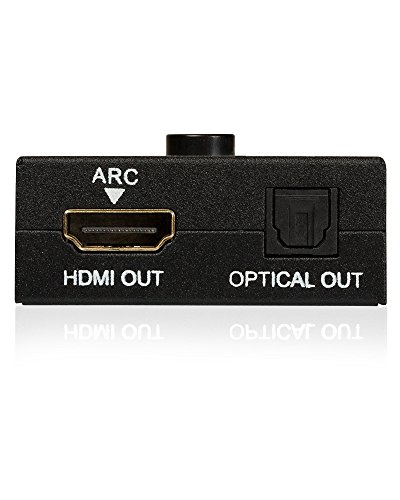

    Output: HDMI with ARC x 1， Optical x 1 (works in ARC mode only)
    4K @ 24/25/30fps @ 30Hz
    1080p/3D @ 60fps @ 120Hz
    Pixel Clock Rate: 340MHz max
    Total TMDS Throughput: 10.2Gbps max

    Note:
    HDTVs require HDMI ARC support to use this extractor.
    The Optical output port does not output audio from the HDMI input port. It extracts the audio signal from the HDMI output port (sent by the ARC enabled HDMI port on the TV).
    This device does not pass-through the HDMI audio from the Input Device to the optical port. High-Speed HDMI Cables are required. TOSLINK does not support Dolby Digital Plus. Please change the input source's audio output to a different setting， if needed.

    Compatibility:
    Blu-Ray/DVD Players
    Video Game Consoles (PlayStation 3/4， Xbox 360/One， Wii U， etc.)
    Media Players (Amazon Fire TV and Stick， Apple TV， Chromecast， Roku， etc.)
    Set-Top-Boxes
    HDTVs
    Amplifiers
