Product Description

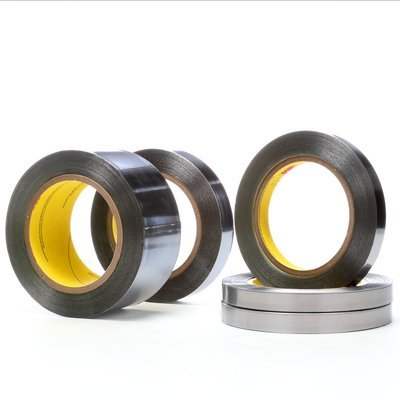

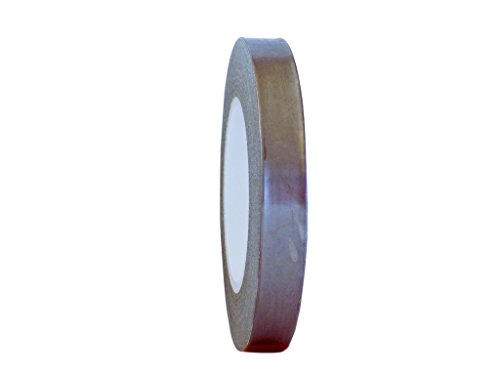

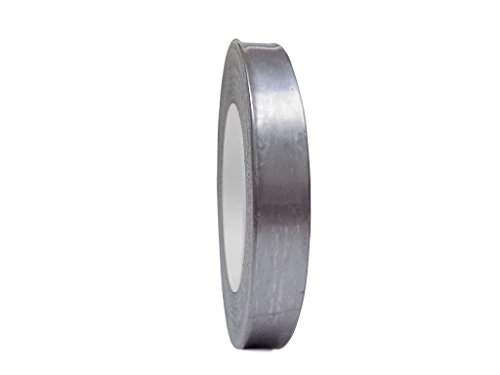

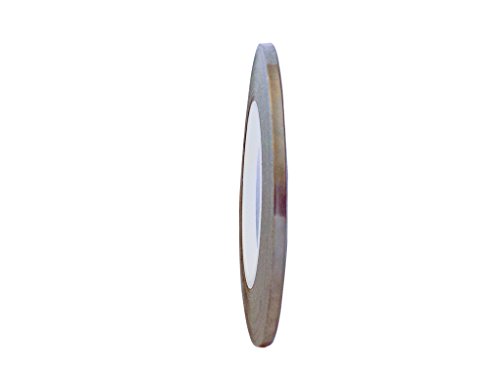

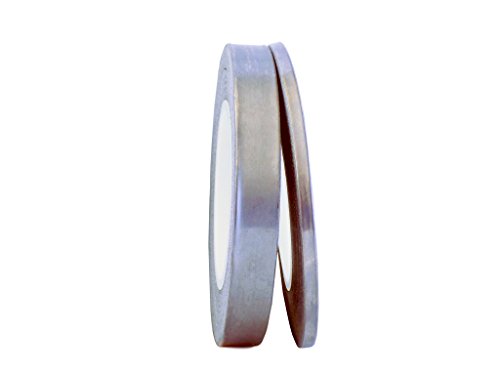

Lead Foil Tape
T.R.U. LF-5R is 100% pure lead foil tape coated with a rubber based adhesive system which exhibits excellent adhesion to a wide variety of surfaces, especially to metal, glass, films, foils, and papers. Highly malleable and can be shaped to the most intricate patterns. Complies with Fed. Spec. HH-T-29A Amendment 2.

Applications:
For stop off masking during electroplating
To add weight to Golf Clubs Tennis Racquets
Used as an electromagnetic and radio frequency shield.

Properties:
Backing: 5 mil lead foil
Adhesive: Rubber
Tape Thickness (w/o liner): 6 mil
Peel Adhesion: 60 oz/in
Tensile Strenght: 18 lbs/in
Temperature resistance: 40 F to 180 F
Elongation (at break): 15%

NOTE: Sizes will be the tape industry standard metric sizes, ex. 12mm for every 1/2 inch of nominal value tape width (Rolls are give or take 5% wider or narrower than the nominal size).
