Feature:
Onboard two the L9110S motor control chip
the module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor
the 800mA continuous current output capability per channel
Low static work current
Each channel has 800mA continuous current output
Low saturation pressure drop
TTL/CMOS output level compatible can be connected directly to the CPU
Output built-in clamping diode apply to the perceptual load
Control and drive integrate in IC
Have pin high pressure protection function

Specifications:
Working temperature: 0-80c
Size:29.2(mm)x23(mm)
the module input voltage :2.5-12V
Power supply voltage: DC2.5-12V
Net weight: 6g
Package weight: 16g

Package includes:

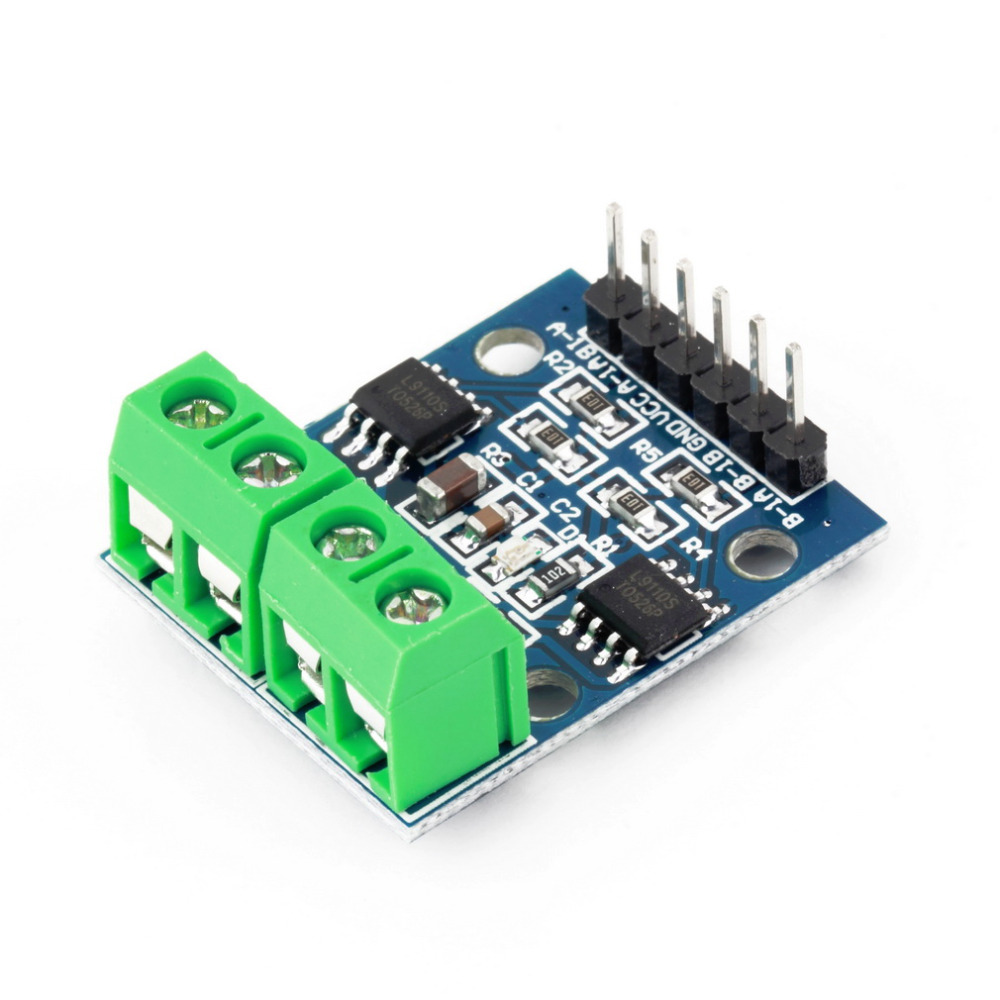

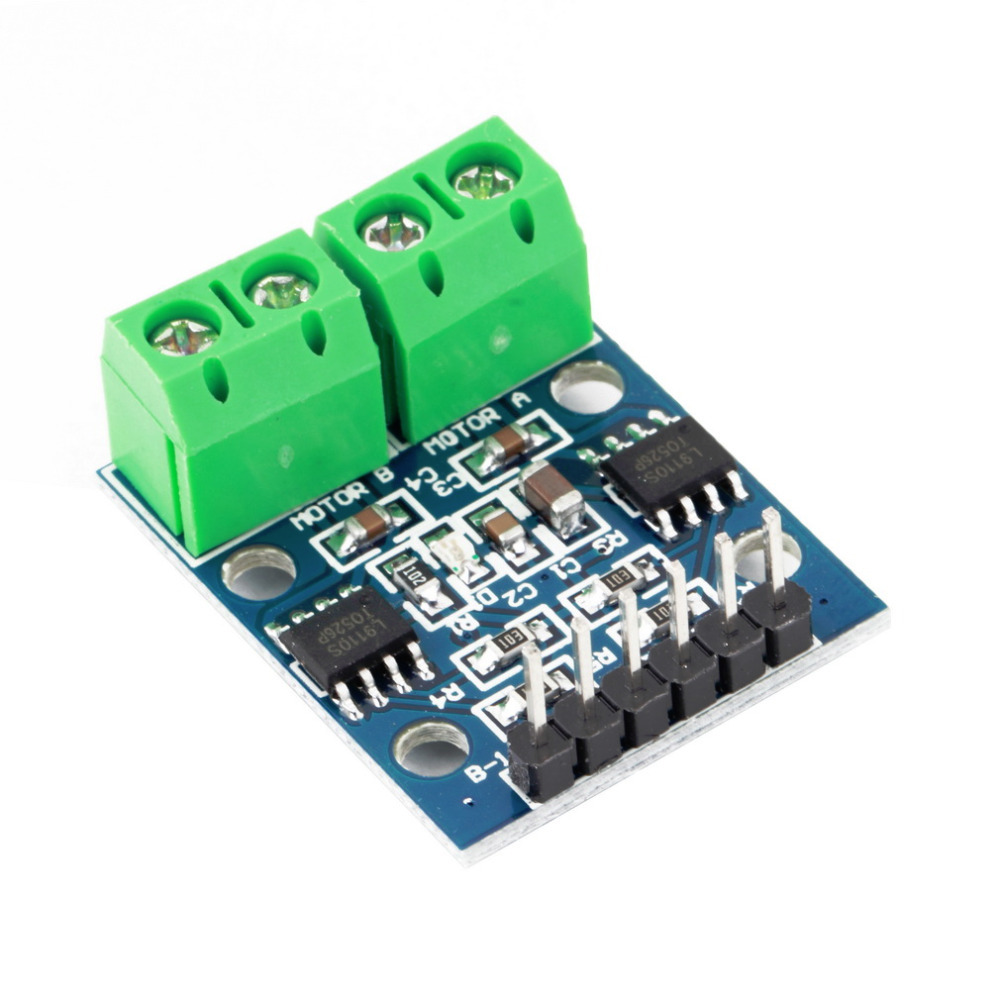

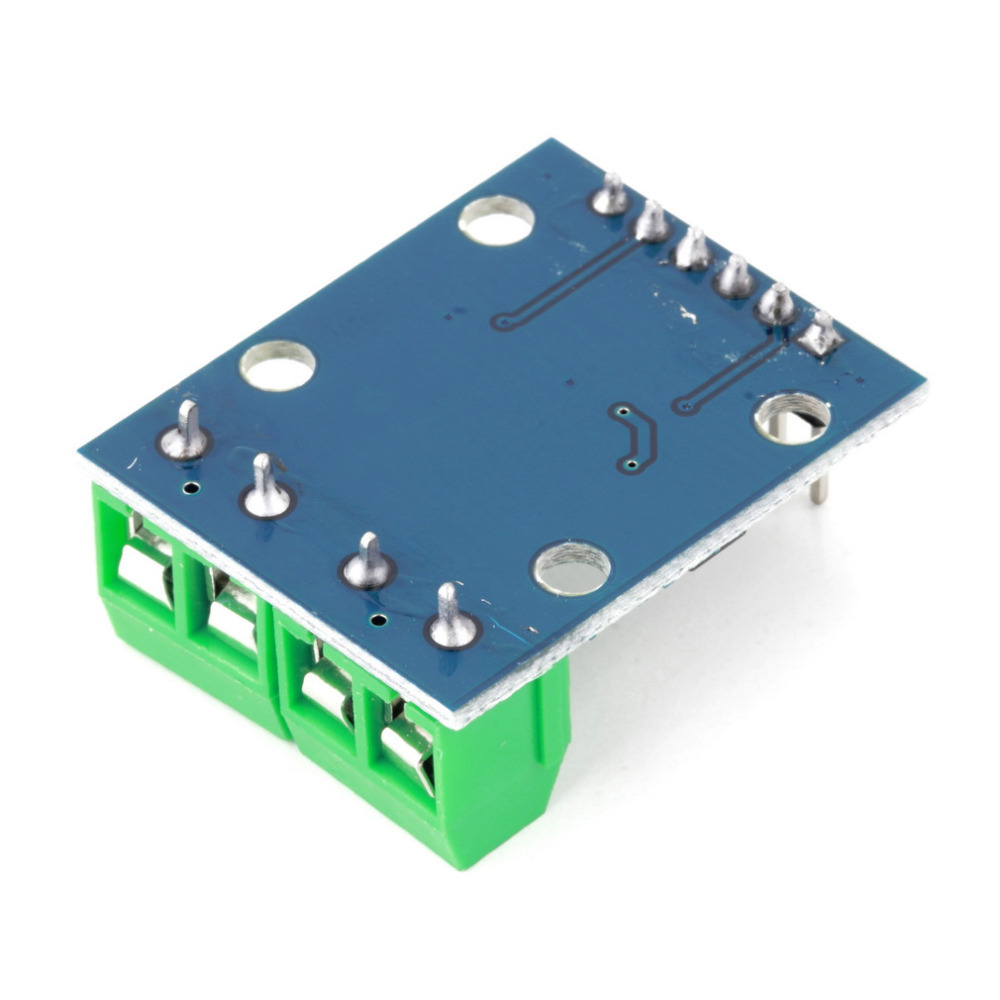

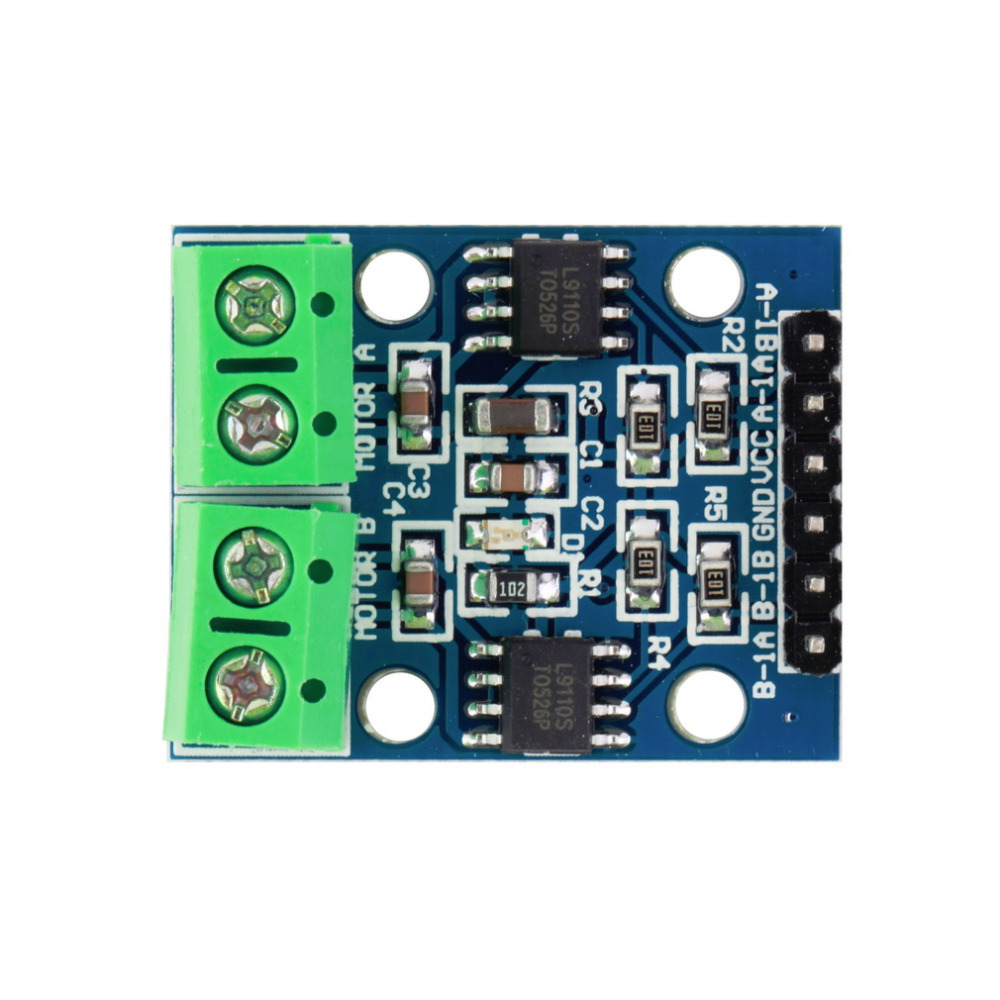

1 x L9110S H-bridge Stepper Motor Dual DC motor Driver Controller Board
