Raspberry Pi GSM/GPRS/GNSS Bluetooth HAT Expansion Board GPS Module SIM868 Compatible With Raspberry Pi 2B 3B Zero Zero W Support Make a Call,Send Messagess,DataTransfer










GSM/GPRS/GNSS HAT Kit

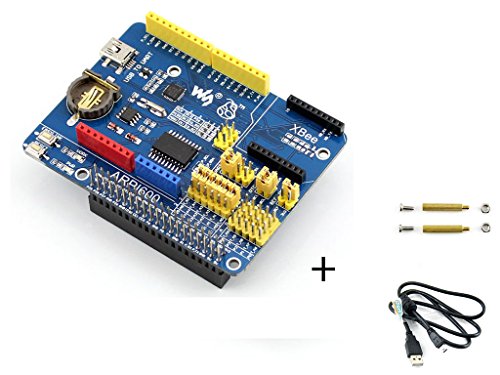

ARPI600 Kit

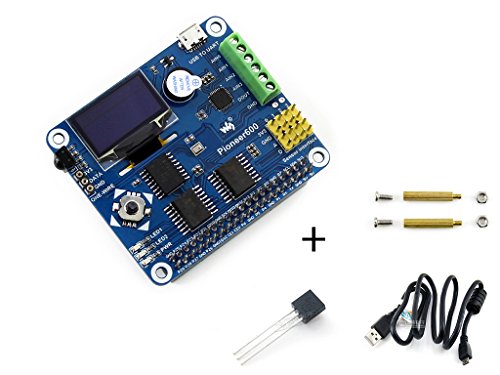

Pioneer600 Kit

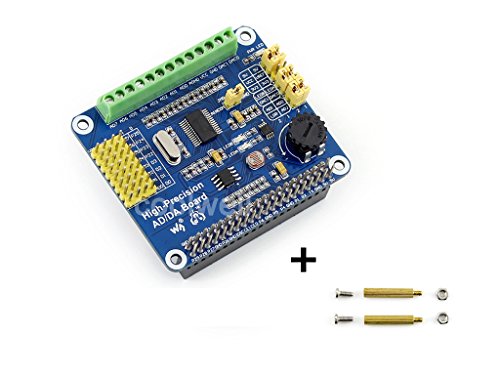

AD/DA Expansion Board

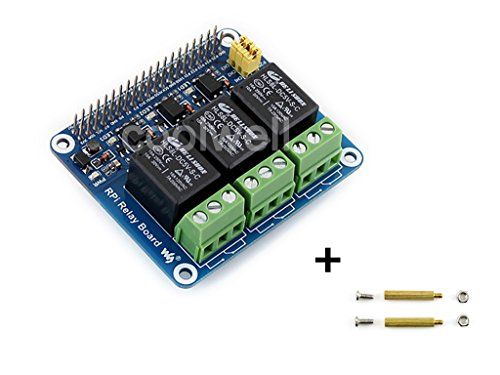

RPi Power Relay


RPi USB HUB

Product Description

Description

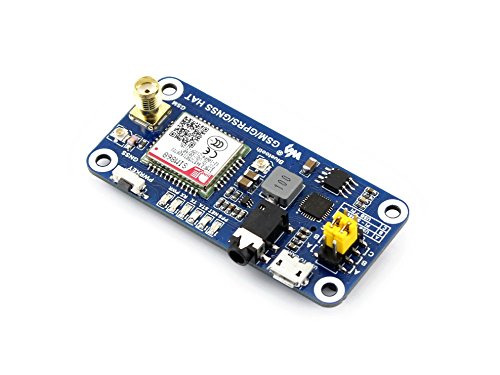

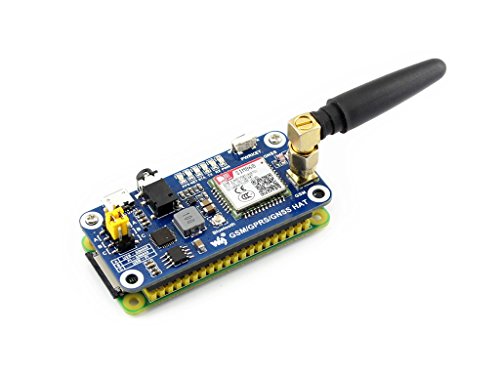

GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi, Based on SIM868
This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, GNSS and Bluetooth.

It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via
Bluetooth, and so on.

Features

Raspberry Pi connectivity, compatible with Raspberry Pi 2B/3B/Zero/Zero W
Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning
Bluetooth 3.0, supports data transferring through Bluetooth
Onboard USB TO UART converter CP2102 for UART debugging
6x LEDs for indicating the module working status

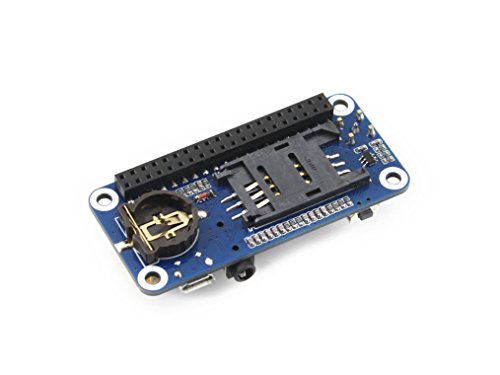

SIM card slot for 1.8V/3V SIM card
RTC with backup battery holder
Baudrate auto detection (1200bps ~115200bps)
Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: GSM 11.14 Release 99
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

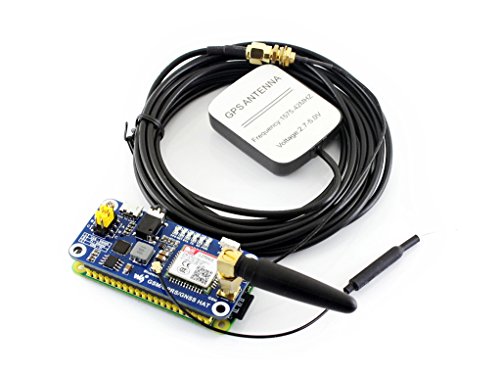

Package Contains

GSM/GPRS/GNSS HAT x1
GSM Antenna x1
GPS External Antenna (B) x1
Bluetooth Antenna x1
USB type A plug to micro plug cable x1
RPi screws pack (2pcs) x1


Development Resources
Wiki : www.waveshare.com/wiki/GSM/GPRS/GNSS_HAT

100% original,offer technical support!

Feature

Raspberry Pi connectivity, compatible with Raspberry Pi 2B/3B/Zero/Zero W
Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning
Bluetooth 3.0, supports data transferring through Bluetooth
Onboard USB TO UART converter CP2102 for UART debugging
Brand : Waveshare
MPN(PartNumber) : GSM/GPRS/GNSS HAT
EAN : 0615311268591
Product Dimensions(LxWxH) : 6x3x3cm ; 64 g
Package Dimensions(LxWxH) : 17x12x7cm ; 64 g
