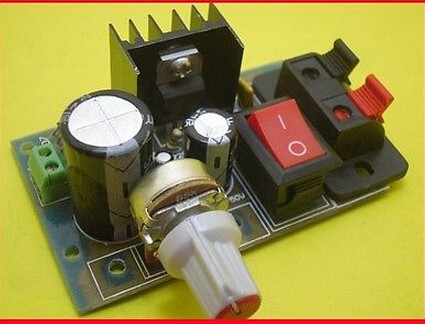

LM317 adjustable module， AC and DC input， voltage regulator module

IY{0S6KS[T6~C($T4[{MNJ01K5XU(``CGL~R8W[{V5I]{9



Board size: 71mm × 46mm;

5-35 volt DC input;
Volt AC input :6-25;
:1.25-30 volt DC output;
Maximum current: 1 A;
Input and output minimum differential pressure: 3 volts;

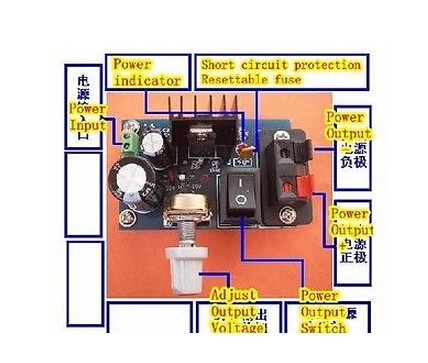

Baby features:

1， with output protection， on-board with self-recovery fuse， play short-circuit protection;

2， the output interface with audio cable clip， very convenient;

3， the output with a power switch;

4， the input with rectifier circuit can polarity input;






';
