Item Descriptions:

specification

Image sensor: 1/4 "color CMOS

Signaling method: NTSC

Video output: 1.0 vp - p 75 Ω

Lens: 3.6MM

Infrared LED number: 24 pieces

Minimum illumination: 0.01 Lux / F 1.2 (0 Lux infrared light on)

Day / Night Function: IR Cut Automatic Switching

Infrared reaching distance: Up to 30 m

S / N: ≥ 48 dB

White Balance: Automatic

Backlight Compensation: Adjustable

Gain control: automatic

Operating power: 12 VDC

Operating environment: -20 ° C to 50 ° C

Indoor / Outdoor: Indoor / Outdoor

Waterproof: IP66

package

700TVL high quality camera * 1

Screw * 1

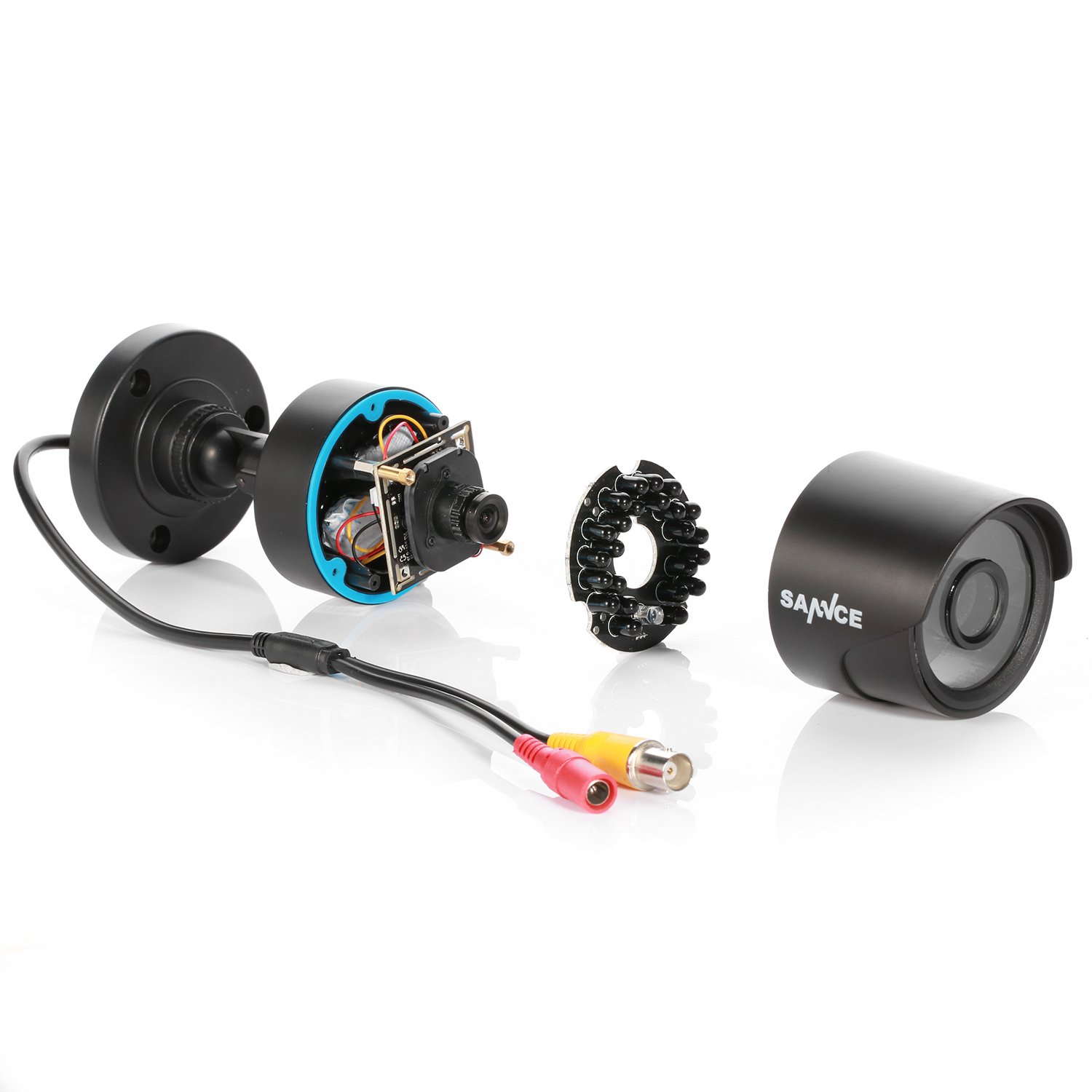

Precision parts

Precision parts

It adopts a waterproof cover and it becomes waterproof and dustproof specification.

It is equipped with a 3.6 mm lens and shoots in a wide viewing angle.

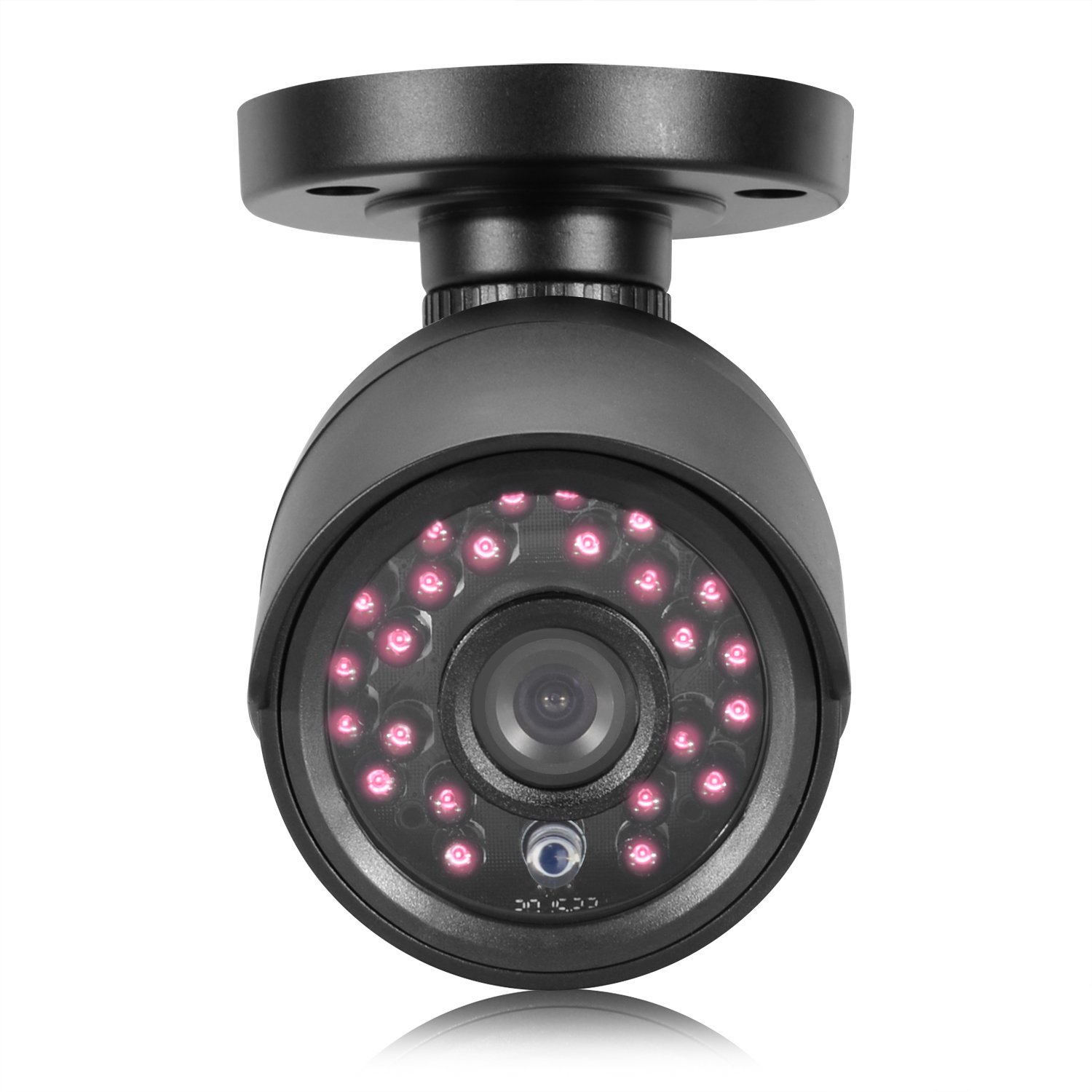

It is equipped with 24 infrared lights for night vision.

IR cut is automatically switched and photographed firmly even in the dark environment.

BNC output terminal is easy to use.

Easy installation

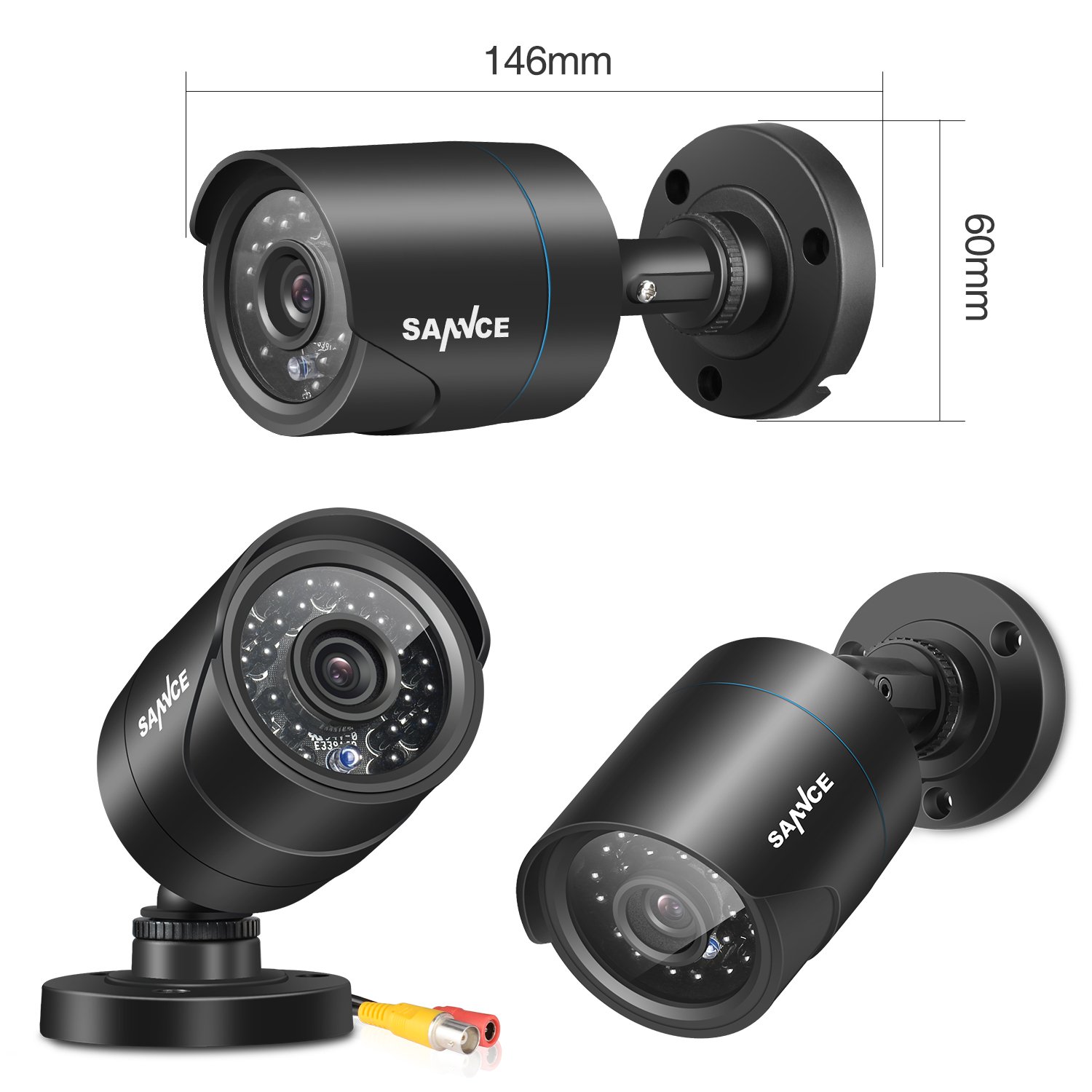

Compact design It can be mounted on both wall and ceiling with compact specifications.

The mounting part operates up and down or right and left, and the base can be rotated and adjusted.

There is no sense of discomfort at all no matter where it is installed with a nice design.

Easy to install and beginners are okay.

Night vision correspondence

Waterproof standard

Night vision correspondence

When it gets dark it can automatically switch to infrared night vision mode.

You can shoot in the dark or at night.

You can take pictures such as suspiciously.

Also infrared light will flash to exert a threatening effect.

* Night vision of infrared is black and white photography instead of color.

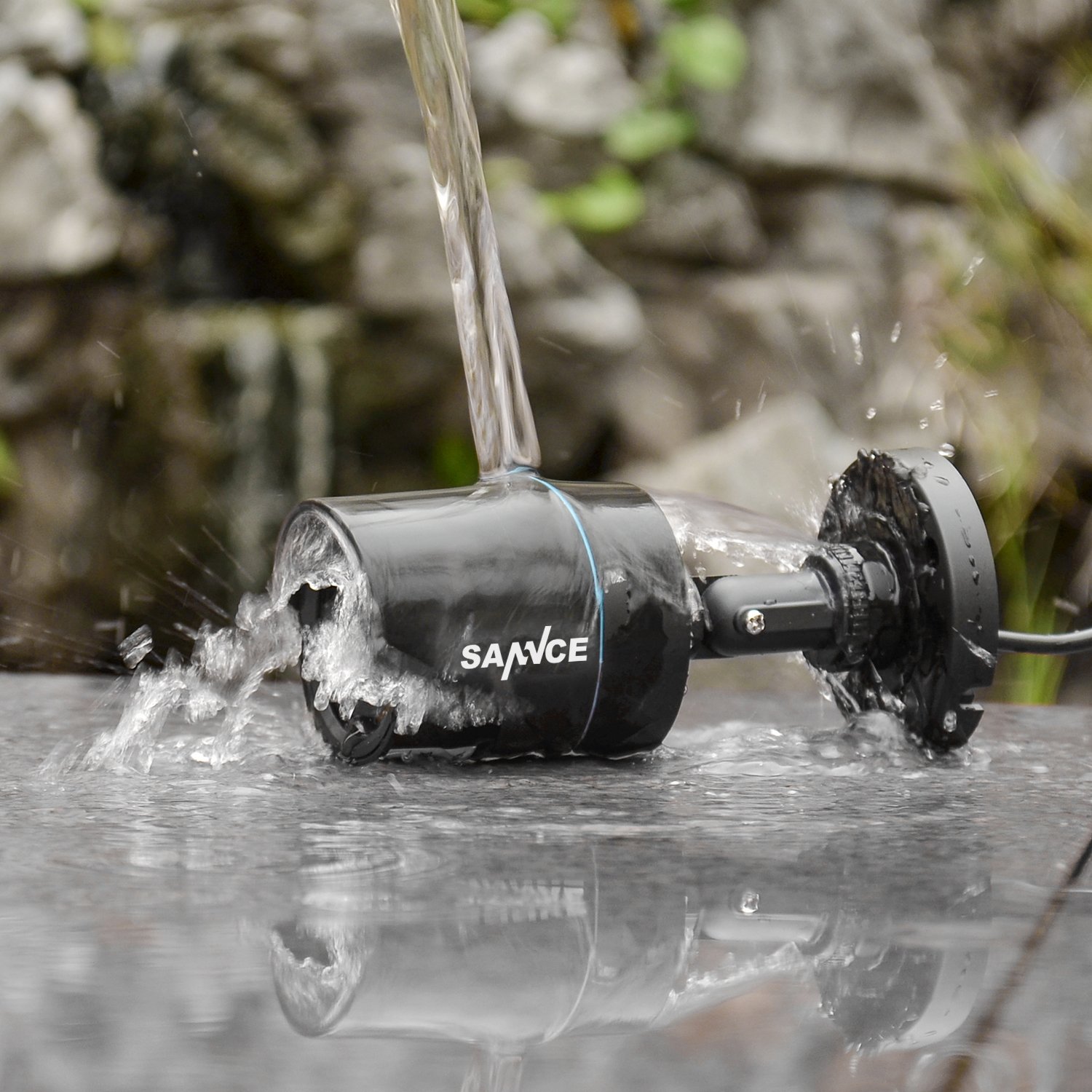

Waterproof specification

It is IP66 waterproof standard.

Although the main body is waterproof standard please waterproof the terminal part.

Various applications

It is recommended to use it in an outdoor home office store garage entrance.

* Please avoid using in environments with strong light.

Features:

• Please enter model number Confirm this is compatible:
• The image sensor records 520,000 high image quality with 1/4 "color CMOS.
• IR cut automatic switching, you can shoot even at night.
• It is equipped with 24 infrared LEDs and the effective distance is about 20 m - 30 m.
• It is waterproof and can be installed outdoors.
• 3.6MM lens mounted.
• The viewing angle becomes wider.

Product information:

Shipping Weight: 199 g

Package Dimensions: 10.31 x 12.29 x 16.89 cm
