Product Description

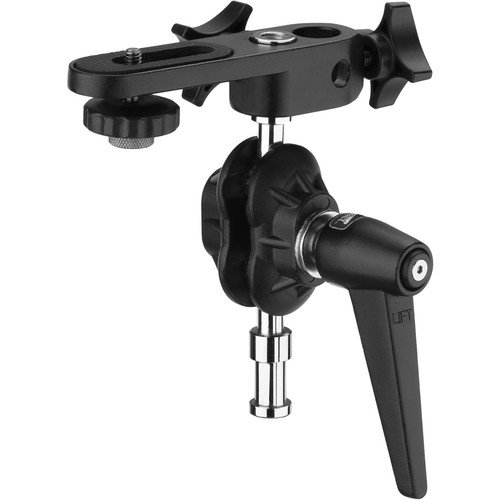

The Impact Double Ball Joint Head with Camera Platform Kit was put together to offer photographers and videographers a camera support option to a traditional tripod. The Camera Platform has two 5/8" receivers for the head or other accessory with a matching stud. A 1/4"-20 threaded camera stud is pre-installed. The head has two 5/8" studs that can be tilted /- 180 degrees rotated 360 degrees. One stud has a 1/4"-20 tap and the other a 3/8"-16 tap for stands and accessories that have matching screws. The studs fit into a wide variety of grip gear with 5/8" receivers. Separate purchase of an Impact Super Clamp (IMCC106R), for instance, will allow you mount to supports and poles from 0.5 - 2.1" thick. Once in position you can lock the head into place with its large ratcheting handle. The system will support cameras up to 5 lb.

SPECIFICATIONS

CC-131 specs
Material of Construction: Aluminum, polymer
Attachment: 2x 5/8" (16 mm) Pins
1/4"-20 Female thread on one pin
3/8"-16 Female thread on other
Load Capacity: 5.51 lb (2.5 kg)
Weight: 0.88 lb (0.4 kg)

BHE-104 specs
Construction: Black aluminum
Mounting Screw: 1/4"-20
Mount: Dual 5/8" (16 mm) receivers
Weight: 0.31 lb (0.14 kg)
