Item Descriptions:

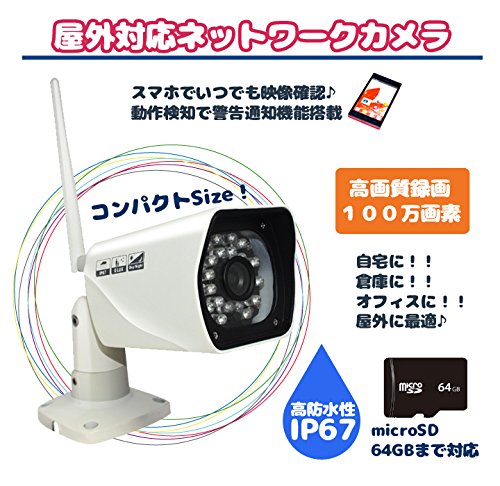

Outdoor compatible network camera
Special application for smartphone [iSmartViewPro] Free download
1 million pixels · Outdoor · Waterproof specification · Easy installation
■ Specification
Sensor: 1/4-inch 1.0 Megapixel CMOS 1 million pixels
Illuminance: When the illuminance is lower than 0 Lux, automatic infrared mode switching
LED light: 245 visible visible infrared LED, up to 20 m
Resolution: 1280 * 720 (720 P) 30 fps 640 × 360 (VGA) / 320 × 180 (QVGA)
Compressed file format: MJPEG
Frame rate 30 fps
Number of bits: 32 kbps to 4 Mbps
Image rotating mirror / upside
Audio compression: ADPCM
Basic protocol: TCP / IP, UDP / IP, HTTP, SMTP, FTP, DHCP, DDNS, UPNP, NTP, PPPOE
Other protocol: 802.11 b / g
Video control: ○
Motion control: ○
Trigger: Email / FTP / External Alarm / Message to Server
User setting: 3 levels
With date / time setting
Upgrade via automatic network upgrade
DDNS: Free DDNS provided one
Body size: about 200 mm (including stand) × 70 mm × 65 mm
Weight: About 520 g
Operating environment: -10 ℃ ~ 45 ℃
Operating humidity: 10% to 80% Without crystal
Supported OS: Android version 2.2 and above; iOS version 4.3 and above; Windows Phone uses browser to view or the third party APPs.
Application specific to PC: IPCMonitor.exe
Application for smartphone: iSmartViewPro (Free DL from APPstore or play store)
* For remote monitoring, it is necessary to set fixed IP address and service router of DDNS etc.
We can not support it.
* The memory card insertion slot is inside the main unit.
Sorry to trouble you when installing the SD card, please remove the front glass cover and the LED light base.
Features:
Product information:
Shipping Weight: 879 g
Package Dimensions: 10.01 x 13.99 x 23.39 cm
Customer reviews from Japan:




Struggling to set up
Although I had only a brief explanation, I had a hard time but I managed to see it on my iPphone somehow. First remove the SD card with the screw on the front side of the main unit and insert it into the inside. It is necessary to connect the personal computer and the Wi - Fi router to the camera. Install the attached CD to your computer. If you open explorer and Google Chrome you can not see the image, so copy it, expand the explorer and paste the address and it was done. After that I can now set iphone according to the instructions. I have just set it up so I think I should be able to master it later.




I can not log in on a personal computer
Camera design (good as a security camera) Made image I am satisfied. With smartphone Android it is connected smoothly and I am not good at English and PCs Even if I am able to make necessary setting (Motion Recording) relatively easily, I can not log in with a PC (Windows 10) User ID Password and enter OK I can not. I tried it with two PCs but it was useless. There is an unexpected cause! Please let me know if there is one. It is durable after all because it can be used as needed by the smartphone (^ - ^)




Japanese manual is glad
Since it uses ActiveX with PC browser, it will be operated in IE. It does not matter the recording capacity by recording to NAS using FTP.




First purchase review
I just bought it, so it's my first review. Even when I go out, I bought it for crime prevention. The explanation is briefly stated and I got a little trouble, but I was able to set it up. The image is beautiful and it is used without problems. Because this type can not pick up voice, the one who needs voice is useless. I recently got a suspicious person, so I installed it in front of the entrance, which is difficult to see from the room, by checking with images in case of absence or at home. I am satisfied now. I think that I want to write again the feeling of use.




It has stabilized.
Purchased from car accessories online shop. Three weeks have passed since it was installed outdoors and started operation. Automatic overwriting with SDXC of 64 gb, HD image quality It operates stably with a cycle of about 5 days saving. At the beginning of the installation, wifi became unstable and could not be connected, but symptoms occurred irregularly, but fixed IP address setting, every day for one hour, we organized a schedule to stop SD recording every day, I set up to apply automatic reboot, but it was not certain which one worked but it stabilized afterwards. These settings can only be done from the PC browser, not by the smartphone application. Motion sensor increases sensitivity, it responds to small insects and raindrops floating during night infrared shooting, and when it is lowered it will not respond to people's movement during the day, so it is not useful for outdoor installation I think. If the record is left at the default setting, the file is created and saved in 2 minute increments. Since it is digital compressed recording, when a moving object appears within the shooting range, the size of the recording file becomes larger than the recording file in the time zone before and after that, so the record at the time of change without depending on the motion sensor is somewhat specified I can do it. Although it is supposed to be a waterproof specification for a while, I thought that it can not be expected so much at this price as it is supposed to be a waterproof specification, I searched for a tapper close to the main body size at the home center and put the necessary hole according to the body and put it on it. The image quality is abundant with no problem. However, if you are planning to operate with only smartphones, the functions that can be set for the main unit function are greatly limited, so be careful. I think that it is better to consider smartphones as image confirmation only, otherwise it is considered as a prerequisite for PC operation.




I think that it is very good.
There is no particular problem and arrival was also early. I felt like I did not have a memory card, SCANDISK 8 G was in it. Since I want to keep many records, I purchased 64G separately. I bought it at the same time as Panasonic's home security, but I think that the image quality is better both day and night. It would be better if we could move the camera even a bit or rotate 90 degrees, but it is better because there is some yesterday to some extent. Although installation and applications in total require a little knowledge, I think that it is excellent in consideration of the price. I would like to confirm the durability from now, but it seems to be very solid.




Gimmick is wonderful!
There are such things as "It can be easily monitored at any time with a smartphone without a PC", but [Router for both wired and wireless communication] seems indispensable. Well, I need a wireless LAN router such as AirStation or Aterm. (Directly wired LAN connection with this product with a wireless LAN handset attached to the PC: ×) (PC and this product directly wired LAN connection: ×) It did not move at all. When I had this kind of connection, I did not activate the application of mandatory installation. Besides, setting, disassembling work for attaching MicroSD, etc ... There is somewhat complicated place, it was a product unsuitable for those not familiar with personal computer equipment. ~~~~~~~~~~~~~~~~~~~~~~~~~~~~, but this is quite convenient if you can use a person who can use it. The making of the main body was also excellent. Among them, it was good that detailed instructions were in Japanese so that they could be used properly. The main body is made of metal [IP66 water proof dust] up to. Also, when not using the Wifi antenna, there is a rubber cap for mounting. Cables with LAN cables, charging terminals, switches, etc. are coming out from the part that comes into contact with the walls, but holes are made in the main body so as not to crush them, pressed against a desk or wall It was nice not to crush the cable. However, the other person wrote that there is a margin of about 30 cm, but since the length of the LAN cable, including the connection part, is about that, in reality it is thought that "the length that can move the cable freely is about 20 cm" It may not be defective when installing it. Adjust the angle of the camera manually by loosening the fixing with a hex screw. I thought that it would move when I loosened, but I was saying "ticking" with the feeling that there was a decided angle properly. As for connection of MicroSD card, there are many somewhat troublesome parts. 1. MicroSD removes the lens, 2. Remove the camera and LED from the base board, and insert 3. MicroSD. As to how to use, you can connect and monitor wirelessly as you can see from the Wifi antenna attached to the main unit. Also, it is wonderful to be able to monitor with most OS such as Android, iOS, Windows, Mac. By all means, I wanted to use it to check the actions of the manager who entered the room without permission and to monitor the delivery box, but in the first setting I fell into the state that "necessary things are not in my house". If you are the one who draws the net at home recently, I think that most people have it if they are wireless LAN parents, but I think that it is a product that we have to shop carefully. Product quality is good and multifunctionality is also attractive, but if MicroSD alone could record, it was perfect. It was five stars.
