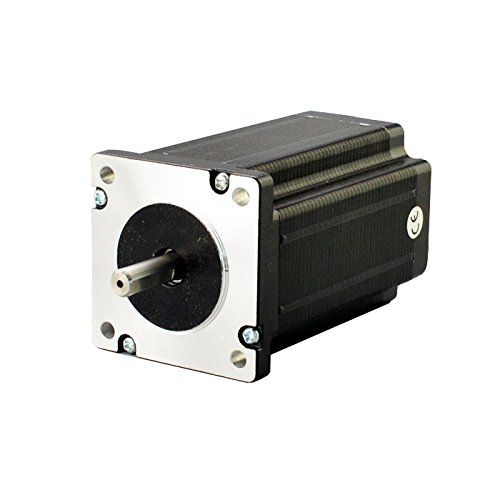

Product Description

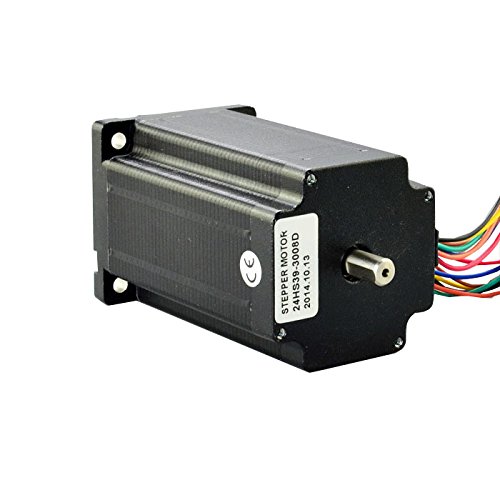

This is the strongest Nema 24 stepper motor we carry. It with 8 wires which you can give three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. The holding torque with bipolar option can reach 4Nm(566oz.in). A rear shaft can mount encoder, hand wheel or equals.

Electrical Specification

* Manufacturer Part Number: 24HS39-3008D Motor Type: Unipolar/Bipolar
* Step Angle: 1.8°
* Holding Torque(Bipolar): 4.0Nm(566oz.in)
* Holding Torque(Unipolar): 2.8Nm(397oz.in)
* Rated Current(Bipolar Serial): 2.12A
* Rated Current(Bipolar Parallel): 4.24A
* Rated Current(Unipolar): 3.0A
* Phase Resistance(Bipolar Serial): 2.8ohms
* Phase Resistance(Bipolar Parallel): 0.7ohms
* Phase Resistance(Unipolar): 1.4ohms
* Recommended Voltage: 24-48V
* Inductance(Bipolar Serial): 12.0mH±20%(1KHz)
* Inductance(Bipolar Parallel): 3.0mH±20%(1KHz)
* Inductance(Unipolar): 3.0mH±20%(1KHz)

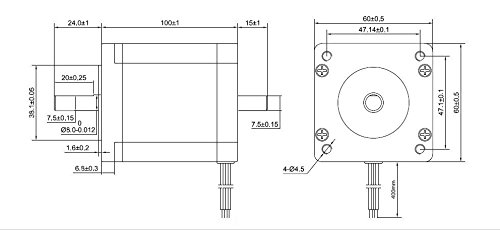

Physical Specification
* Frame Size: 60 x 60mm
* Body Length: 100mm
* Shaft Diameter: Φ8.0mm
* Front Shaft Length: 24mm
* Rear Shaft Length: 15mm
* D-cut Length: 20mm
* Number of Leads: 8
* Lead Length: 400mm
* Weight: 1.6kg

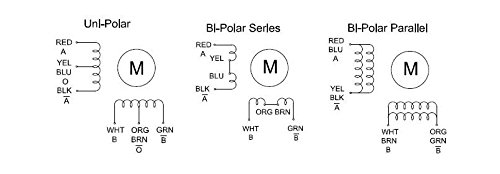

Connection:

BLK(A+), WHT(A-), BRN(C-), ORG(C+), RED(B), PUE(B-), BLU(D-), YEL(D+)

Warning:

Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.

Feature

Motor Type: Unipolar/Bipolar , Step Angle: 1.8° , Holding Torque(Bipolar): 4.0Nm(566oz.in) , Holding Torque(Unipolar): 2.8Nm(397oz.in)
Frame Size: 60 x 60mm /2.36" x 2.36" , Body Length: 100 mm / 3.94" , Shaft Diameter : Φ8.0mm / Φ0.31"
8-wires , Weight: 1.6kg
Brand : STEPPERONLINE
MPN(PartNumber) : 24HS39-3008D
EAN : 0701056528400
