Features:

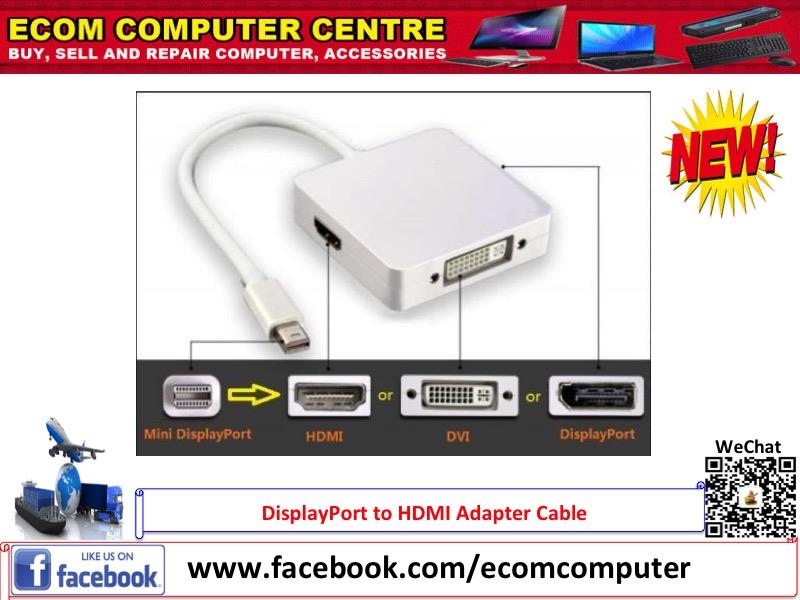

This is a cost effective solution for adapting your new Mini-DisplayPort equipped Mac laptop or any other source / player using the mini-Displayport interface to your current DVI-D, HDMI or Displayport display.Mostly used on ATi HD5970, HD5850x2, HD5870x2 / Apple new notebooks - MacBook, MacBook PRO, MacBook Air, iMac, Powerbook G4 (Please make sure that your computer/laptop has a Mini Displayport and not the older Mini DVI port.)

Supports DisplayPort 1.1a Dual-mode output with the max resolution of 2560 x 1600.

Supports HDMI/DVI output with the max resolution of 1920 x 1080p@60Hz, 225MHz/2.25Gbps per channel (6.75Gbps all channel). 12bit per channel (36bit all channel) deep color.

Automatically detect the display by plugging and unplugging it.

Powered from Mini DisplayPort source.

It is designed in pure white color.

Technical Specifications
Input Video Signal5 Volts p-p (TTL).
HDMI/DVI Maximum Single Link Range
DisplayPort Maximum Single Link Range
HDMI/DVI Video Amplifier Bandwidth2.25Gbps/225MHz
DisplayPort Video Amplifier Bandwidth2.7Gbps/270MHz
Input InterfaceMini DisplayPort Male 20pin
Output InterfaceHDMI Female 19Pin and DVI Female (24 5) and DisplayPort 20Pin
HDMI/DVI Resolution480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI/DVI Resolution1280*1024, 1360*768, 1920*1080, 1920*1200
Operating Temperature0 to 70
Operating Humidity10% to 85 % RH (Non Condensing

NOTE :This adapter cable itself supports audio output provided your Macbook supports it. If your Apple computers / Macbook is manufactured after June 2010 it should support audio. Please remember audio is NOT supported with DVI output.
