Product Description

· Very few external BOM-count to create a fully functional application circuit
· Texas Instrument TI CC2640R2F SimpleLinkTM Wireless MCU
· 48MHz ARM Cortex-M3 MCU core for applications with 128K flash memory for ISP
· 8-KB SRAM for Cache and 20-KB Ultra-Low Leakage SRAM
· Dedicated ARM Cortex-M0 core, 4KB SRAM, and ROM for RF operations
· Dedicated processor and 2KB SRAM for ultra-low power sensor control
· Ultra Low power consumption, 6.5mA during Active-TX at 0dBM
· Increased modulation index providing possible range of 100m+ in open area
· Continuous Time Comparator and Ultra-Low Power Analog Comparator
· TRNG and AES-128 encryption for data encryption and authentication
· 4 General-Purpose Timer Modules (8x16-Bit or 4x32-Bit Timer, PWM Each)
· Programmable UART, SPI, I2S, I2C, and GPIO interface
· 12-Bit ADC, 200-ksamples/s, 8-Channel Analog MUX and battery monitor
· Support user-developed applications and custom profile over GATT
· Integrated RF Shied Cans
· Certifications: FCC / IC / CE / TELEC
· REACH / RoHS compliant

Dimensions:
· 14 x 21.5 x 2.6 mm

Package Content:
5 Pack Modules

Applications
· Internet of Things (IoT) Device
· iBeacon
· Wireless Keyboard & Mouse
· GamePad & Game Controller
· HID applications
· Mobile phone & tablet accessory
· Medical & healthcare monitor
· Sports & Fitness equipment
· Proximity & Lost-prevention Key Fob
· Smart Wearable
· RC & Interactive Toy
· Home/Building Automation
· Machine-to-Machine data transfer
· Remote Sensor Network
· Wireless Alarm & Security
· Automatic Meter Reading (AMR)
· Electronic Shelf Labeling
· Lighting & HAVC control
· Remote Control & Assisted Living
Standard Firmwares Available
· Heart Rate Monitor (HRP)
· Blood Glucose Monitor
· Health Thermometer (HLP)
· Blood Pressure Monitor (BLP)

Feature

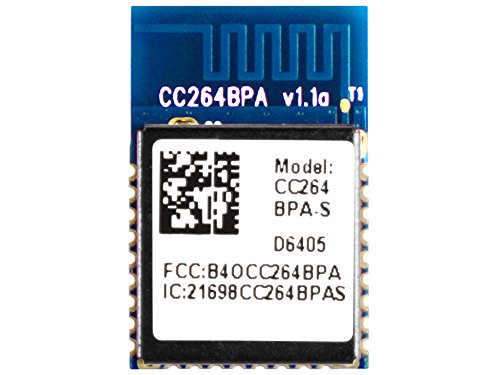

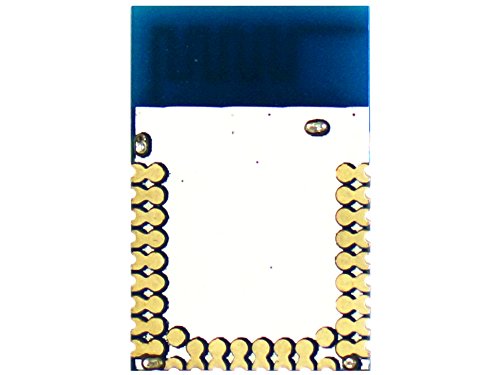

GT-tronics P/N CC264BPA-S, featuring Texas Instrument TI CC2640R2F SimpleLink Wireless SoC
FCC / IC / CE / TELEC Pre-Certified. Fully compliant with Bluetooth 5 Low Energy BLE specifications (Backward compatible with BLE 4.0 / 4.1 / 4.2)
High efficiency on-module printed PCB RF antenna
Support coin battery 1.8-3.8V operation and 8 Capacitive Sensing Buttons
Package Content : 5 x CC264BPA-S Bluetooth SMD module
Brand : MakerSpot
Item model num : LYSB01LXCVHYQ-ELECTRNCS
MPN(PartNumber) : LYSB01LXCVHYQ-CMPTRACCS
EAN : 4895173523441
Product Dimensions(LxWxH) : 2x1x3cm ; 0 g
Package Dimensions(LxWxH) : 13x8x3cm ; 0 g
