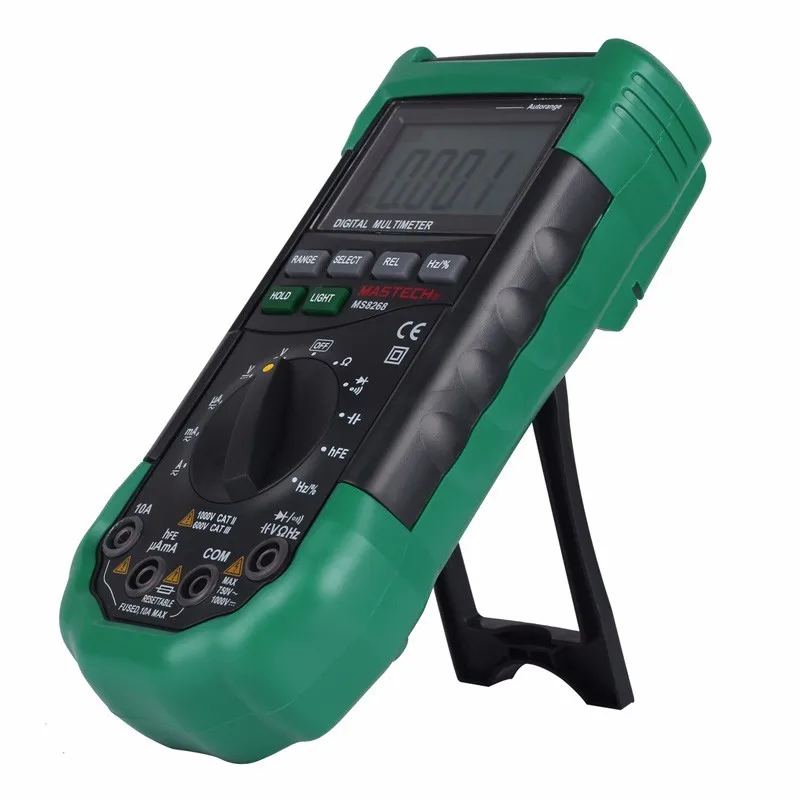

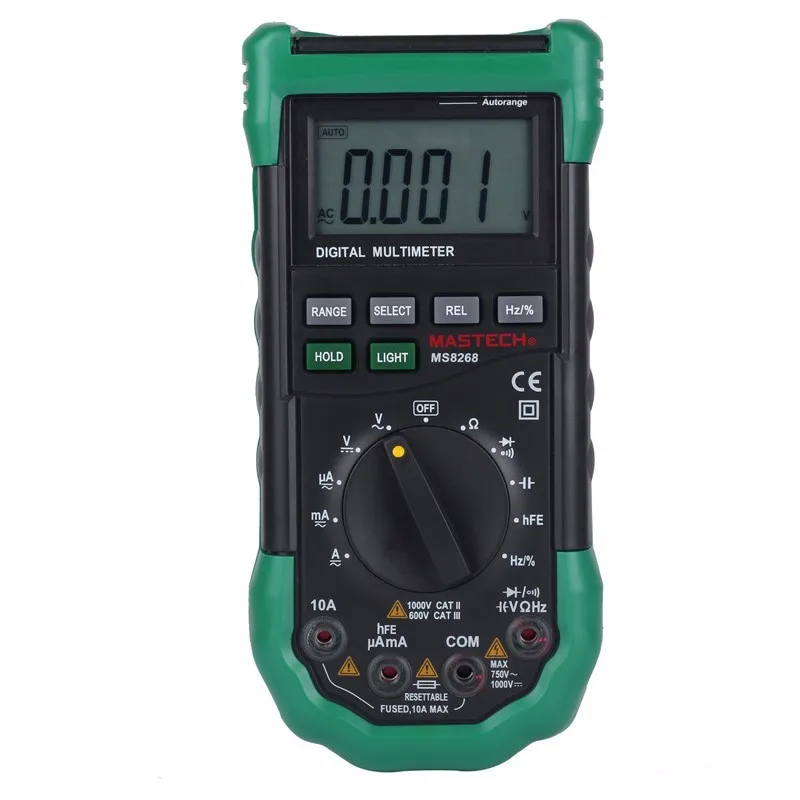

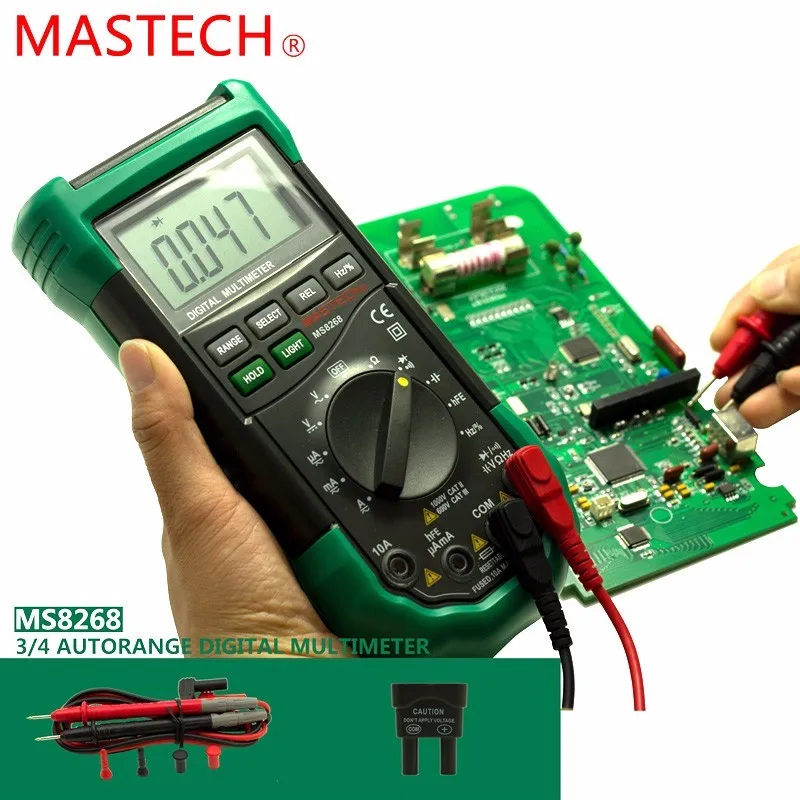

MASTECH MS8268 Digital Multimeter Auto Range protection ac/dc ammeter voltmeter ohm Frequency electrical tester diode detector
Display: 3 3/4 digital large LCD with 4000 counts
Manual !#!amp!*! Auto ranges
Data hold
Backlight
Full overload protection
Built-resettable fuse protection
Fuse Protection: mA and mA file: resettable fuse; 10A file: F 10A/250V 6.332mm
Misconnection alarm system
Red lights to show the correct terminals
Audible warning for over-range
"Sleep mode"， auto power off !#!amp!*! low battery indication
Unit symbol display
Continuity test
Diode test
Duty Cycle Measurement
Relative value measurement
DC voltage: 400m/4V/40V/400V ± 0.7%， 1000V ± 0.8%
AC voltage: 400mV ± 3.0%， 4V/40V/400V ± 0.8%， 750V ± 1.0%
Resistance: 400/4k/40k/400k/4MΩ ± 1.0%， 40MΩ ± 2.0%
DC current: 400μA/4000μA/40mA/400mA ± 1.5%，10A ± 2.0%
AC current: 400μA/4000μA/40mA/400mA ± 1.5%，10A ± 3.0%
Capacitance: 20n/200n/2μ/20μF ± 4.0%
Frequency: 10/100/1000/10k/200kHz ± 2.0%
Transistor hFE: 1 ~ 1000
Continuity test
Diode test
Duty Cycle Measurement
Relative value measurement
Sampling Rate: approx. 3 times / second

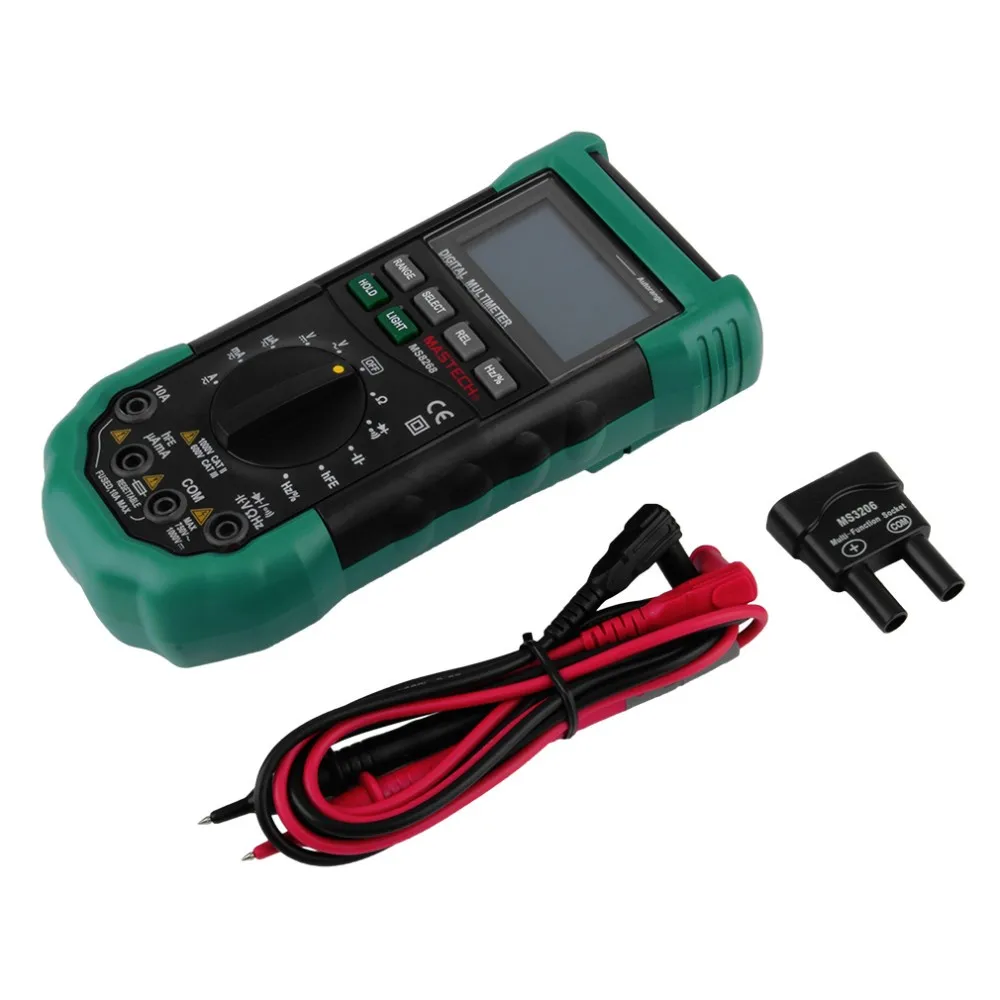

Test Leads: 1KV 10A
Safety Standards: IEC1010-1， CAT. III 600V !#!amp!*! CAT. II 1000V
Operating Temperature: 0 ~ 40° C (32 ~ 104° F)
Operating Humidity: below 80% RH， !#!lt!*!10° C non-condensing
Storage Temperature: -10 ~ 60° C (14~ 140° F)
Storage Humidity: below 80% RH

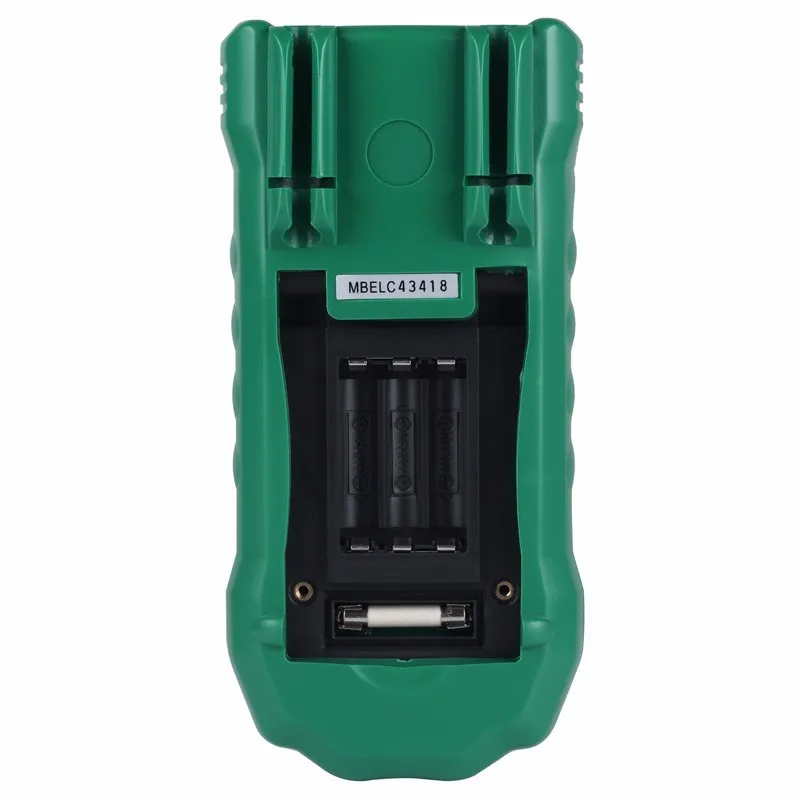

Power: 3 x 1.5V AAA batteries (Not included)
Dimensions: 195 mm x 92 mm x 55mm (7.68' X 3.62' X 2.17' inch)
Weight: Approx.380g (13.40oz)
