5.8Ghz FPV Transmitter RF Signal Amplifier for RC Airplane Helicopter Quadcopter Aerial Photography

Description:

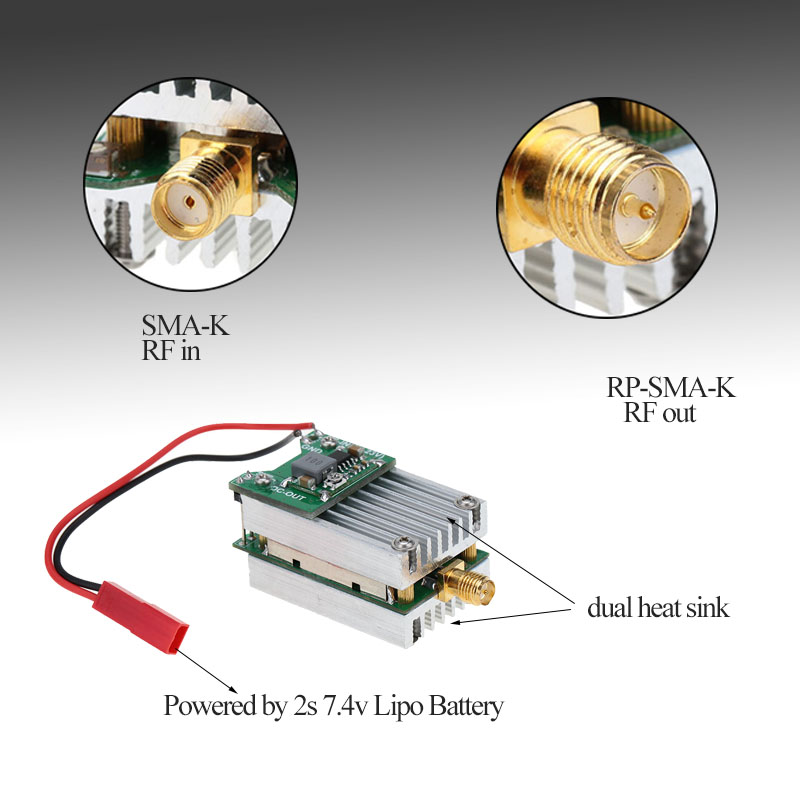

Compact and dual heat sink design
5.8Ghz FPV transmitter RF signal amplifier
5.8Ghz Channel (5600MHz~6000MHz) also fits 5Ghz-6Ghz
Power supply: DC 6V-23V
Input Power: -3dBm to 27dBm
RF output power: 33dBm (2W)
TEST Gain: 3dB-6dB @ 5.60GHZ-5.75GHZ， 5dB-8dB @ 5.75GHZ-5.85GHZ， 3dB-7dB @ 5.85GHZ-6.00GHZ
Dimension: 40 * 27 * 22mm

Note:
Please make sure the antenna port is already connected to the antenna before powered， otherwise it may cause the amplifier burn with large standing wave.

Package Information:
Package size: 7 * 6 * 2.5cm / 2.8 * 2.4 * 1in
Package weight: 47g / 1.6oz
Adhesive tape package

Package List:
1 * 5.8Ghz FPV Transmitter RF Signal Amplifier
1 * Power cable
