Item Descriptions:

Rustic beast (Rafer) 290 degree large viewing angle Blue mirror drive recorder

notification:

Recently, there are reports of symptoms that the camera turns on and off.

The cause is that the auto power off function is set to 10 seconds by default.

Solution: Do not insert the memory card, turn on the camera, press the MENU button, and set the "auto power off" function to "off".

■ Engine interlocking

Recording started automatically when the engine is started.

It is possible to prepare for accident by any chance by preventing forgetting to turn on the main unit's power supply and failing to take movie.

■ simultaneous recording before and after

With the rear camera, the total viewing angle reaches 290 degrees, and it is possible to record simultaneously around.

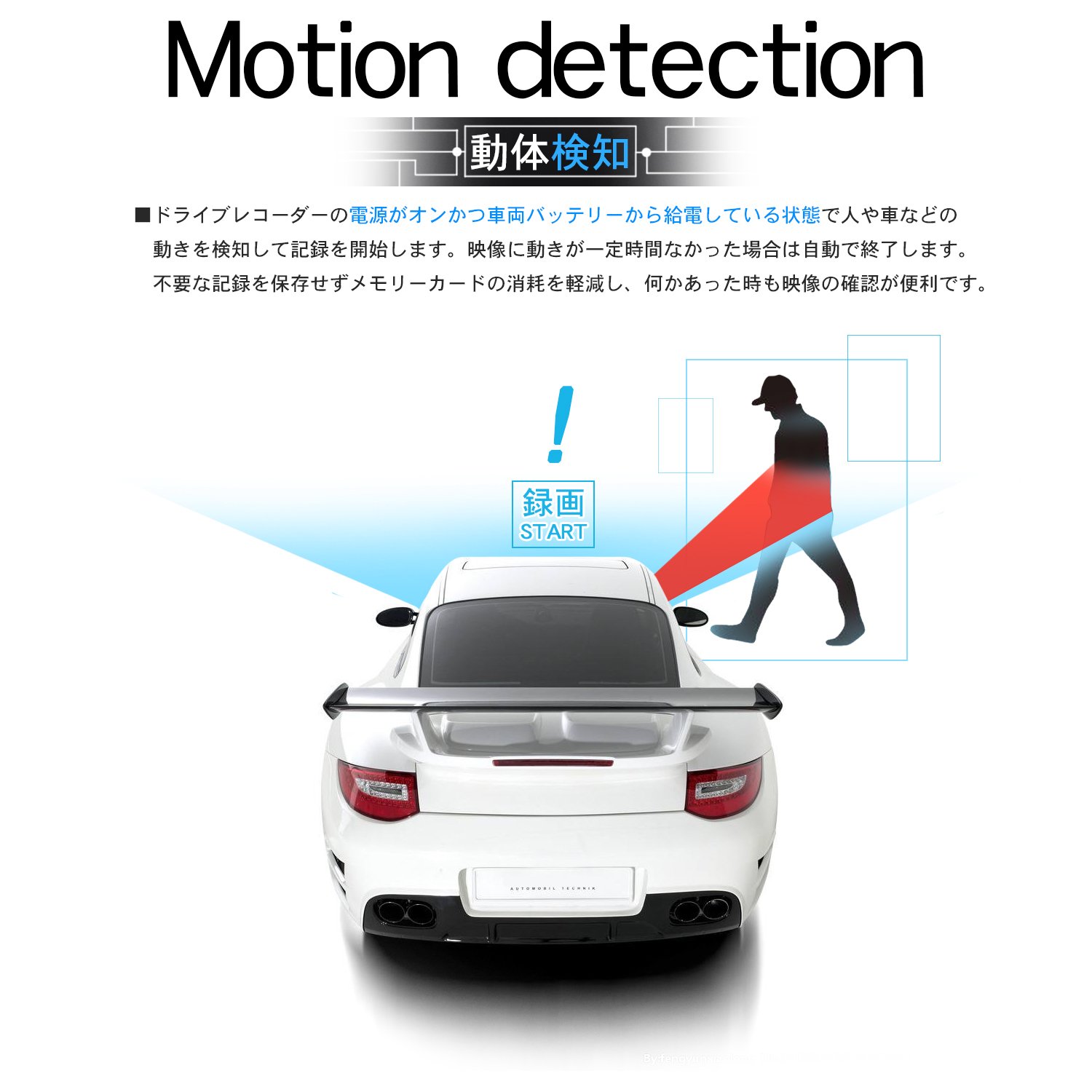

■ Motion detection

With the drive recorder powered on and powered by the vehicle battery, it detects motion of people, cars, etc. and starts recording.

If there is no movement in the video for a certain time, it will end automatically.

It does not save unnecessary records, reduces the wear of the micro SD card, and it is convenient to check the video even when something happens.

In case

Parking monitoring

You can record sound and video even when you are not wearing the engine, so you can find a culprit using video as a clue even in case of escape or mischief.

When the drive recorder enters "parking monitoring mode", recording is not always done, it is a function to start recording when vibration is detected by the sensor mounted in the drive recorder.

After saving 10 to 20 seconds of video data, the power automatically goes down and it returns to the parking monitoring standby state, so there is the merit of being able to suppress consumption of built-in battery

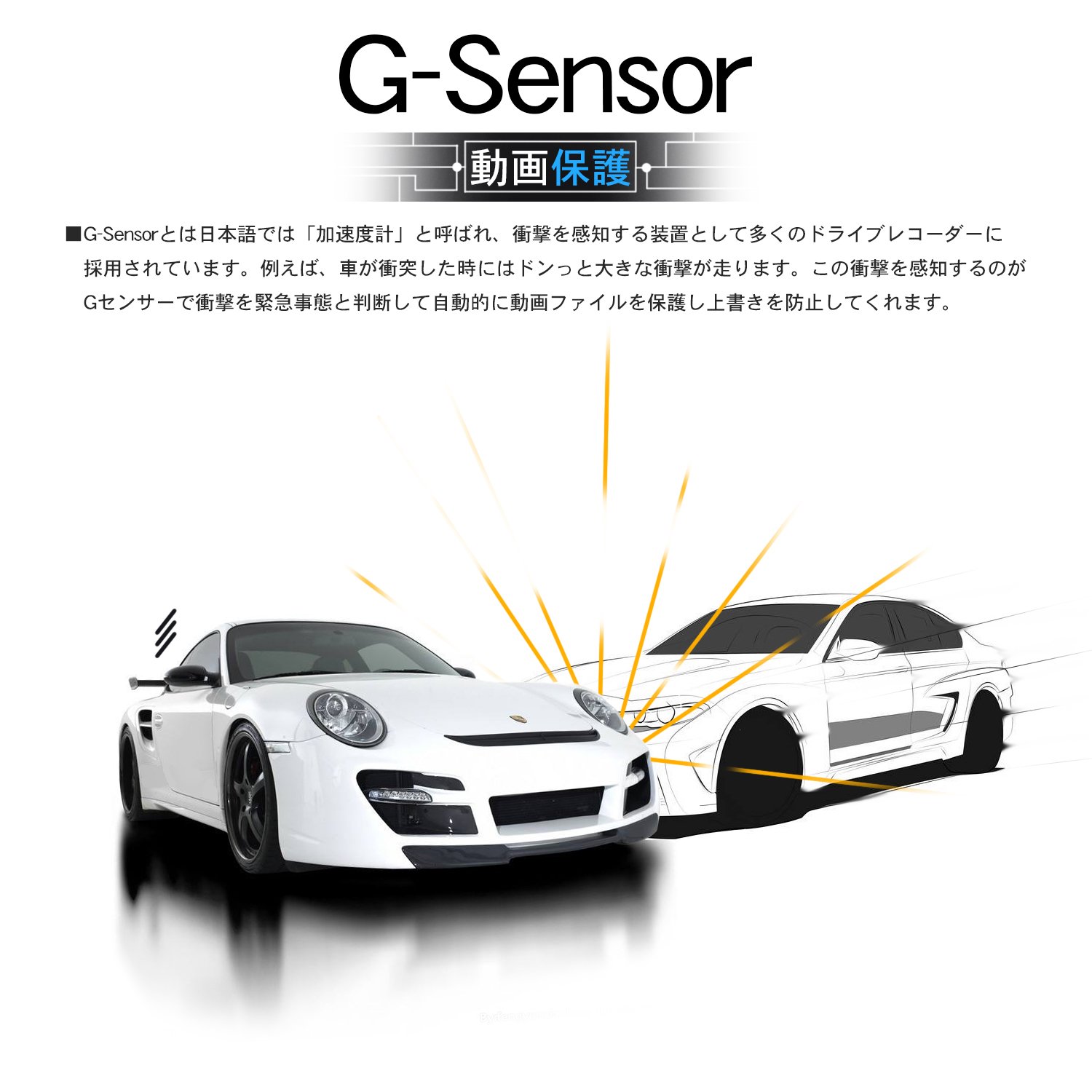

Built-in G-Sensor

In Japan, "G - Sensor" is called "accelerometer" and it is adopted as many drive recorder as a device to sense impact.

For example, when a car collides, a big shock runs don.

It is the G sensor that detects this shock by judging the shock as an emergency situation automatically protects the moving picture file and prevents overwriting.

■ Other

Operating electricity: DC 5V

Power supply frequency: 50 Hz / 60 Hz

Operation menu language: Japanese / English

Dimensions: 310 x 41 x 80 mm

Body weight: Approximately 268 g

Body color: Gold Black

Operating temperature: -5 ℃ to 45 ℃

Storage temperature: -20 ° C to 60 ° C

With Japanese instructions

150 degree viewing angle

■ Image sensor: 1/4 type high sensitivity low noise CMOS sensor

■ LCD Monitor: Super Large Screen 4.0 inch TFT Color LCD

■ Camera lens: Full glass system F2.0 REAL 3.2mm Horizontal field of view 150 degree wide angle lens IR-Filter (measured verified) Rear camera mounted, total viewing angle reaches 290 degrees, can be recorded simultaneously.

In case

HD image quality

■ Movie resolution: Up to 1080 FHD (1280 × 720 P)

■ Parking mode: OFF / ON Detects vibration of the car body, the camera automatically starts up, and records for 15 seconds.

■ G sensor: off / high / medium / low

■ Movie recording format: AVI

■ Movie Frame Rate: Up to 30 fps (Video compression function is OFF status)

■ Date / time: Simultaneous recording in image data

■ Data recordable time: About 3 hours / 8GB MICROSD card / VGA mode

■ Recording method: Overwrite method (Section can be set off / 1 minute / 2 minutes / 3 minutes setting possible)

Other

■ Loop recording

The recorded video data is saved on the memory card as a single file each time.

When the capacity of the memory card runs out, the oldest movie file is overwritten with the new movie.

Note: Since the file that can not be overwritten is locked (by G - Sensor), there is no concern that it will be deleted as an old movie.

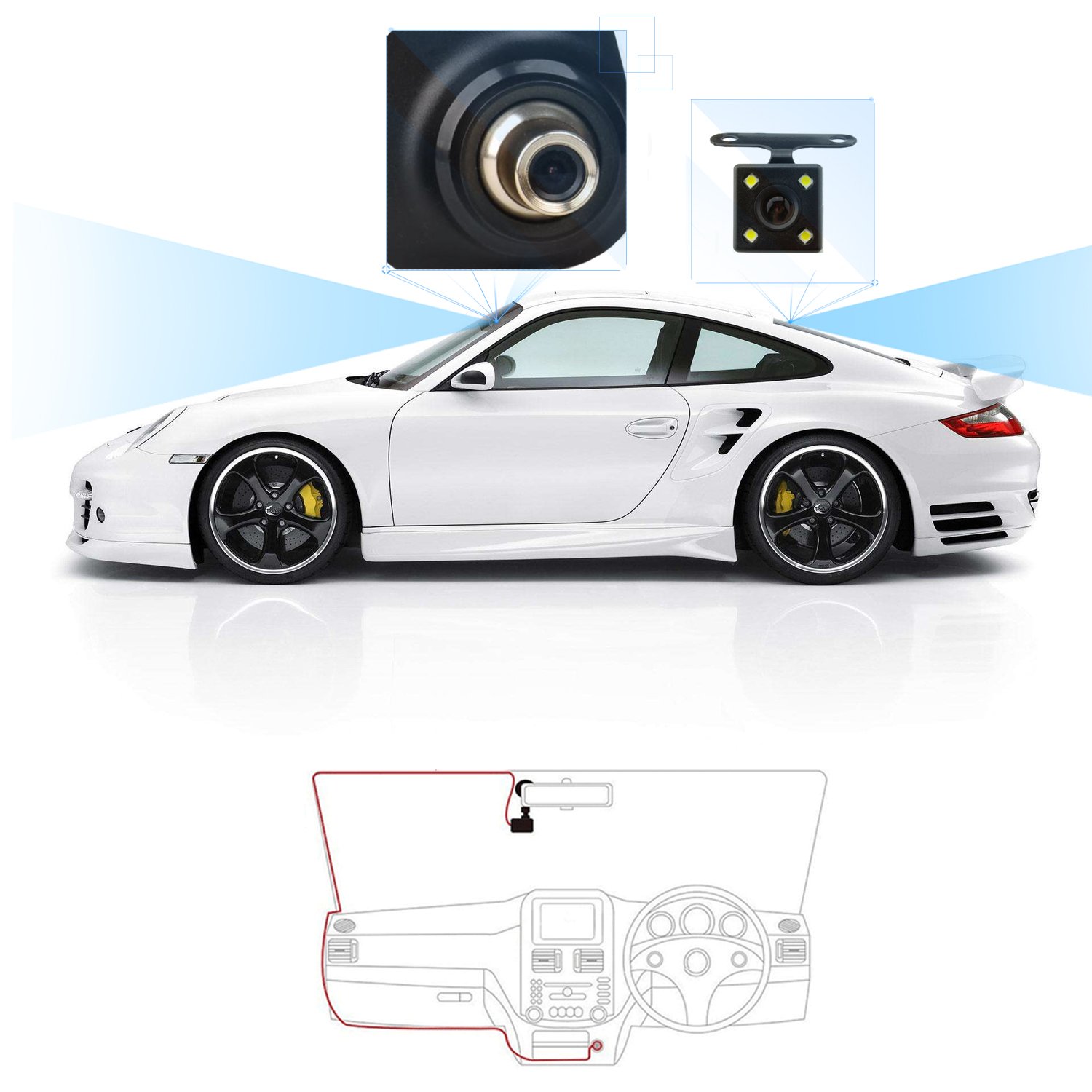

■ Easy installation (tool unnecessary)

We attach this product to the rearview mirror, serve as a mirror, and it will not disturb the sight of driving.

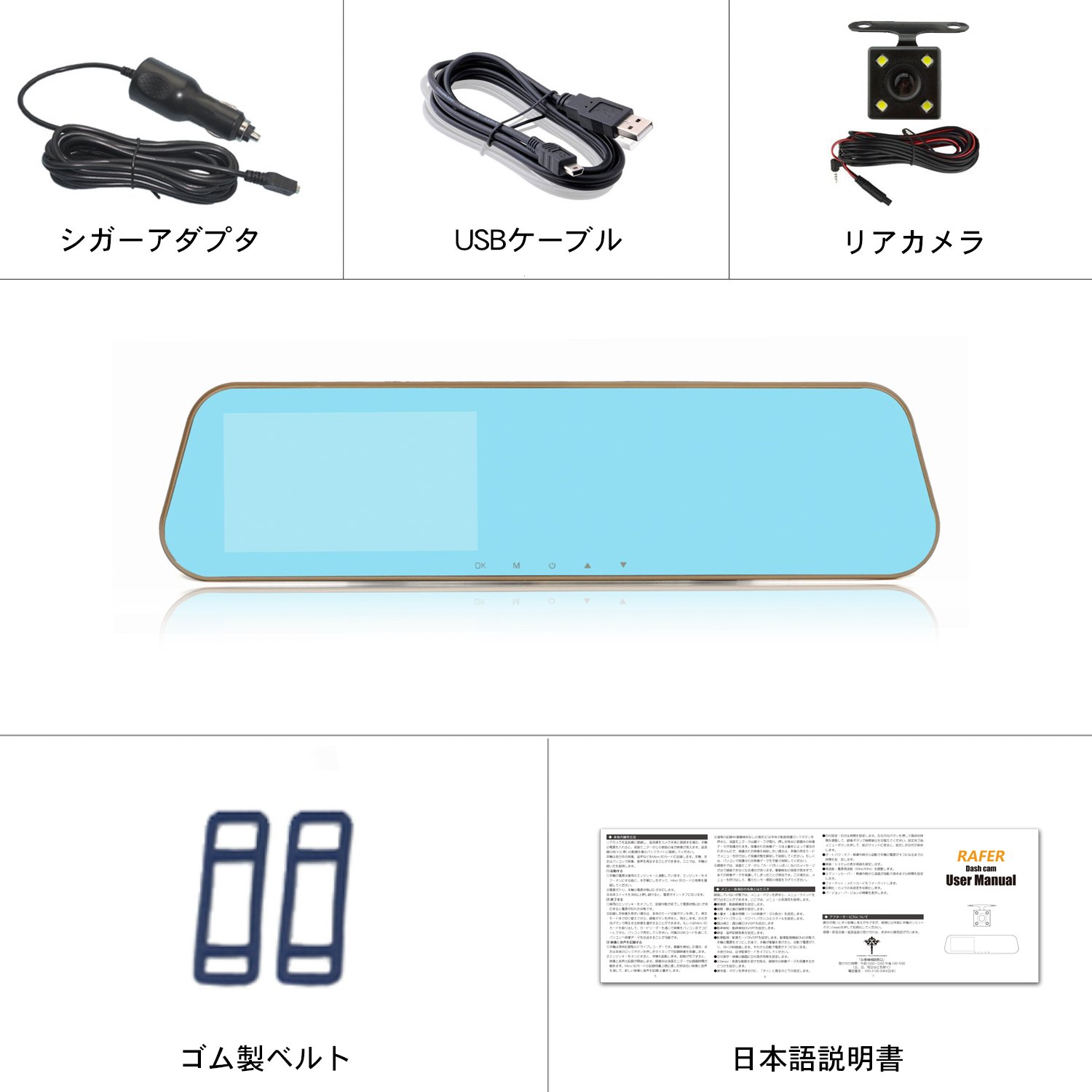

■ List of enclosed items

A800 Blue mirror drive recorder

12V DC / 5VDC car charger

USB cable

Rear camera (with extension line)

Rubber belt * 2

Japanese Instruction Manual

Features:

• 【290 degree viewing angle】 With the rear camera, the viewing angle of the front and rear lenses reaches 290 degrees, and you can record simultaneous recording of 1920 x 1080 FULL HD picture quality.
• [Parking monitoring] With built-in battery, even when the engine is off, images of 20 seconds are recorded when there is a shock.
• [No break] Prevents missing important moments, no blank space between movie data, a break system with no breaks.
• 【Manual Movie Lock】 If you protect the movie data that recorded the circumstances in case of circumstances, press the manual movie lock button "fix button" to protect the picture so that it will not be overwritten.
• 【G-sensor function】 When the shock is detected, recorded video data is not deleted as overwriting as old data, so it protects important video.
• 【Mirror type design】 Because this product is mirror type size, it is inconspicuous in the car, it will not disturb the visibility of the vehicle while driving.
• 【With Japanese instructions】 With simple Japanese instructions, it can be installed easily.
• [Recording medium] microSD / microSDHC (Minimum 4 GB to 32 GB compatible) * Optional ※ This product is dedicated to 12 VDC car.

Product information:

Shipping Weight: 621 g

Package Dimensions: 6.20 x 12.19 x 33.70 cm
