Product Description

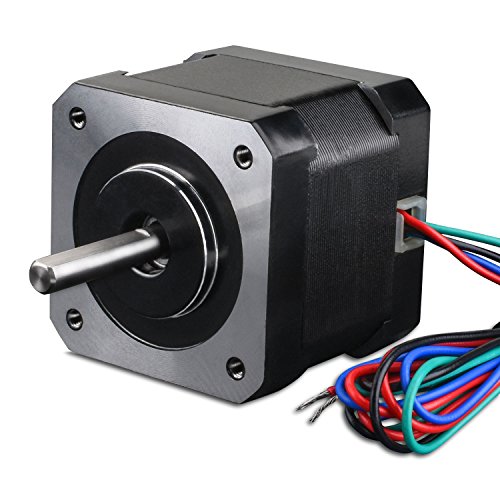

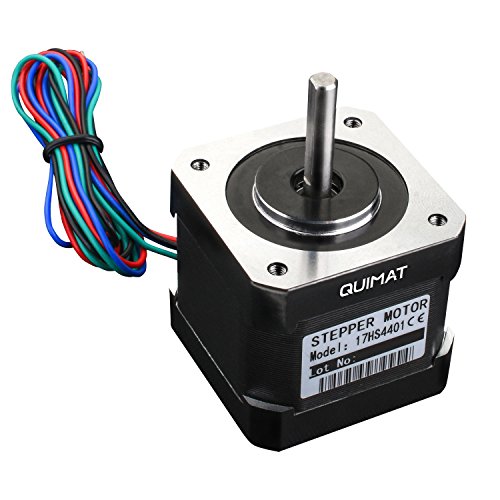

Stepper Motor Specification:
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 40Ncm(56.6oz.in)
* Rated Current/phase: 1.7A
* Phase Resistance: 1.5ohms
* Inductance: 3.0mH+/-20%(1KHz)
* Frame Size: 41 x 41mm
* Body Length: 48mm
* Shaft Diameter: 5mm
* Shaft Length: 24mm
* D-cut Length: 15mm
* Number of Leads: 4
* Lead Length: 1m with connector
* Weight: 280g

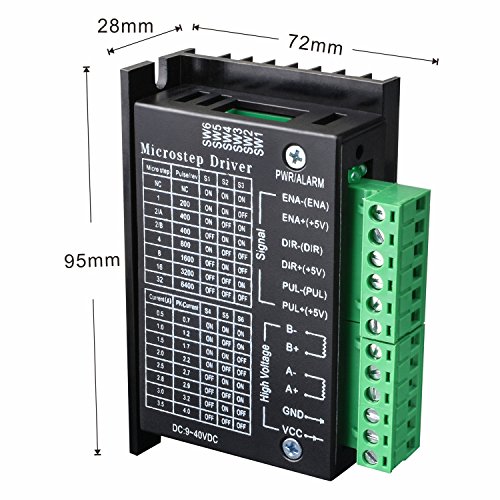

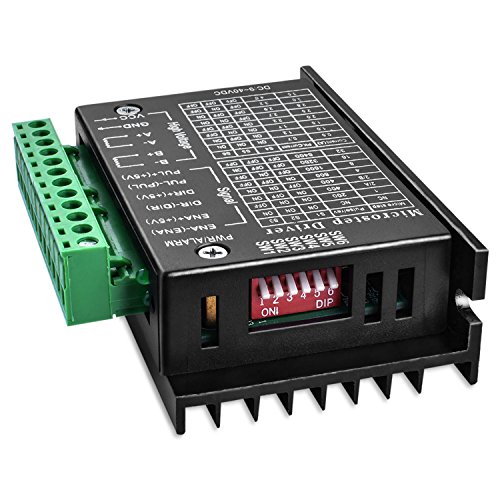

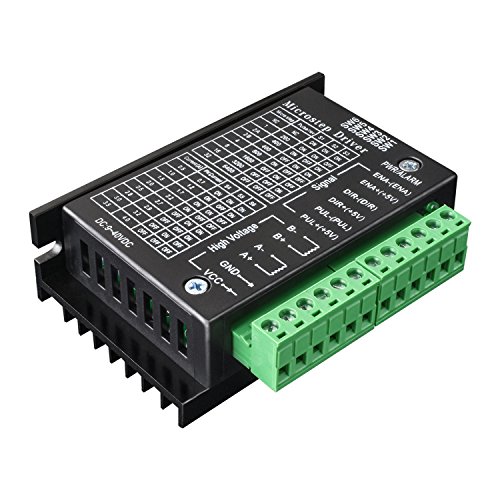

Stepper Motor Driver Specification
*9V-40V DC power supply.
*H-bridge bipolar constant phase flow driver.
*The maximum output current is 4.0A (eight optional).
*Up to 32 segments of six kinds of sub-modes available.
*The input signal high-speed photoelectric isolatio.
*Standard common anode single pulse interface.
*Offline keep function.
*Semi-enclosed chassis can adapt to a more demanding environment.
*Provide energy saving semiautomatic current lock function.
*Built-in thermal protection and over-current protection.

Note:
*This driver is the upgraded version TB6600, heightening segment to 32 subdivision, suitable for high segmentation applications.
*For step motor: 42, 57, 86 type 2 phase 4 phase (4 / 6 / 8 line).

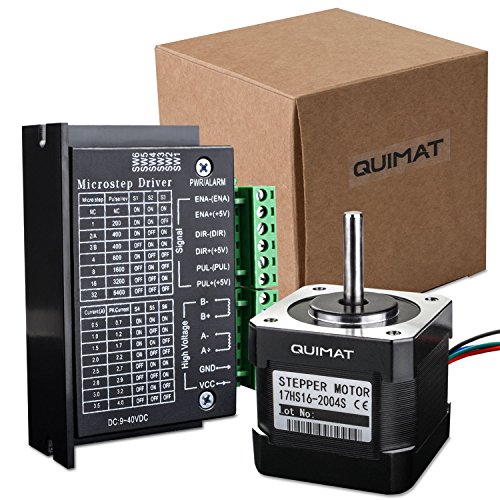

Package included: *1 x TB6600 Stepper Motor Driver Controller.

Feature

Stepper Motor - NEMA 17 model, 3D printer motor with 40Ncm(56.6oz.in) high holding torque
Stepper Motor Driver - 9V-40V DC power supply, H-bridge bipolar constant phase flow driver, up to 32 segments of six kinds of sub-modes available
Stepper Motor Rated current - 1.7A & resistance 1.5ohms
Stepper Motor Driver maximum output current - 4.0A (eight optional).
Technology Support - Professional Engineer Team is on standby to provide solutions for your questions.
Brand : Quimat
MPN(PartNumber) : QD07C
Package Dimensions(LxWxH) : 16x12x9cm ; 499 g
