Item Descriptions:

VANZ SHOP

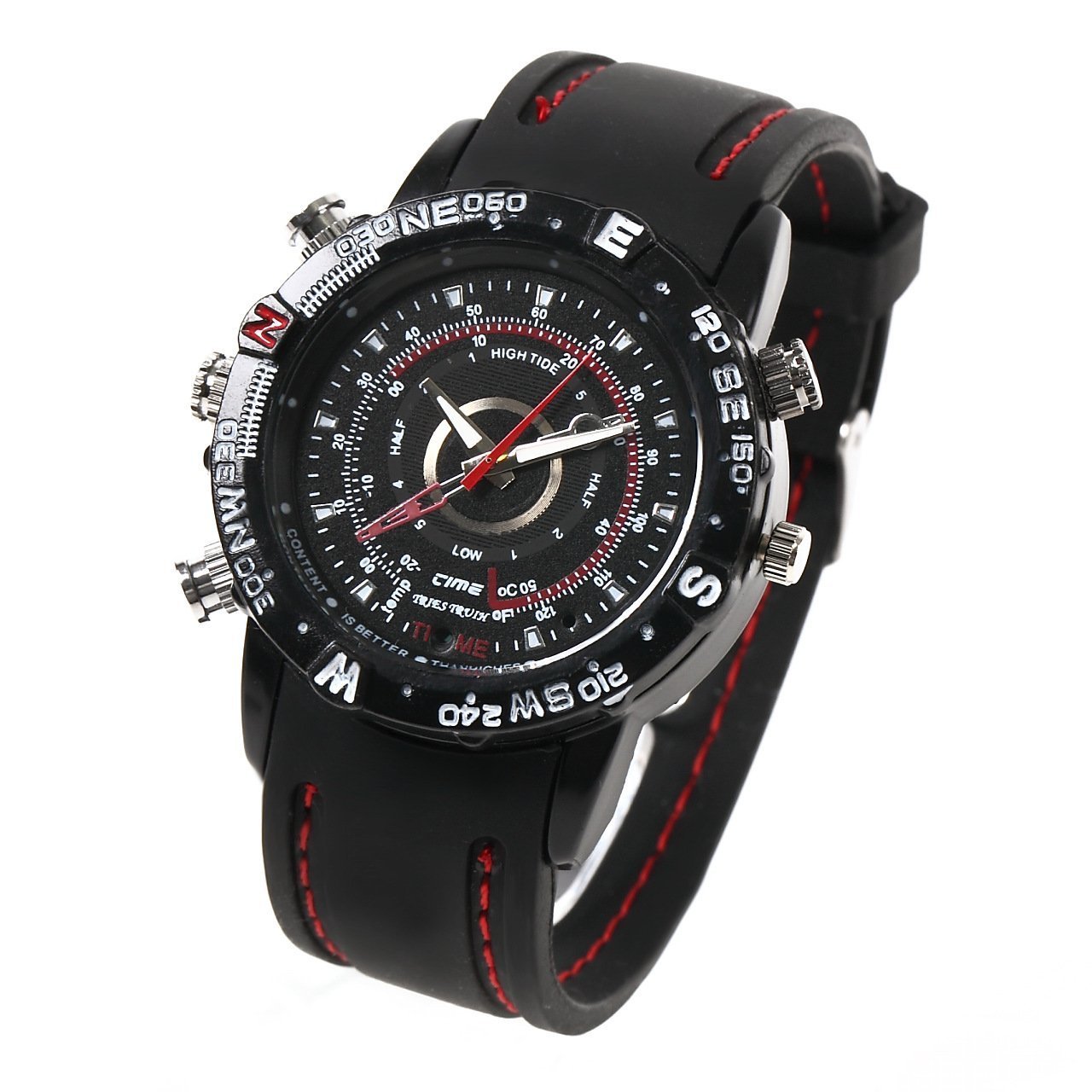

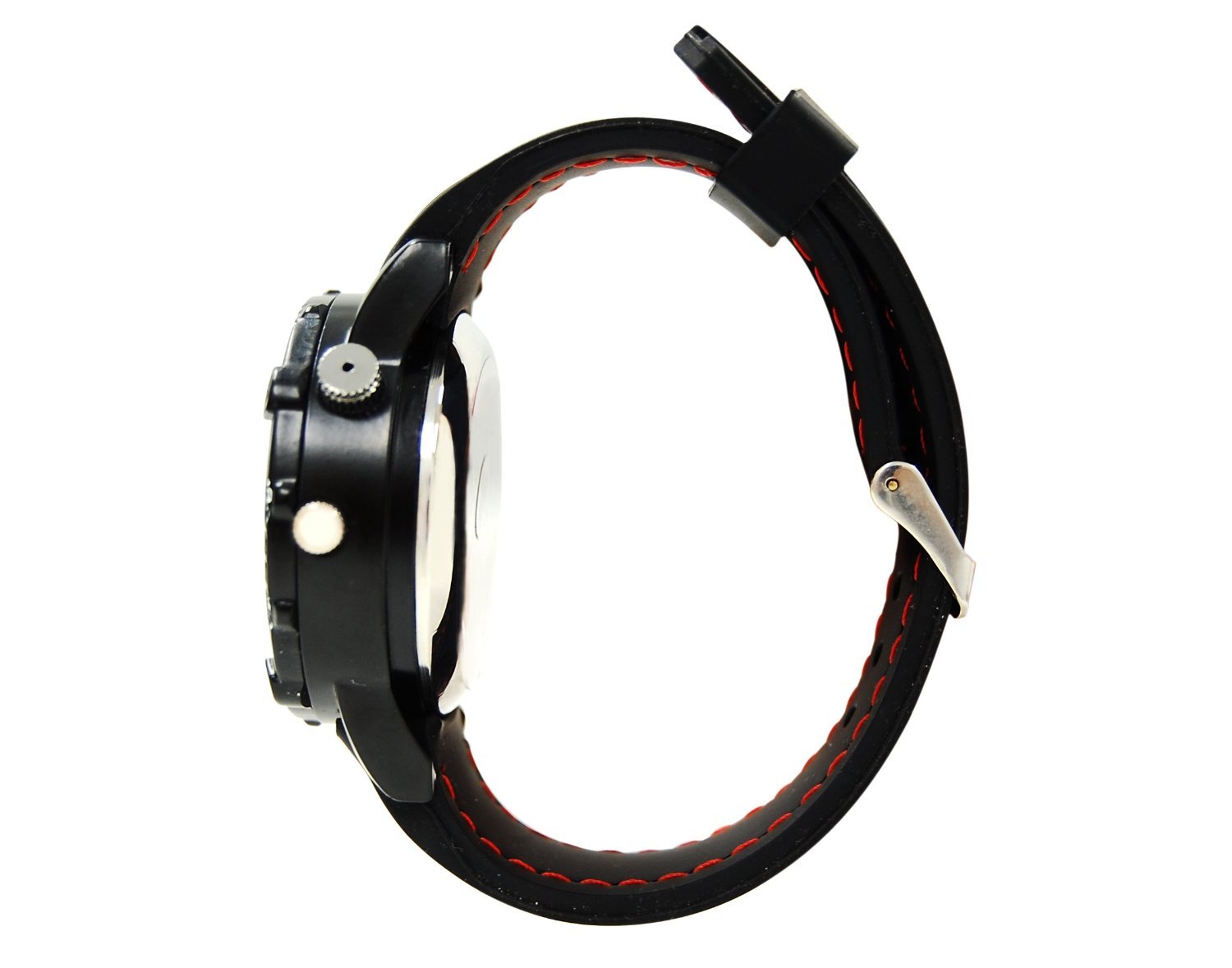

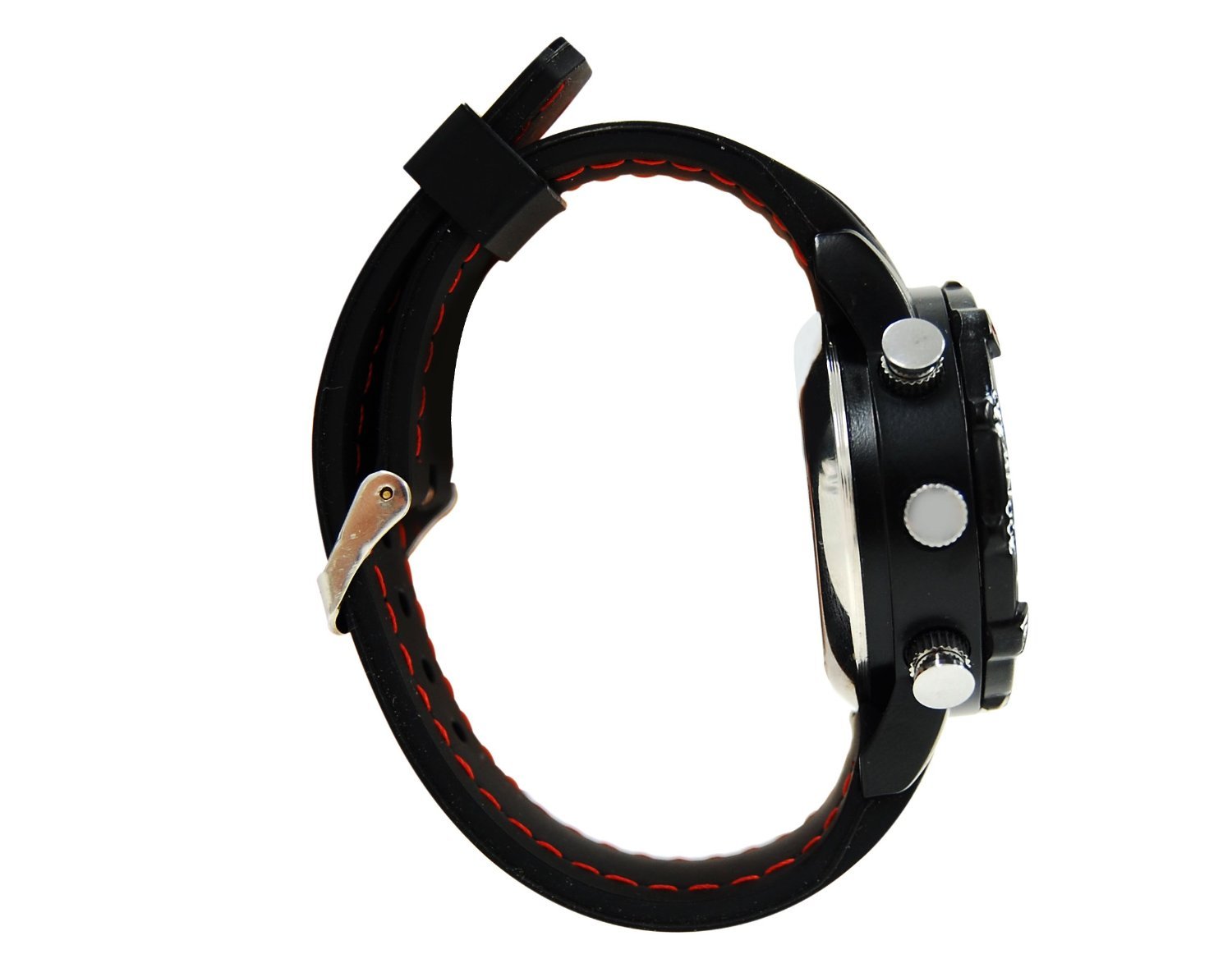

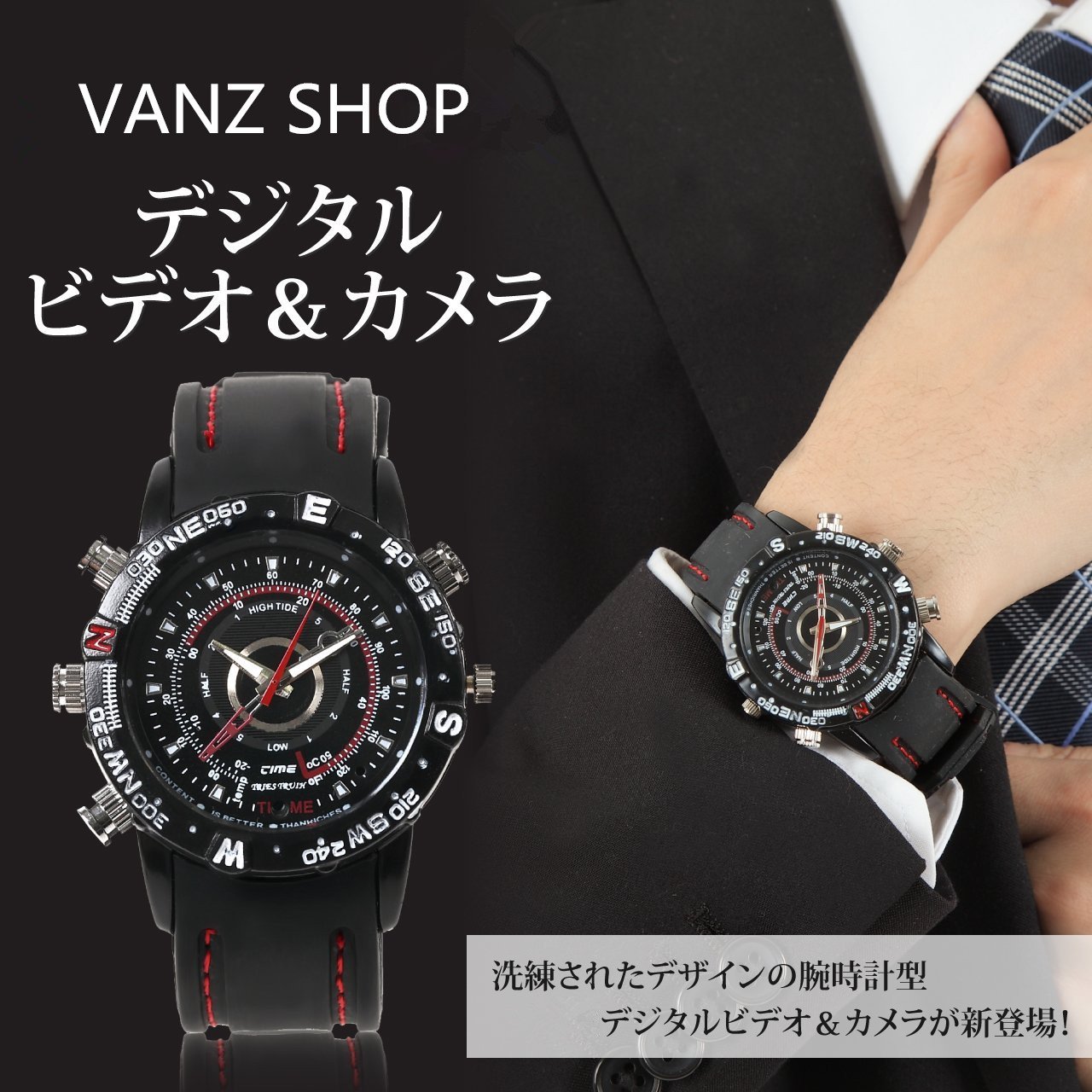

Watch camera handled by

[Product specifications]

weight

: Approximately 85 g

Built-in memory

: 8 GB

Movie resolution

: 720 × 480pix

frame rate

: About 30 fps

Movie format

: AVI

Still image resolution

: 1280 × 1024pix

Still image format

: JPEG

Recordable time

: Up to about 90 minutes

accessories

: USB cable · Waterproof cap · English / Chinese manual

● Multifunction model

Recording, shooting still images, recording function

powered by!

Still picture shooting and recording function can be used as well as recording.

You can shoot at high resolution of 720 × 480 (movie) and 1280 × 1024 (still image).

● Easy operation

Only long press and short press operation!

Easy to save data and charge, simply connect with the USB cable attached to the USB terminal of the PC!

● Built-in memory

8 GB

It corresponds to a maximum of 16GB.

Precision tools are required to open the back cover.

● Waterproof function installed

There is no problem if it is waterproof life.

With waterproof cap.

● Removable disk function

By using the included USB cable, connecting to the computer will automatically recognize it, so you can play movies, photos and so on.

● Frame 30 fps

Because it is 30 fps, it reproduces beautiful high quality image.

About operation

Power supply

on

: 【Power / Record】 button

About 2 seconds

Long press

Then, the blue pilot light is turned on,

Standby mode

It enters.

In case

Recording:

In standby mode

【Power supply

Recording

button

To

Times

When pushed briefly, when the blue pilot lamp blinks three times and it goes out,

Recording

We will begin.

Also, "Button at 8 o'clock"

Press briefly

Once, the blue pilot light turns on and the recorded file

Save

Then it returns to standby mode.

I seem to pick up the sound clearly

Please remove the screw lid of the microphone part before recording.

Shooting still images:

In standby mode

Shooting still images

Recording

sound】

button

To

Times

When pushed, the red pilot light blinks once, the blue pilot lamp lights up, and a picture is taken.

again

Shooting still images

Recording

sound】

button

To

Times

Push to take a picture.

In case

recording:

In standby mode

Shooting still images

Recording

sound】

button

About 2 seconds

Long press

Then, when the red pilot light blinks three times and it goes out,

recording

We will begin.

Also

Shooting still images

Recording

sound】

button

To

1 time

When pushed briefly, the blue pilot lamp will be lit and the recorded file

Save

Then enter standby mode.

I seem to pick up the sound clearly

Please remove the screw lid of the microphone part before recording.

again

Shooting still images

Recording

sound】

button

About 2 seconds

Long press

if you do,

next

recording

We will begin.

In case

Power supply

off

【Power supply

Recording

button

To

Press and hold for about 2 seconds, turn off the power when the red pilot light flashes three times and it goes out.

Video date stamp settings:

After using the product (recording, recording, or taking a still picture), a text file called time.txt is automatically created in the memory of the main unit,

After connecting the main unit to the personal computer using the USB cable, the removable disk (temporary) is detected in My Computer.

Open the text file called time.txt in the root directory, write the current time and save the data.

reset:

【Power supply

Recording

button

While holding down,

Shooting still images

Recording

sound】

button

Press briefly once.

charging

Using the supplied USB cable, connect to the computer or adapter and charge.

please note:

If you can not find the data by connecting to the PC properly (taking / recording / recording the still picture) normally, please format the removable disk (temporary) and check the operation again.

If the data is damaged, please connect to the personal computer and format the internal microSd card of the main unit.

Features:

• Please enter model number Confirm this is compatible:
• Anytime, anywhere.
• You can also record and record meetings and business negotiations!
• It is compact size and convenient to carry.
• You can use it as a voice recorder as well as movies and still images.
• It is useful for emergency shooting and troubleshooting measures.

Product information:

Shipping Weight: 181 g

Package Dimensions: 6.81 x 10.01 x 11.81 cm
