Product introduction

● HDMI L-type adapter that can effectively use the space on the back of the TV ● Gold-plated plug to prevent deterioration of image quality / sound quality ● Compliant with specified hazardous substance restriction "RoHS Directive" ■ Supported models: Male side: AV equipment with HDMI input terminal

, HDMI cable (male) - HDMI plug (female) ■ Supported resolution: WQXGA / 1080p ■ Corresponding color depth

: Up to 48bit * 1080p (corresponding to Deep Color) ■ Supported audio formats: • Dolby Digital • DTS • DVD Audio • SACD • Multi-channel PCM (up to 24 bit / 192 kHz) • Dolby Digital Plus • Dolby True HD • DTS-HD High

Resolution Audio · DTS-HD Master Audio ■ Color gamut standard: xvColor compatible ■ Body size: W45 × D12 × H31 mm ■ Body weight: 9 g

From Amazon

Use your existing HDMI cable without waste !!

HDMI conversion adapter playing an active part in various scenes

HDMI conversion adapter 4 series active in various scenes.

Without wasting your HDMI cable,

Easy extension of HDMI relay adapter (BSHD 13RL),

HDMI to use when you want to connect your HDMI cable to a digital video camera with HDMI mini terminal

Mini conversion adapter (BSHD 13 MN),

The HDMI L type adapters (BSHD 13 LV, LH) that can effectively utilize the space on the back of the TV

Lineup of 4 series in total.

■ Relay adapter (BSHD13RL) that can extend your existing HDMI cable

You can easily extend the existing HDMI cable without wasting it, so you do not need to purchase a new long cable.

* Please make sure that the extended extension of the extended cable does not exceed 5 m.

※ This product does not include the repeater function.

■ Conversion adapter (BSHD13MN) that can connect your HDMI cable to the device with HDMI mini terminal

It is an HDMI mini conversion adapter used when you want to connect your existing HDMI cable to a digital video camera with HDMI mini terminal.

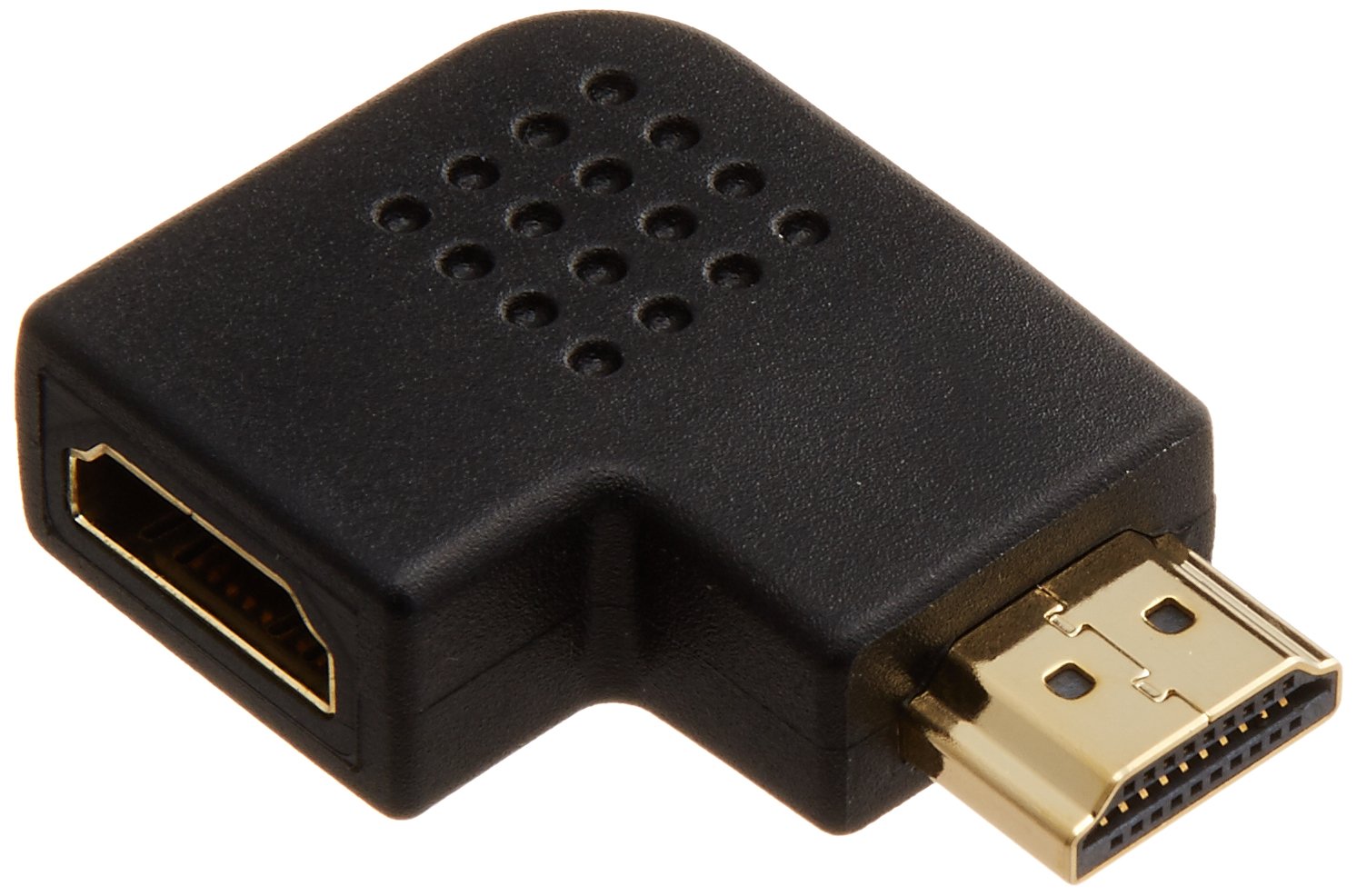

■ HDMI L type adapters (BSHD 13LV, LH) that can effectively use the space on the back of the TV

HDMI L type adapter that can effectively utilize the space on the back of the TV.

Vertical type and horizontal type are available which can be selected according to the direction of the HDMI terminal of the TV.

HDMI L type adapters that can effectively utilize the space on the back of the TV

■ Gold / plated plug to prevent degradation of picture quality / sound quality

Adopted gold-plated plug on the connector terminal.

It has low contact resistance and is resistant to aged deterioration such as rust, so it suppresses deterioration of image quality.

■ Compliant with specified hazardous substance restriction "RoHS directive"

It conforms to "RoHS Directive" for restricting the use of specified hazardous substances to electronic devices enforced in the EU area from July 2006.

● Substances whose use is restricted by the RoHS Directive

(1) lead, (2) mercury, (3) cadmium, (4) hexavalent chromium, (5) polybrominated biphenyl (PBB), (6) polybrominated diphenyl ether (PBDE)

■ Corresponding information

Compatible models:

[· BSHD 13 LV, · BSHD 13 LH]

Male side: AV equipment with HDMI input terminal, game machine, personal computer and peripheral equipment for personal computer

Female side: HDMI cable

[· BSHD 13 MN]

Male side: Digital video camera with HDMI mini input terminal etc.

Female side: HDMI cable

[· BSHD 13RL]

HDMI cable

■ Product Specification

HDMI standard: conforming to HDMI version 1.3

Connector shape:

· BSHD 13 LV, BSHD 13 LH: HDMI plug (male) - HDMI plug (female)

· BSHD 13 MN: HDMI mini plug (male) - HDMI plug (female)

· BSHD13RL: HDMI plug (female) - HDMI plug (female)

Supported resolution: WQXGA / 1080p

Corresponding color depth: up to 48 bits

* When it is 1080p (Corresponds to Deep Color)

Supported audio format:

· Dolby Digital

· DTS

· DVD Audio

SACD

· Multi-channel PCM (up to 24 bits / 192 kHz)

· Dolby Digital Plus

· Dolby TrueHD

· DTS-HD High Resolution Audio

· DTS-HD Master Audio

Color gamut standard: x.v. Colol correspondence

Body dimensions:

· BSHD 13 LV: W 20 × D 17 × H 28 mm

· BSHD 13 LH: W 45 × D 12 × H 31 mm

· BSHD 13 MN: W 35 × D 11 × H 22 mm

· BSHD13RL: W29 × D12 × H22 mm

Body weight:

· BSHD 13 LV: Approximately 9 g

· BSHD 13 LH: Approximately 18 g

· BSHD 13 MN: Approx. 8 g

· BSHD13RL: Approx. 9 g

Package dimensions: W75 × D25 × H 160 mm

Package Weight:

· BSHD 13 LV: 42 g

· BSHD 13 LH: 51 g

· BSHD 13 MN: 42 g

· BSHD 13 RL: 42 g

Product composition: Body (1 piece)

Features:

• Please enter model number Confirm this is compatible:
• 4950190126393

Product information:

Shipping Weight: 18 g

Package Dimensions: 2.59 x 7.80 x 16.00 cm
