video input Network Video 8CH

Network video input broadband20Mbps

video output HDMI input 1ch，resolution：1024x768，1366x768，

1440x900,1920x1080p

VGA output1ch，resolution：1024x768，1366x768，

1440x900,1920x1080p

AV CODEC Specification

Video Resolution720P

synch-playback4CH

Video Control Video/Capture mode Maual、Time、Motion、Alarm

Playback modeReal time、Routine、Event

BackupUSB backup

Hard Disk Type 1*SATA interface

Max Capacity4 TB at most for each

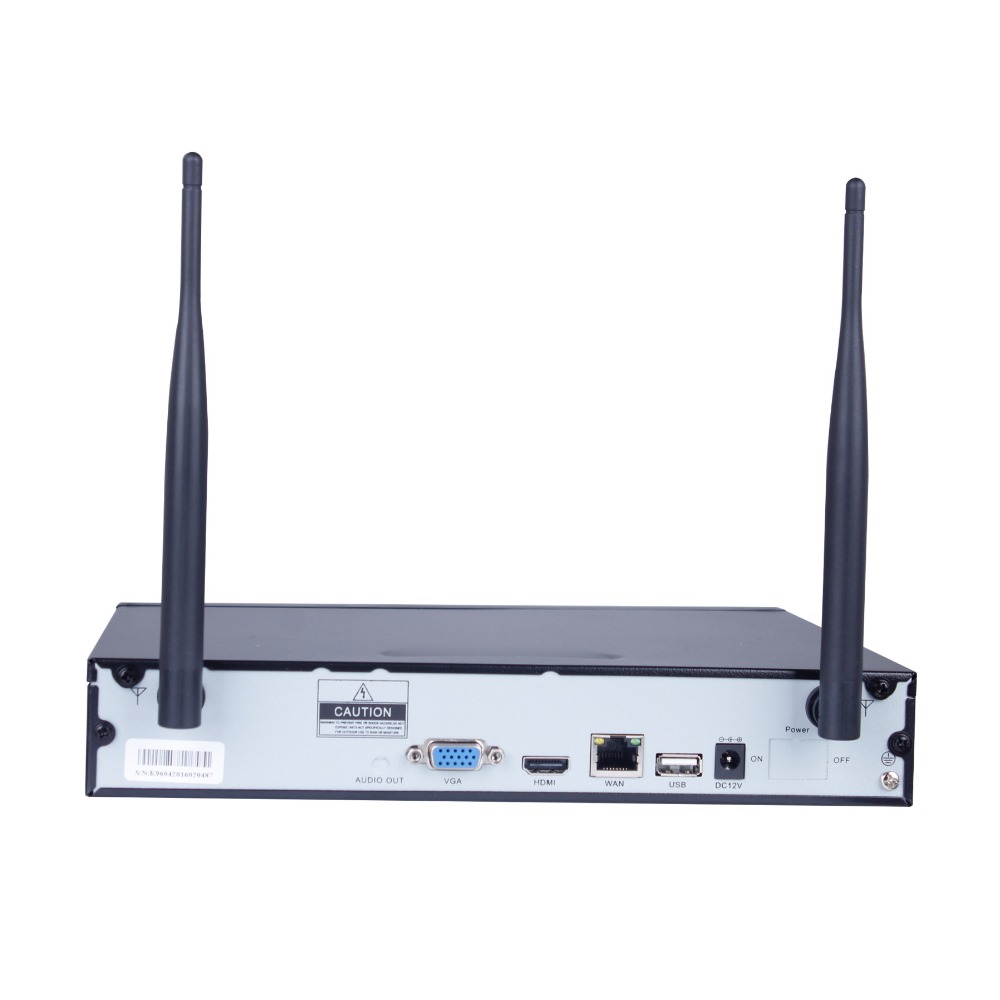

External Interface Network Interface one adaptable RJ45 10M/100M, one 2.4Ghz WIFI interface

USB InterfaceUSB 2.0

Network Control Protocol UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)

DHCP (Automatically obtain an IP address)

Others Power Supply DC12V2A

Power Consumption (W)≤5W（Without HDD）

Operate Temperature (°C) -10℃~+55℃

Working Humidity (%) RH10%~90%

IP Camera  Specification

Sensor1/4” Progressive CMSO Sensor

Signal SystemPAL/NTSC

Resolution1280 x 720

Minimum illuminationColor: 0.1 Lux;  B/W: 0.01 Lux

Shutter1/25s to 1/25,000s

Lens3.6mm

OSDDate Time & Title

White BalanceAuto

Day&NightAuto / Color / BW

3D-DNRAuto

Mirror/FlipOn / Off

Frame SpecificationThree Streaming at the Same Time:

H.264 1280x720@15fps or below

H.264 640x480@30fps or below

S/N> 39.1 Db

InterfaceRJ45 / WIFI 802.11b/g/n

General Specification

Anti-thunder LevelStandard IEC61000-4-5

Working Temperature/Humidity -10℃ to +50℃ / 30% to 80% RH

Working Temperature/Humidity -20℃ to +60℃ / 20% to 90% RH

Power InputDC12V1A

Power consumption≤6W

Level of ProtectionIP66

Package Dimension410*290*270mm

Package Weight6.05kg

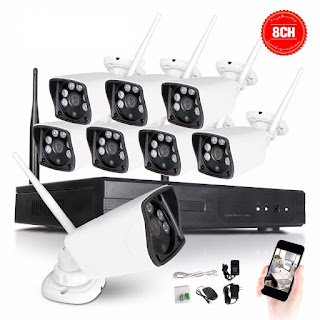

Package included :

1pcs WIFI NVR

8pcs WIFI Camera

2 pcs Screw bag (4 screws for HDD)

1pcs Mouse

8pcs DC 12V1A Power adapter

1pcs 12V2A Power Adapter

 1 pcs User manual

8pcs Screw bags  (for IPC)

1 pcs network cable
