Item Descriptions:

Product introduction

● By adopting a wide angle lens it is possible to confirm the appearance of the entrance.

● Convenient when you are out.

Movie can be recorded on SD card (sold separately) visitors.

(Maximum 3,000 videos can be recorded for about 30 seconds in one case * The number varies depending on the capacity of the SD card.)

● Suitable for outdoor wireless camera (sold separately).

● The monitor master unit realizes a slim depth of about 23.5 mm, without feeling of a trip from the wall, it also harmonizes with the interior.

● Confirm visitors with color even at night "LED light loading"

● Two types of electrical locks compatible with JEM-A and A contact output can be connected.

Electric lock can be unlocked / locked from the monitor parent machine, the wireless handset without going to the entrance.

※ One electric lock that can be linked is one set.

Electrical lock corresponding to A contact output can only be unlocked.

● Wireless monitor Personal correspondence can be handled by handset as well as Phone adopted Panasonic's DECT compliant system phone · Fax (sold separately) to subscribe phone is also possible.

● Notice to door phone when window or door opens "window / door sensor connection".

● Panasonic's compatible telephone - Facsimile reception with fax "wireless adapter function".

Attention (Disclaimer)> Please be sure to read

● The product is only delivered to the entrance.

There is no installation / installation / collection.

● Order cancellation after shipment of products is inevitable (except for mistakes in shipping products, initial failure).

● Products with stock are shipped on the same day basically (except on holidays).

● It may be subject to manufacturers.

We will cancel at maker shortage due to store reasons.

● Please check the specifications of the product and manufacturer's warranty details well on the manufacturer's website etc.

Features:

• ● Base unit (monitor): about 14.3 × depth 2.35 × height 18.6 cm Weight: about 480 g ● entrance door (camera): about 9.9 × depth 2.65 × height 13.1 cm weight: about 175 g ● slave (wireless
• Monitor): about width 5.2 × depth 3 × height 17.3 cm Weight: about 165 g
• Approximately 6 W, screen display = approximately 3.5 type color liquid crystal display, calling mode = voice alternating automatic switching system, standby mode = power consumption = (about 60 W)
• Wireless communication method = 1.9 GHz TDMA-WB
• Format of compatible SD card = (SD memory card) 2GB (SDHC memory card) 4GB to 32GB (SDXC memory card) 48GB · 64GB,, Format of compatible SD card = = (SD memory card) FAT16 (SDHC memory
• Card) FAT32 (SDXC memory card) exFAT
• Supply method = JIS 1 switch box adaptation, minimum subject illuminance = 1 lux (within about 50 cm from the camera), mounting angle: approx.
• Lighting method = LED light (lighting lamp), waterproof = IPX 3
• Approx. 2.2 inch color liquid crystal display, wireless communication system = 1.9 (standby mode), standby on charging stand, display display = about 2.2 type color specification display 1: power supply = special nickel metal hydride battery (product number: KX-FAN 55) (DC 2.4 V) (650 mAh)
• GHz TDMA-WB, call method (door phone call) = voice alternate automatic switching method
• Approximately 80 hours, charging time = approximately 10 hours (standby time) Approximately 2 hours (external phone call (earpiece call)) Approximately 2 hours (handset phone (speakerphone)
• Time, available distance = approx. 100 m (line of sight with monitor parent machine)
• Charging platform specification: Power supply = AC 100 V (50/60 Hz), Power consumption = (standby) Approx. 0.25 W (Removing the handset from the charging base) (at charging) About 0.65 W

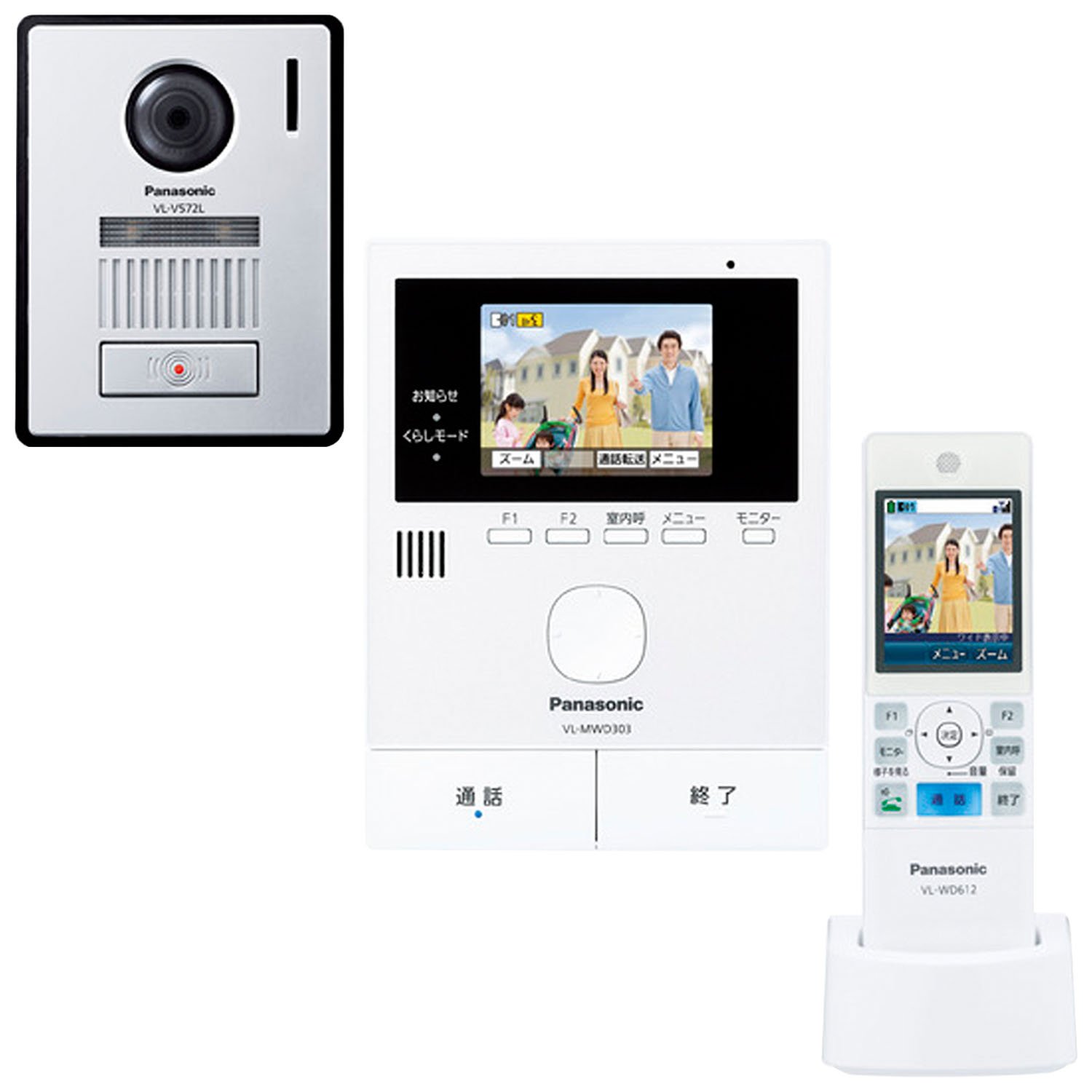

• Set contents: Monitor parent machine (VL-MWD 303), camera entrance machine (VL-V 572 L), wireless monitor slave unit (VL-WD 612), charger
• Accessories: For door phones = 2 wood screws × 2 small screws, for door phone parent machine = wall hanger bracket × 1 piece - Wall hanging wood screw × 2 piece - Wall hanging machine screw × 2 pieces

Product information:

Shipping Weight: 1465 g

Package Dimensions: 10.49 x 22.10 x 29.01 cm
