Item Descriptions:

Color:

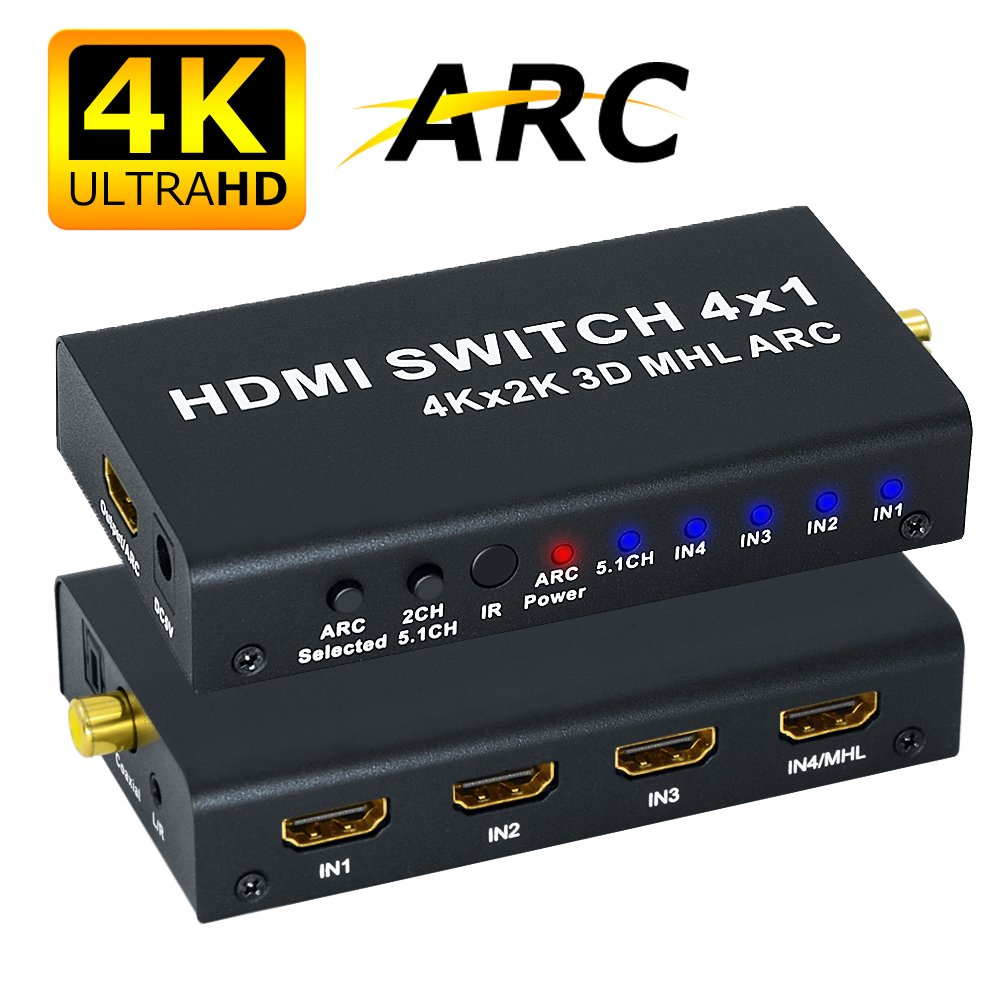

HDMI switch + audio output (4 × 1)

ELEVIEW 4 Kx 2 K ARC HDMI selector 4 input 1 output + sound separation (with remote control)

Up to 4 HDMI-equipped devices can be connected!

● One device with four HDMI terminals can be connected to the display device, and the input device can be freely switched.

● recorders and game consoles, when an increasing number of HDMI devices such as a personal computer is input terminal of the TV is no longer enough, if there is this machine, you can share a single HDMI input terminal with a plurality of HDMI devices.

● Recommended for those who are considering replacing the LCD monitor or who have trouble with TV input terminal shortage!

4K30Hz · 3D compatible!

● Output from the HDMI on the output side to the TV or monitor as it is (including video and audio).

● 3D image · 4K × 2K It corresponds to high quality image of 2160P.

● Supported models:

PS 3 · PS 4 · Xbox 360 · Blu-ray player · cable box · Apple TV · Chromecas · Fire TV

Such

* It does not guarantee that this machine operates correctly with all HDMI equipment.

Please note

ARC function correspondence:

● It corresponds to the technology "ARC (audio return channel)" for transmitting audio data through the HDMI input terminal.

● You can send the sound from the TV to the AV amplifier or the theater speaker.

※ In order to use the ARC function, and television HDMI, both of the AV amplifier and theater for speakers HDMI is required is that there is ARC function.

CEC function correspondence:

● the CEC (Consumer Electronics Control) by exchanging a control signal between devices such as a television or recorder, is that of the link ability to manipulate each other.

● For example, you can turn on the power of the Blu - ray recorder from TV or make reservation recording possible.

MHL function correspondence:

● MHL stands for Mobile High-definition Link, which is an interface for high-speed video transmission for mobile devices developed by Silicon Image Inc.

● You can charge movies, photos, music stored on your smartphone / tablet device while watching it on the TV screen.

* Because exclusive MHL to HDMI cable requires separate purchase, please note it beforehand

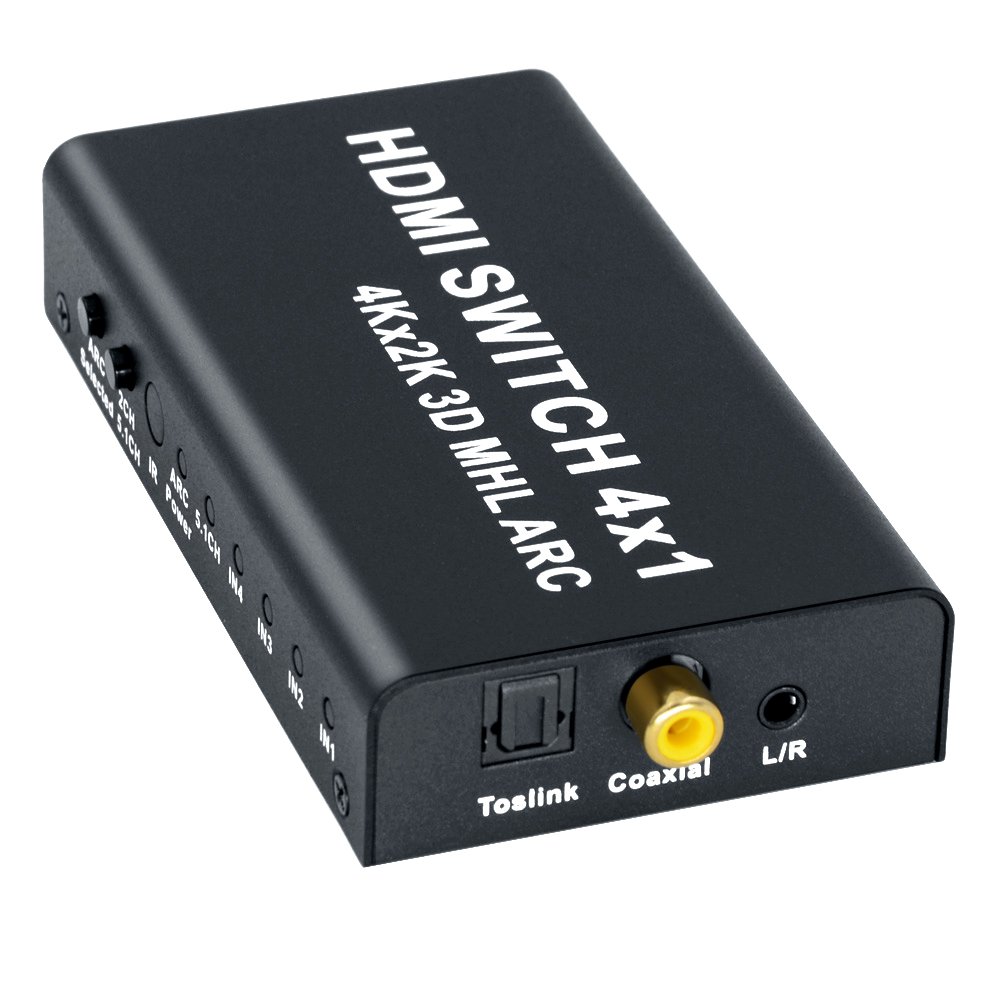

2.0 / 5.1 ch + 3 types of audio output ports installed!

3.5 mm

Stereo mini jack,

Coaxial digital

Optical digital

Since we have an output terminal, you can connect your favorite amplifier and headphones and enjoy the movie with powerful sound!

● Supported digital audio formats:

DTS-HD / Dolby-True HD / AC 3 / DTS / DSD

● Supported analog audio format:

LPCM only

Easy to operate with remote control!

● This product comes with a dedicated remote control.

Even from a place away from the main body, it is possible to switch easily with the remote control!

Stable operation by gold plating process that can be used for long time and external power supply drive

● All HDMI boats are gold-plated, strong against rust, preventing signal degradation!

Attach a dedicated AC adapter.

Fast and stable data transmission realized by external power supply!

please note:

When using the ARC function, the output is digital only.

To output audio to an external amplifier with ARC, a TV compatible with ARC is required.

There is no function to convert 2ch audio to 5.1ch

SPDIF output can output 5.1CH audio such as Dolby Digital 5.1CH or DTS 5.1CH but, Dolby Digital Plus (Dolby Digital Plus) can not be output.

The warranty period is 12 months from the purchase date.

We would appreciate hesitate to contact us if you have any questions.

◆ Product Specifications ◆

Input terminal:

HDMI × 4 (IN4 / MHL terminals correspond to MHL function)

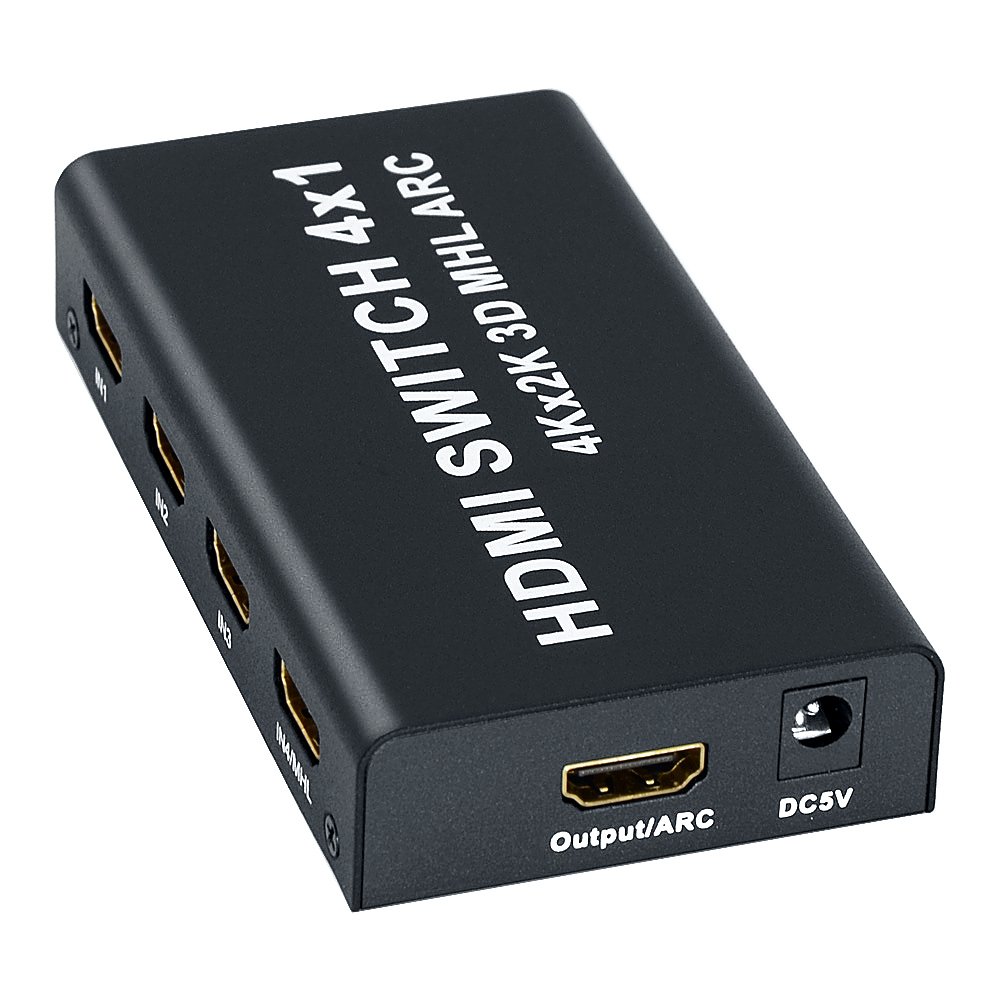

Output terminal:

HDMI × 1 (ARC compatible), optical digital × 1, coaxial digital × 1, 3.5 mm stereo jack (L / R) × 1

HDMI standard:

HDMI 1.4b

HDMI resolution:

4 K × 2 K @ 24/30 Hz, 480 to 1080 P @ 50/60 Hz, VGA to UXGA

Supported video color format:

24bit / deep color 30bit, 36bit

Supported digital audio format:

DTS-HD / Dolby-True HD / AC 3 / DTS / DSD

Supported analog audio format:

LPCM only

Maximum bandwidth:

300 MHz

Maximum baud rate:

10.2 Gbps

Power supply:

AC (50/60 Hz) 100 V to 240 V DC 5 V / 1A

Body size (approx):

60 × 114 × 22 mm

Body weight (approx):

170 g

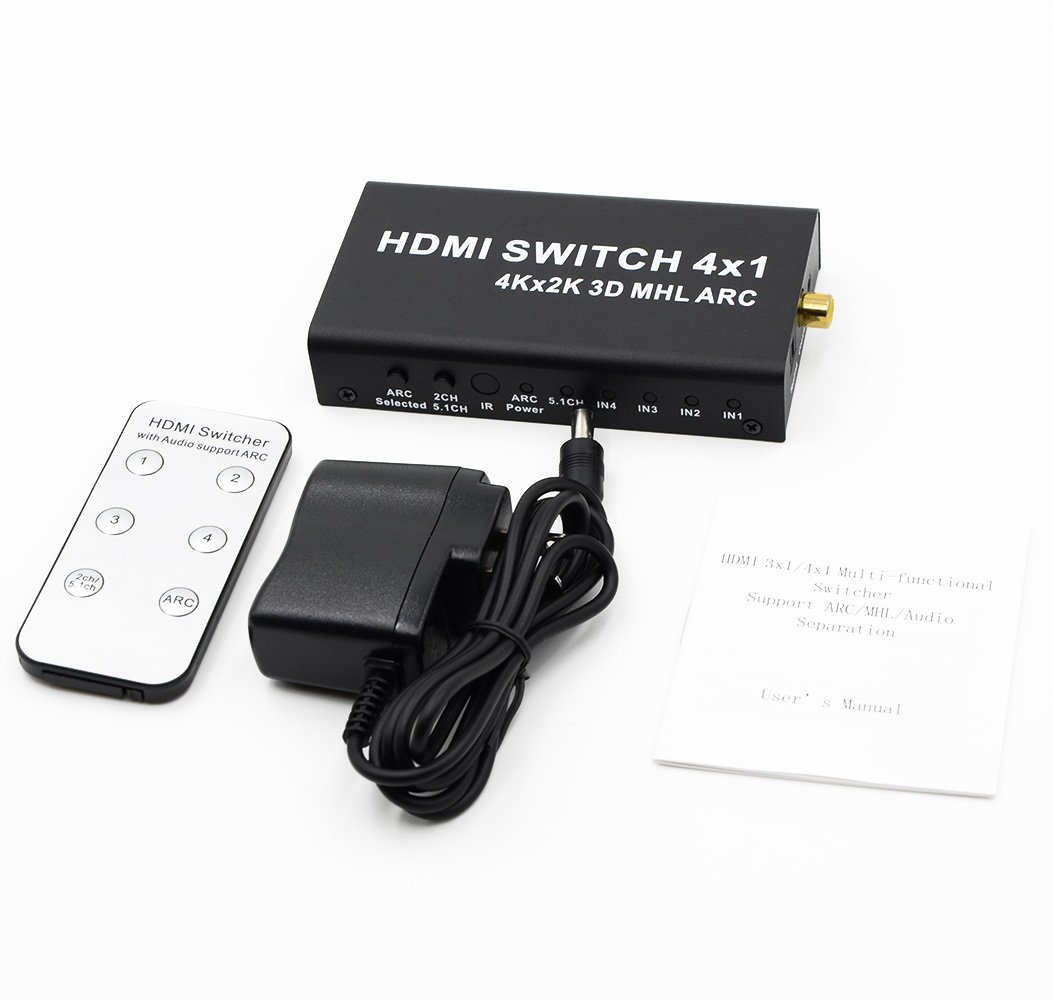

◆ Included Items ◆

1 x body

1 x AC adapter (PSE certified product)

1 x remote control (1 button battery included)

1 x Manual (English)

Features:

• Please enter model number Confirm this is compatible:

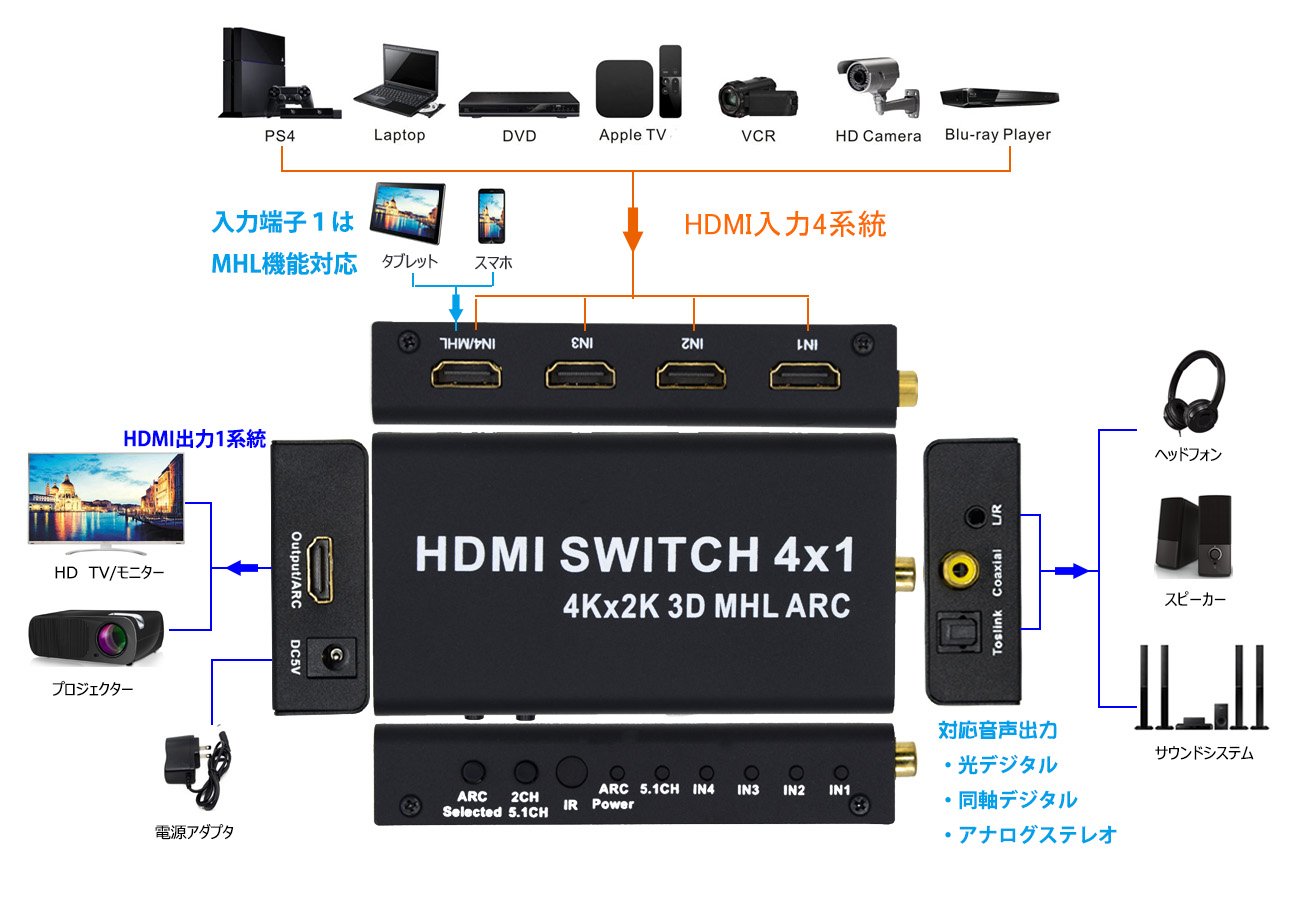

• You can connect to a home video game console, a Blu-ray player, a PC, a TV BOX, etc. that have four HDMI terminals as standard, and switch to HD TV for output.
• At the same time, it is possible to output sound from the sound system, speakers and headphones.
• The sound is clear, very comfortable HDMI life!
• ARC with CEC function, audio output compatible: Three types of coaxial digital / optical digital / 3.5 mm stereo mini audio output ports are installed.
• It is recommended for those who think that it is unsatisfactory only with speakers of visual equipment.
• From now on, it will change with 5.1 ch realistic presence feeling.
• Connect with MHL compatible, smartphone with MHL function, tablet with exclusive MHL to HDMI cable (requires purchase separately), you can enjoy images of smartphones and tablets, memories photos and games on big screen.
• With remote control, can switch from a remote place, it is very convenient.
• It corresponds to HDMI 1.4b.
• HDMI resolution: Up to 4 Kx 2 K @ 24/30 Hz, 1080 P @ 50/60 Hz.
• Corresponding color format: 24bit / deep color 30bit, 36bit.
• HDMI audio format: LPCM, Dolby True-HD, DTS-HD, Dobly Digital, DTS Digital.
• No loss to video / audio output, no delay.
• PS3 · PS4, XBOX, Fire TV, HDD recorder, Blu-ray, PC, HD DVD etc. HDMI output It is most suitable for switching equipment and audio separation.
• Supplied items: 1 x main unit, 1 x AC adapter (PSE approved item), 1 x remote control (1 button battery included), 1 x manual (English); warranty period is 12 months from purchase date.
• We would appreciate hesitate to contact us if you have any questions.

Product information:

Shipping Weight: 349 g

Package Dimensions: 6.10 x 13.21 x 18.21 cm
