Item Descriptions:

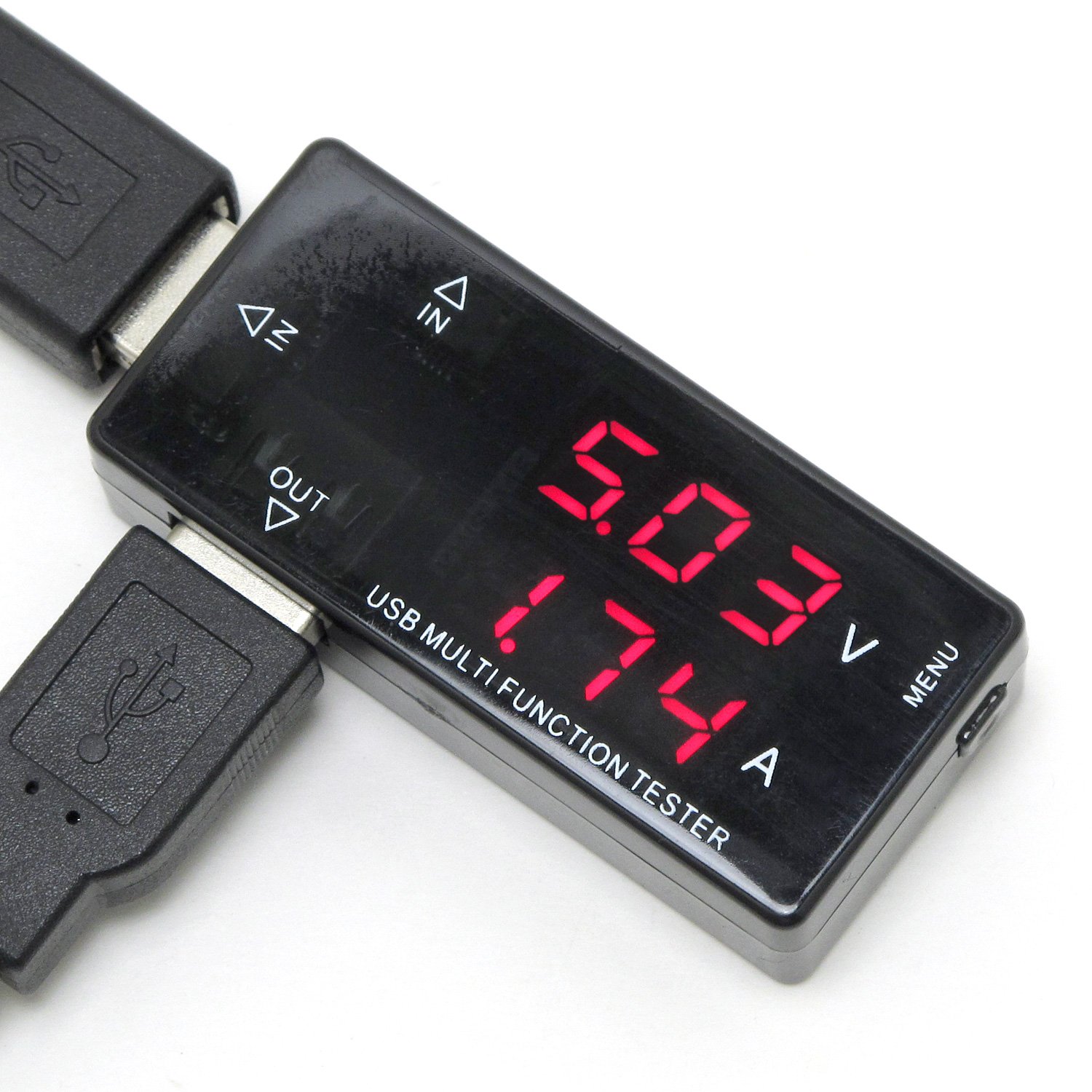

- It is a USB checker equipped with an unusual output OFF timer function.
● The buttons on the main unit switch between three display modes: [voltage / current value mode] → [total current value mode] → [output OFF timer mode].
● Integrated current value display function convenient for battery performance evaluation and charge check from photovoltaic power generation.
● Output OFF timer function that can be set up to 24 hours in 0.5 hour increments.
● It also has a micro USB input terminal in addition to the USB A terminal, it is also possible to measure the power supply directly connected to the cable.
● It corresponds to the new standard QC 3.0, QC 2.0 (rapid charge 2).
Voltage up to 30 V can be measured.
● If no current flows for 20 seconds, "OFF" is displayed on the screen and the output stops automatically.
specification
■ Measurement range: Voltage: 4.0 to 30.0 V (output stops at * 22 V or higher), current: ~ 3.0 A, maximum integrated current value: 99,999 mAh
■ Input terminal: USB A terminal Male · micro USB female
■ Output terminal: USB A terminal female
■ Display: 7 segment red LED, 3 digits 2 steps
■ Outer dimensions: 74 (W) x 28 (D) x 15 (H) mm
Weight ■: about 21 g
■ Accessories: Brief manual
Points to note
* Do not connect the equipment to the two input terminals at the same time.
※ When the current falls below about 0.03 A (30 mAh) for 20 seconds, the output stops.
* Do not use for important communication devices or devices that exchange large amounts of data.
* When using QC 2.0 and QC 3.0 functions, be sure to use all the corresponding devices and cables.
* Be sure to back up the various memory of the connected device before use.
※ Warranty period: 6 months after purchase
Features:
- Please enter model number Confirm this is compatible:
- It is a USB checker equipped with an unusual output OFF timer function.
- Three display modes of [voltage / current value mode] → [total current value mode] → [output OFF timer mode] are toggled by buttons on the main unit.
- Integrated current value display function convenient for battery performance evaluation and checking charge amount from photovoltaic power generation.
- It also has a micro USB input terminal in addition to the USB A terminal, it is also possible to measure the power supply directly connected to the cable.
- It corresponds to the new standard QC 3.0, QC 2.0 (rapid charge 2).
- Voltage up to 30 V can be measured.
Product information:
Shipping Weight: 27 g
Package Dimensions: 1.60 x 9.80 x 16.51 cm
