Product details of TB6612FNG Motor Driver Board Module Small Size High-performance forCar 3PI 1PCS

Dear Buyer,Thanks for You Purchase ,IfYou Are Satisfied with Our Product ,Could You Please Leave Us 5Star Feedback ? That's Very Important for Us ,Thank You Very Much.

Product Details:

TB6612FNG Motor Driver BoardModule

Condition: New

The TB6612FNG motor driver can controlup to two DC motors at a constant current of 1.2A (3.2A peak). Twoinput signals (IN1 and IN2) can be used to control the motor in oneof four function modes - CW, CCW, short-brake, and stop. The twomotor outputs (A and B) can be separately controlled, the speed ofeach motor is controlled via a PWM input signal with a frequency upto 100kHz. The STBY pin should be pulled high to take the motor outof standby mode

Logic supply voltage (VCC) can be inthe range of 2.7-5.5VDC, while the motor supply (VM) is limited toa maximum voltage of 15VDC. The output current is rated up to 1.2Aper channel (or up to 3.2A for a short, single pulse)

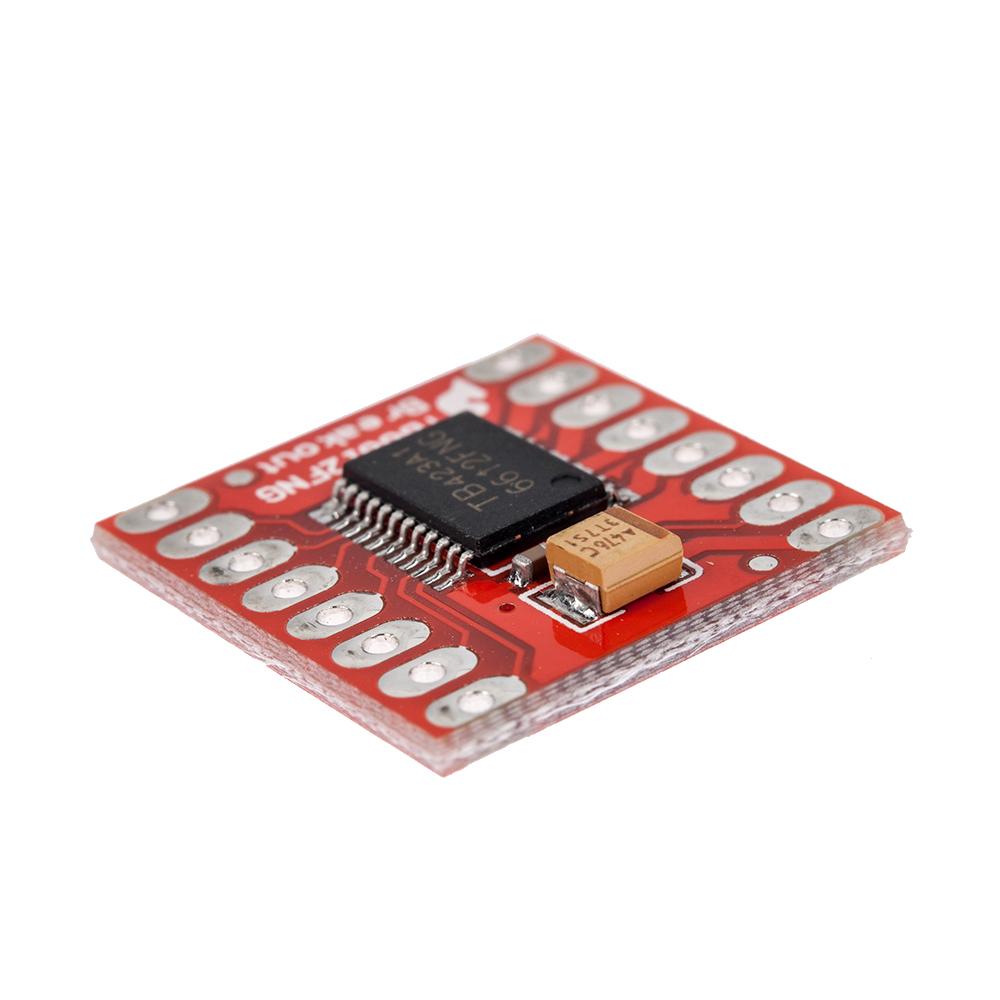

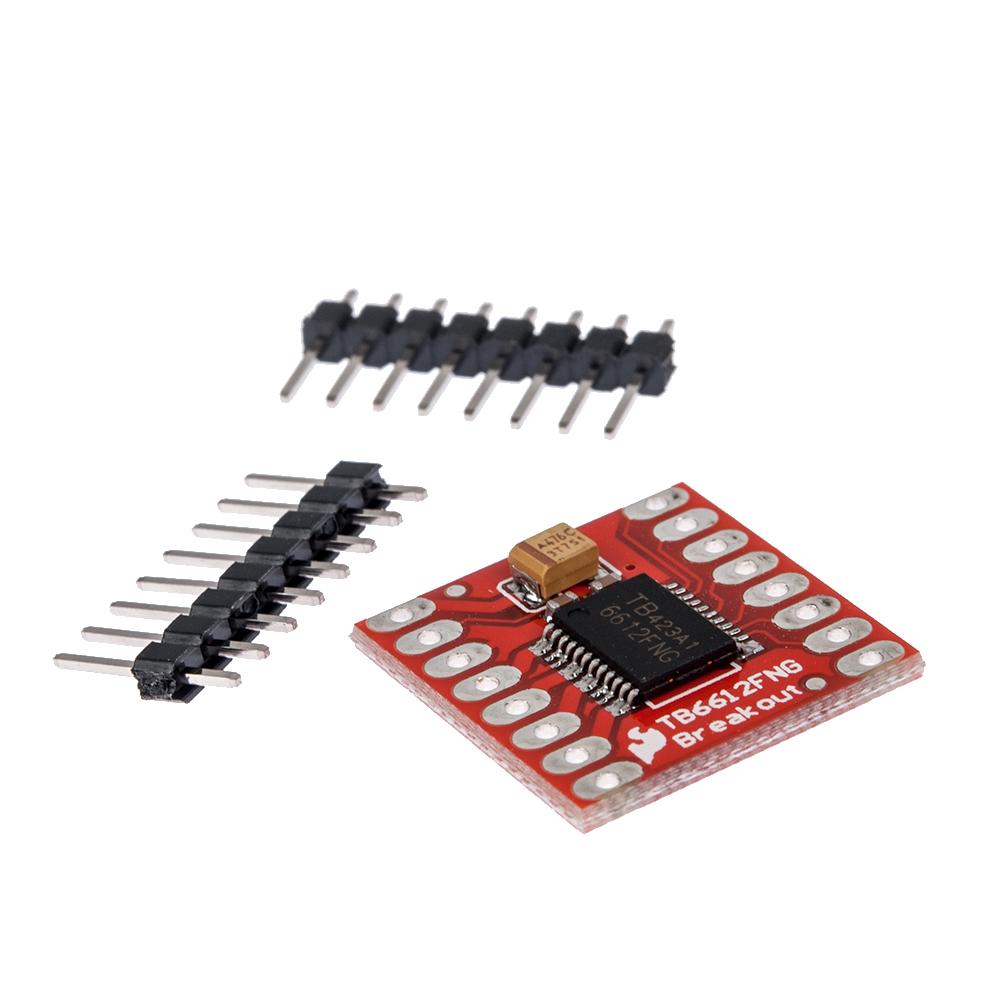

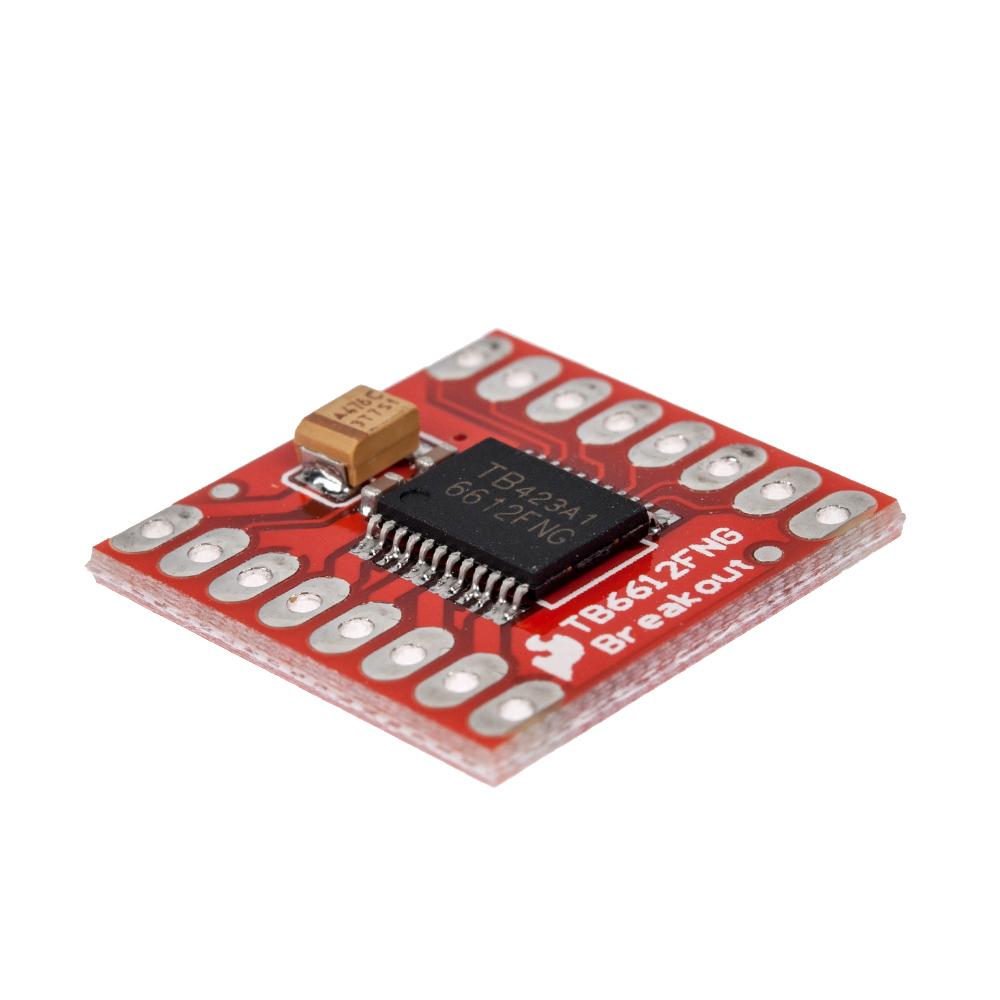

Board comes with all componentsinstalled as shown. Decoupling capacitors are included on bothsupply lines. All pins of the TB6612FNG are broken out to two 0.1"pitch headers; the pins are arranged such that input pins are onone side and output pins are on the other

Power supply voltage: VM=15V max,VCC=2.7-5.5V

Output current: Iout=1.2A(average) /3.2A (peak)

Standby control to save power

CW/CCW/short brake/stop motor controlmodes

Built-in thermal shutdown circuit andlow voltage detecting circuit

All pins of the TB6612FNG broken outto 0.1" spaced pins

Filtering capacitors on both supplylines

Color is shown as pictures

PLS NOTE that due to lighting effects,monitor"s brightness / contrast settings etc, there could be someslight differences in the color tone of the pictures and the actualitem!

Specifications of TB6612FNG Motor Driver Board Module Small Size High-performance forCar 3PI 1PCS

• 1 x TB6612FNG Motor Driver Board Module Small SizeHigh-performance for Car 3PI
