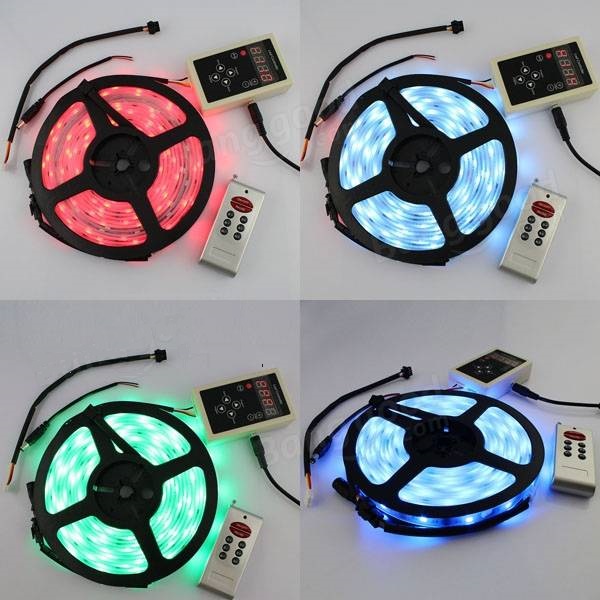

5M 5050 RGB 6803 IC Single LED Strip Light Waterproof IP67 12V DC

Stock Code: LED030

Description:

General Description:

This controller is design for led production which uses IC as driver, it is very useful for light box advertisement, stage light, house decorating, holidays, Christmas and so on.

Using SMD 5050 RGB mixed colors LEDs, which reduce power consumption. Lighting effects include many colors changes and dimming.

Also can be flashing, fading and chasing, Red, Blue, Green auto change.  You can use it to perform a dream colors lighting effects.

Specification:

LED Strip:

Suply Voltage: DC 12V

Consume Power: 7.6W / M

Light Color: RGB Multicolor

133 different changing patterns and changing speeds

Number Of LEDs: 150PCS

Standard Packing: 5m/Reel

Strip Backing: White

Waterproof Rating: IP67

Dimension: L5000mm  W14mm  H4mm

Controller (not included):

Supply voltage: DC 12V 5A (not Included)

Output: Tow group SPI signal

Length setup function

A lot of programs to chose(133 modes in total)

Memory function

With digital tube, left two reveal the mode, right two reveal the speed

Function of remote panels:

ON/OFF: ON/OFF button, it can open or close led anytime.

MODE: Play/pause button, pressing this button to pause, you can see the static affection of led.

S+: Speed quick button, the least number is 1

S-: Speed slow button, there are 100 step in all, the most number is 100

B+: Program choosing button, up direction there are 94 programs in all.

B-: Program choosing button, down direction.

M-: Reducing button,to reduce the IC NUMBER,the least number is 3.

Noted: You need a special led controller if you would like to purchase this 6803 IC Single LED Strip

Package Included:

1 x 5 Meter Dream Color Waterproof LED Strip
