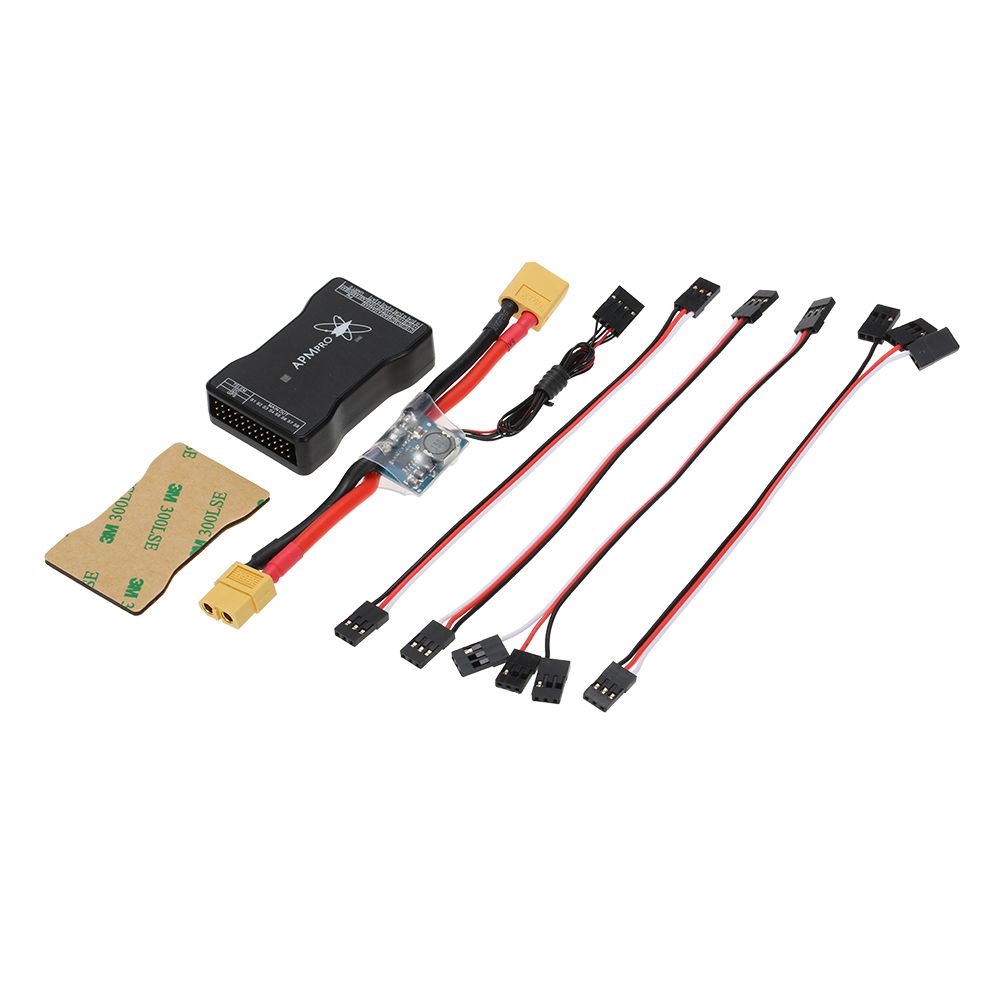

This brand new APMPRO is developed on the basis of APM 2.6， it has all the functions of APM 2.6， but optimized the structure and interface which make it lighter and smaller. And upgraded electrical components also features higher quality and performance. This is a perfect mutifunctional open source flight controller for multirotor， helicopter and fixed-wing airplane.<br />This offer is equipped with a XT60 power module to provide your APMPRO with clean power from a Li-Po battery as well as current consumption and battery voltage measurements， all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 6S LiPo battery. The Power Module comes completely assembled with Deans connectors， and wrapped in shrink tubing for protection.<div style="white-space: pre-wrap; text-align: left; line-height: 1.875; font-size: 14px;"><img alt="" src="//www.guphotos.com/images/uploads/RM6976-3.jpg" style="width: 800px; height: 800px;" /><br /><img alt="" src="//www.guphotos.com/images/uploads/RM6976-1.jpg" style="width: 800px; height: 800px;" /><br /><img alt="" src="//www.guphotos.com/images/uploads/RM6976-2.jpg" style="width: 800px; height: 800px;" /><br /><img alt="" src="//www.guphotos.com/images/uploads/RM6976-4.jpg" style="width: 800px; height: 800px;" /></div><div style="white-space: pre-wrap; line-height: 1.5; font-size: 14px;"></div>Features:<br />Using large current LDO instead of previous version 3.3V LDO to support output 500mA power.<br />Change the previous diodes to PIX PMEG2005 diodes and integrate the two-way output power<br />22UF/16V capacity was added into 5V module to ensure stable power of main controller (2560 part).<br />All ports have mounted on both ends and 2.54 standard Dupont connectors are adopted to create stability.<br />Two pieces RGB led lights have replaced the PPM light， looks super flashing and dazzling.<br />8-way PWM input signal has been simplified by 4pcs servo cable to realize signal input.<br /><br />Specifications:<br />Max input voltage: 28V<br />Max current sensing: 90A<br />Voltage and current measurement configured for 5V ADC<br />Switching regulator outputs 5.3V and 3A max<br />6-pos DF13 cable plugs directly to APM 2.5&#39;s &#39;PM&#39; connector<br />Dimension: 60 * 38 * 14mm<br />Weight: 26.6g<br /><br />Package information:<br />Package size: 16 * 11 * 2cm / 6.3 * 4.3 * 0.8in<br />Package weight: 77g / 2.7oz<br />Polybag package<br /><br />Package list:<br />1 * Mini APMPRO flight controller<br />1 * Power module<br />4 * Cable<br />1 * Double sided tape<br><img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-M9ma.jpg" /><br>$$<img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-uFgp.jpg" /><br>$$<img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-6zcZ.jpg" /><br>$$<img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-y2OL.jpg" /><br>$$<img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-6gaF.jpg" /><br>$$<img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-gOlY.jpg" /><br>$$<img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-VLlh.jpg" /><br>$$<img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-1U0Z.jpg" /><br>$$<img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-tQtv.jpg" /><br>$$<img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-wBDj.jpg" /><br>$$<img src="//img.tomtop.com/product/xy/2000/2000/p/gu1/R/6/RM6976/RM6976-1-1d6c-Ztql.jpg" /><br>
