Item Descriptions:

Product introduction

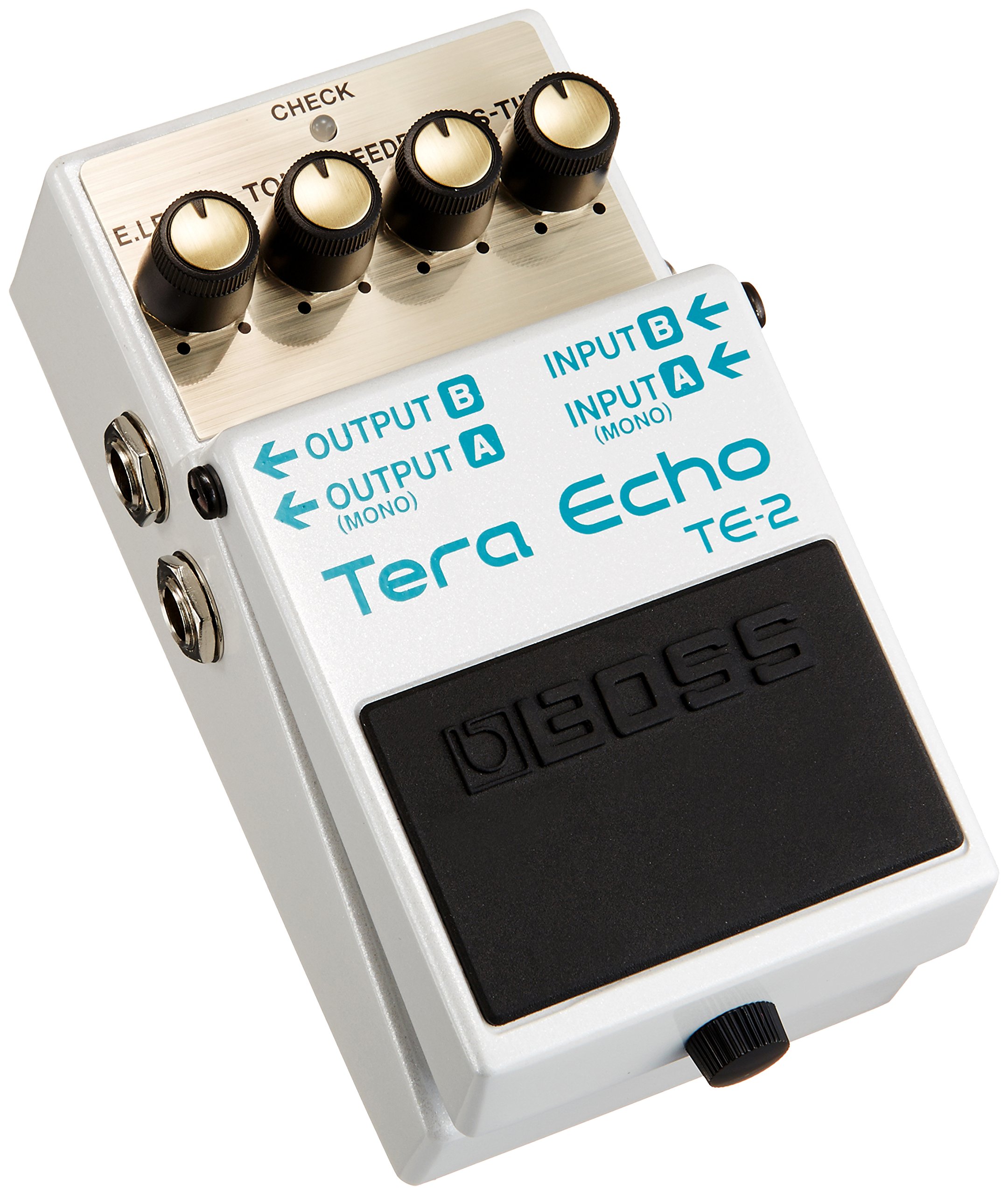

A state-of-the-art compact pedal based on Roland's latest digital technology "MDP" that creates a space-based effect that is different from both delay and reverb.

From Amazon

A state-of-the-art compact pedal based on Roland's latest digital technology "MDP" that creates a space-based effect that is different from both delay and reverb.

TE-2 uses Roland's proprietary technology "MDP (Multi-Dimensional Processing), an innovative compact pedal that does not interfere with the original sound while creating a new sense of expansion and movement, not reverberation or delay

.

Furthermore, it corresponds to stereo input and output, it is possible to obtain rich echo effect.

Creates unexperienced spatial sound different from reverb and delay.

TE - 2 uses Roland 's latest digital technology "MDP" to create unprecedented spread of sound and spatial reverberation, unlike reverb and delay.

Realize multidimensional processing in real time, create milder echo effects to distinctive characteristic reverberation according to the nuances of the performance, as if it were aurora-like freaky sound.

A comfortable sound effect that the original sound can not be buried even if it is applied deeply can be obtained.

Simple control makes it possible to obtain intuitive and versatile effects.

TE - 2 can create a variety of sounds with a simple operation with four knobs, such as the FEEDBACK knob that adjusts the attenuation degree of the effect, the S - TIME knob that adjusts the length of the effect sound, and so on.

While holding down the pedal, it also has a hold function to sustain the effect sound.

Furthermore, it corresponds also to stereo input and output, and can produce a more expanded three-dimensional sound.

■ How each knob works

● E. LEVEL (effect level) knob

Adjust the volume of the effect sound.

Rotating it to the right increases the effect sound.

● TONE (Tone) Knob

Adjust the brightness of the effect sound.

The more it turns to the right, the brighter the sound will be.

● FEEDBACK (Feedback) Knob

Adjust the attenuation of the effect sound.

The more it turns to the right, the slower the sound becomes.

● S-TIME (spread time) knob

Adjust the length of the effect sound.

Turning it to the right increases it.

Sample setting

Standard Tera Echo

Space arpeggio

Dark long plate

What is MDP (Multi-Dimensional Processing)

Analyze the input signal from various angles, instantly break down into each element.

Roland's proprietary technology that achieves unprecedented expressive power by dynamically changing multidimensional effect processing suitable for each element at the same time and according to the input signal.

Main Specifications

Specified input level

-20 dBu

Input impedance

1 MΩ

Specified output level

-20 dBu

Output impedance

1 kΩ

Recommended load impedance

10 kΩ or more

Control

Pedal switch, E. LEVEL knob, TONE knob, FEEDBACK knob, S - TIME (spread time) knob

indicator

CHECK indicator (hold indication, combined with battery check)

Connecting terminal

INPUT - A (MONO) terminal, INPUT - B terminal, OUTPUT - A (MONO) terminal, OUTPUT - B terminal, AC adapter terminal (DC 9 V)

Power supply

Alkaline battery (9 V type) or manganese battery (9 V type), AC adapter (sold separately)

Current consumption

53 mA

Lifetime of battery during continuous use (varies depending on usage condition)

Alkaline battery = about 6 hours, manganese battery = about 1.5 hours

accessories

Warranty card, instruction manual, leaflet (safety precautions, usage notes, service window), alkaline battery (9 V type); connected to the main body

Optional items

AC adapter (PSA - 100)

External dimensions / mass

Width (W)

73 mm

Depth (D)

129 mm

Height (H)

59 mm

mass

435 g

Features:

• Please enter model number Confirm this is compatible:
• Space system effect of new sense different from both delay and reverb

Product information:

Shipping Weight: 544 g

Package Dimensions: 6.10 x 9.91 x 15.24 cm
